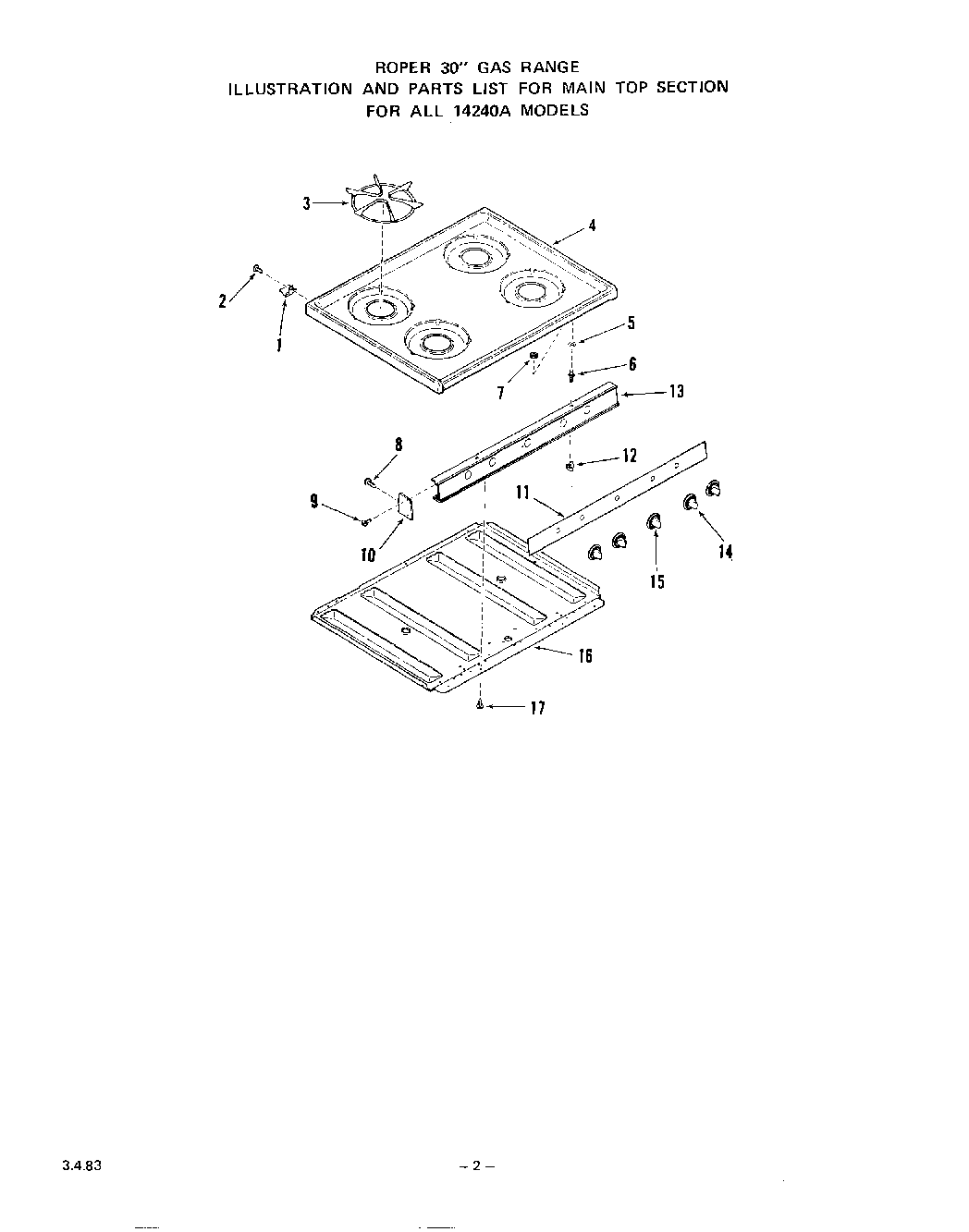

1424W0A 03 – BURNER

Products

Position	Product
1	Retainer-Main Top (2 Required)
2	Screw 10-32×7/16“
3	Top Grate (4 Required)
4	Main Top (Coffee)
4	Main Top (Avocado)
4	Golden Wheat
4	Almond
4	White
5	Washer
6	Strike-Main Top (2 Required)
7	Keps Nut 8-32
8	Screw 10 – 32 x 17/32“
9	Screw 6-32×3/8“
10	End Cap-Manifold Panel (Right)
10	End Cap-Manifold Panel (Left)
11	Trim-Manifold Panel
12	Catch-Main Top Strike (2 Required)
13	Manifold Panel
14	All 14630A Models
15	Knob-Thermostat
16	Seal, Foam (2)
17	Screw 10-32×3/8“
