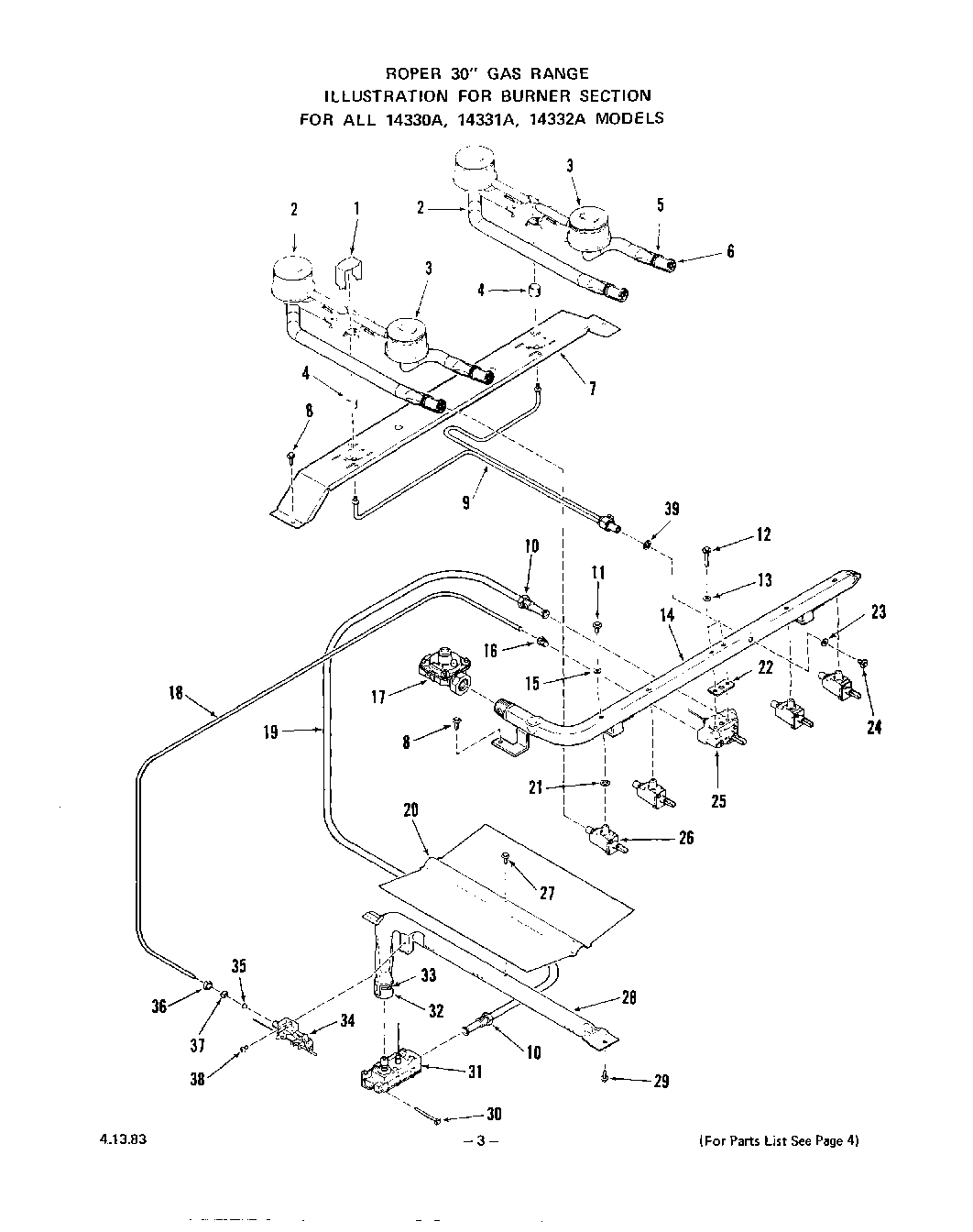

1433^2A 04 – BODY

Products

Position	Product
1	Top Pilot Shield (3 Req)
2	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
3	Front Top Burner-Lt. or Rt. (Inc`s 64 & 65)
4	Pilot Cup (3 Req)
5	Adjustment Screw-Air Shutter
6	Air Shutter
7	Support-Top Burner
8	WP112432 Whirlpool Nut Assembly
9	Pilot w/Filter
10	Inverted Nut 3/8“
11	Mounting Screw (Inc`s 86)
12	Mounting Screw (2 Req. for 114)
13	Gasket (For 83)
14	Manifold Pipe
15	Gasket (For 81)
16	Loxit Nut 3/16“
17	Pressure Regulator
18	Tubing 3/16“
19	Tubing 3/8“
20	Baffle – Oven Burner
21	Silicone Rubber Gasket
22	Silicone Rubber Gasket
23	Gasket
24	Mounting Screw 5/16-24
25	Oven Thermostat
26	WPL 318479
28	WPL 319255
29	WPL 316365
30	Screw 10-32 x 2“
31	Control Valve (Inc`s 34, 35)
32	Air Shutter
33	Adjustment Screw -Air Shutter
34	Pilot Only (Inc`s 90)
35	Orifice Cup Only (For 94)
36	Compression Nut 3/16“
37	Compression Ball Sleeve 3/16“
38	Screw 10-24×1/4“
39	Gasket
