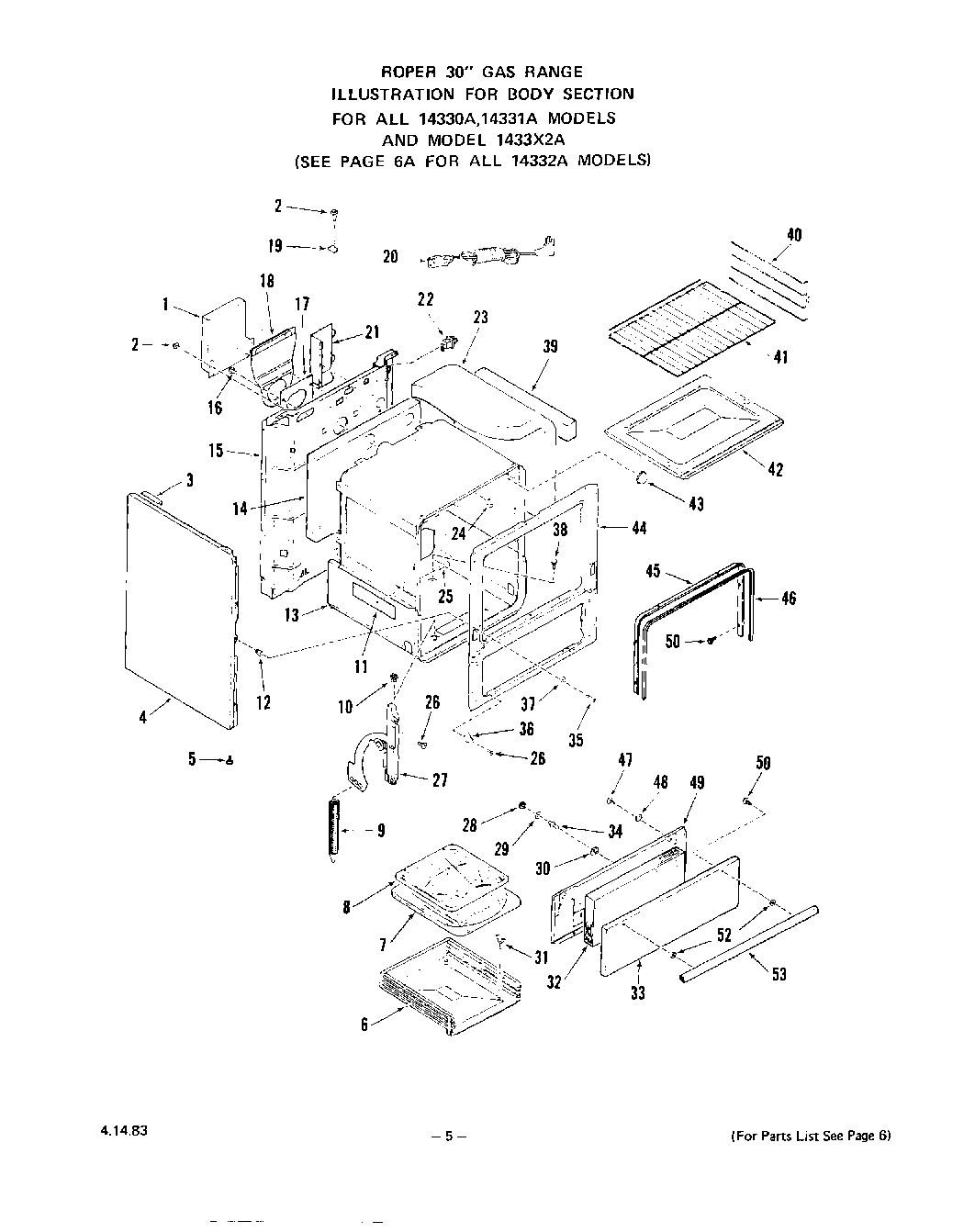

| 1 | Shield - Flue Deflector |
| 2 | WP112432 Whirlpool Nut Assembly |
| 3 | Spacer-Main Top |
| 4 | White-Left |
| 4 | White-Right |
| 4 | Wheat-Right |
| 4 | Almond-Left |
| 4 | Wheat-Left |
| 4 | Almond-Right |
| 4 | Black-Right |
| 4 | Black-Left |
| 5 | Leg Leveler (4 Required) |
| 6 | Broiler Drawer |
| 7 | Broiler Pan |
| 8 | Broiler Pan Grid |
| 9 | Spring-Oven Door (Lt. or Rt.) |
| 10 | Nut-Retainer (2 Required) |
| 11 | Retainer-Insulation (Rt. or Lt.) |
| 12 | Grommet - Screw (8 Req.) |
| 13 | Oven Body |
| 14 | Insulation - Oven Back |
| 15 | Main Back |
| 16 | Screw 10 - 32 x 17/32`` |
| 17 | Gasket-Flue Deflector |
| 18 | Flue Deflector |
| 19 | Clip |
| 20 | Range Service Cord |
| 21 | Wire Shield |
| 22 | Disconnect |
| 23 | Insulation - Oven Top & Sides (1 Piece) |
| 24 | Thermostat Bulb Clip (2 Required) |
| 25 | Dart-Button Head (2 Required) |
| 26 | Screw 10-32 x 5/8`` |
| 27 | Left |
| 27 | Right |
| 28 | Keps Nut 8-32 |
| 29 | Washer |
| 30 | Catch-Broiler Door Strike |
| 31 | Thumbscrew-Rt. or Lt. |
| 33 | Front Panel-Broiler Door |
| 34 | Strike-Broiler Door |
| 35 | WP303896 Whirlpool High Limit Thermostat |
| 36 | Hinge-Broiler Door (Lt. or Rt.) |
| 37 | Washer |
| 38 | Shoulder Screw 10-32x1/2`` |
| 39 | W10820036 Whirlpool Door Switch Kit |
| 40 | WPL 305409 |
| 41 | WPL 305408 |
| 42 | WPL 296070 |
| 43 | WPL 101063 |
| 44 | WPL 323357 |
| 45 | WPL 296103 |
| 46 | WPL 296102 |
| 47 | Screw 10-32x3/8`` |
| 48 | Lockwasher |
| 49 | WPL 302267 |
| 50 | WPL 316365 |
| 52 | spacer-handle |
| 53 | Handle-Broiler Door |
| 54 | Support-Flue Deflector |
