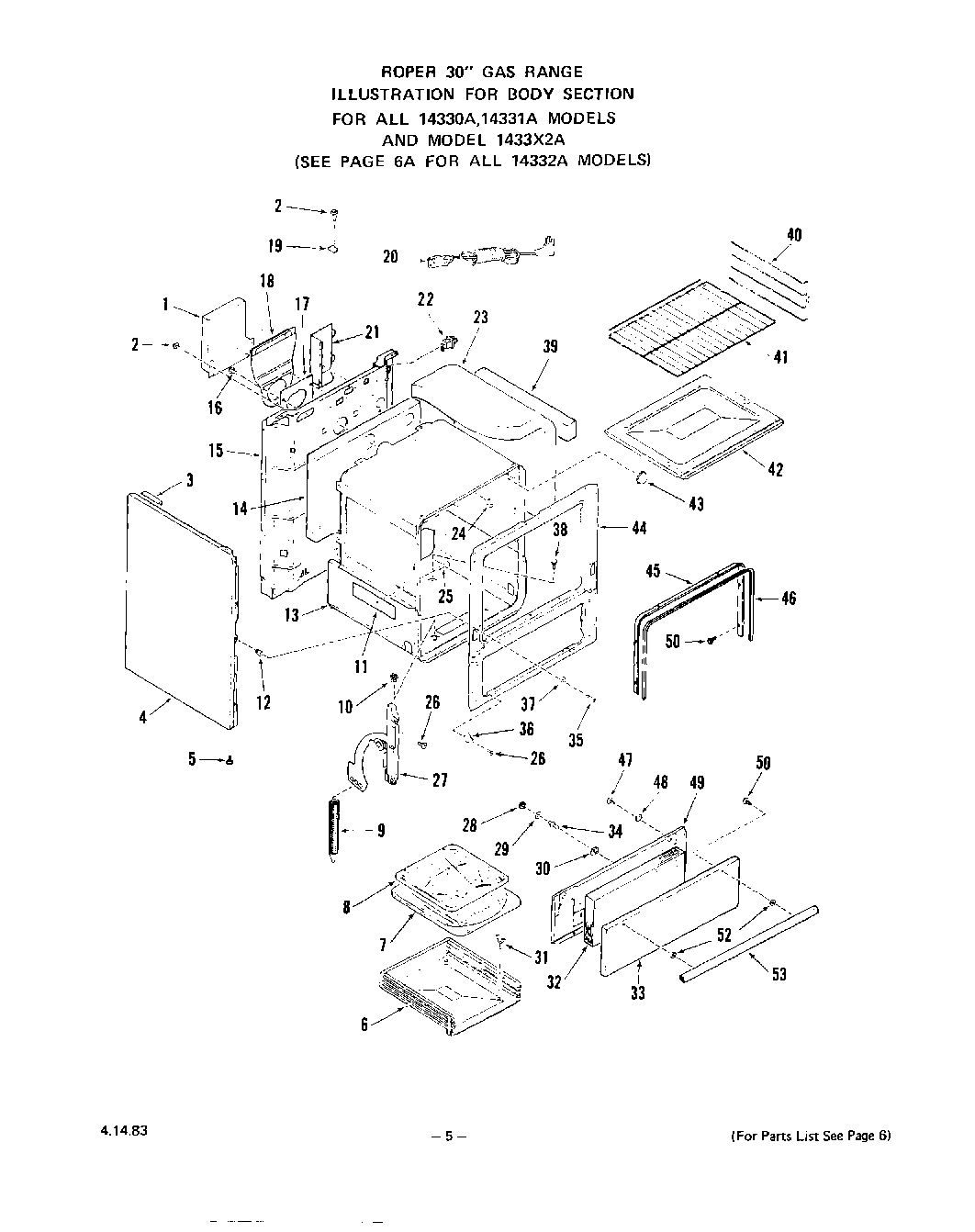

1433W0A 05 – SECTION

Products

Position	Product
1	Shield – Flue Deflector
2	WP112432 Whirlpool Nut Assembly
3	Spacer-Main Top
4	White-Left
4	White-Right
4	Wheat-Right
4	Almond-Left
4	Wheat-Left
4	Almond-Right
4	Black-Right
4	Black-Left
5	Leg Leveler (4 Required)
6	Broiler Drawer
7	Broiler Pan
8	Broiler Pan Grid
9	Spring-Oven Door (Lt. or Rt.)
10	Nut-Retainer (2 Required)
11	Retainer-Insulation (Rt. or Lt.)
12	Grommet – Screw (8 Req.)
13	Oven Body
14	Insulation – Oven Back
15	Main Back
16	Screw 10 – 32 x 17/32“
17	Gasket-Flue Deflector
18	Flue Deflector
19	Clip
20	Range Service Cord
21	Wire Shield
22	Disconnect
23	Insulation – Oven Top & Sides (1 Piece)
24	Thermostat Bulb Clip (2 Required)
25	Dart-Button Head (2 Required)
26	Screw 10-32 x 5/8“
27	Left
27	Right
28	Keps Nut 8-32
29	Washer
30	Catch-Broiler Door Strike
31	Thumbscrew-Rt. or Lt.
33	Front Panel-Broiler Door
34	Strike-Broiler Door
35	WP303896 Whirlpool High Limit Thermostat
36	Hinge-Broiler Door (Lt. or Rt.)
37	Washer
38	Shoulder Screw 10-32×1/2“
39	W10820036 Whirlpool Door Switch Kit
40	WPL 305409
41	WPL 305408
42	WPL 296070
43	WPL 101063
44	WPL 323357
45	WPL 296103
46	WPL 296102
47	Screw 10-32×3/8“
48	Lockwasher
49	WPL 302267
50	WPL 316365
52	spacer-handle
53	Handle-Broiler Door
54	Support-Flue Deflector
