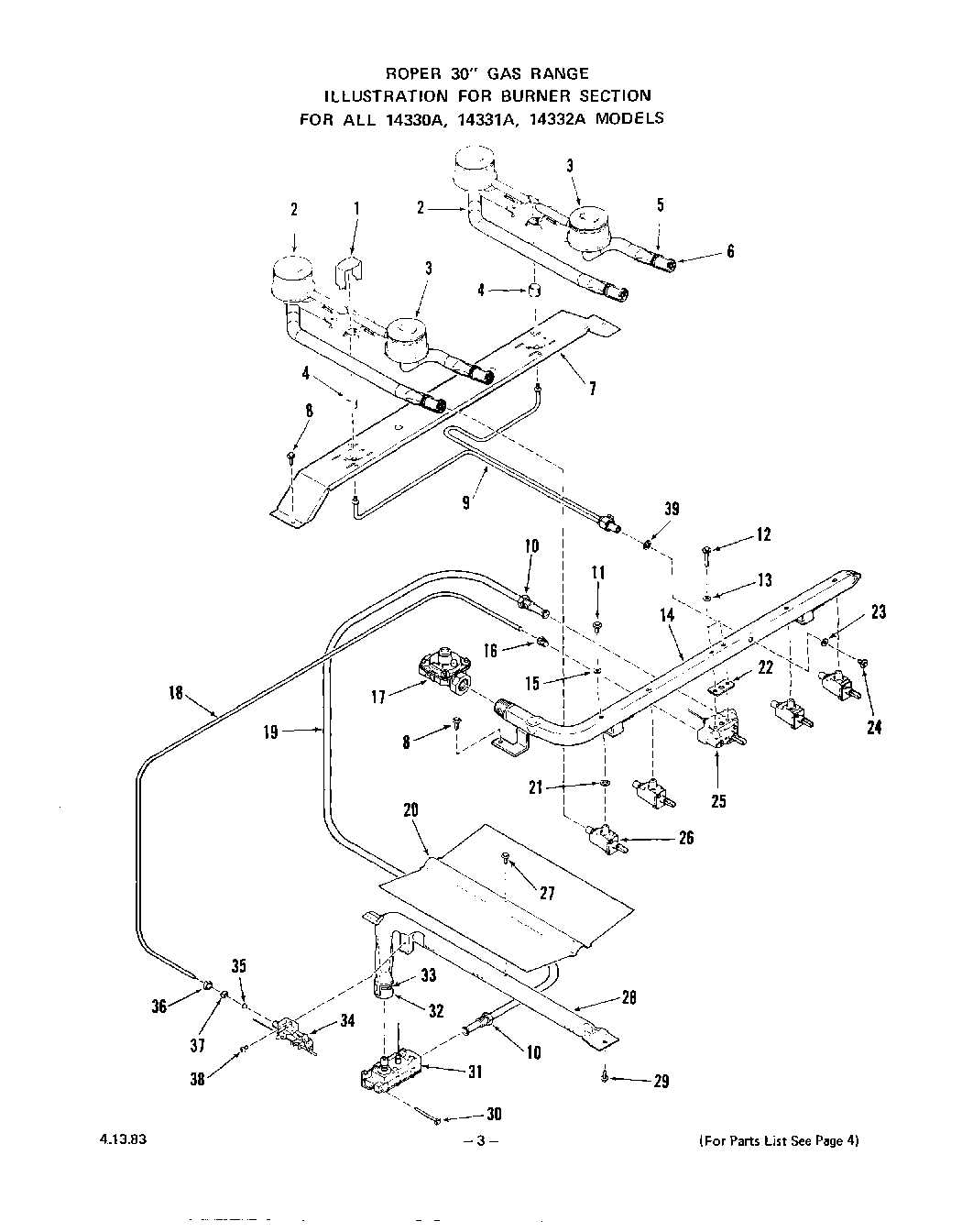

| 1 | Top Pilot Shield (3 Req) |
| 2 | Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65) |
| 3 | Front Top Burner-Lt. or Rt. (Inc`s 64 & 65) |
| 4 | Pilot Cup (3 Req) |
| 5 | Adjustment Screw-Air Shutter |
| 6 | Air Shutter |
| 7 | Support-Top Burner |
| 8 | WP112432 Whirlpool Nut Assembly |
| 9 | Pilot w/Filter |
| 10 | Inverted Nut 3/8`` |
| 11 | Mounting Screw (Inc`s 86) |
| 12 | Mounting Screw (2 Req. for 114) |
| 13 | Gasket (For 83) |
| 14 | Manifold Pipe |
| 15 | Gasket (For 81) |
| 16 | Loxit Nut 3/16`` |
| 17 | Pressure Regulator |
| 18 | Tubing 3/16`` |
| 19 | Tubing 3/8`` |
| 20 | Baffle - Oven Burner |
| 21 | Silicone Rubber Gasket |
| 22 | Silicone Rubber Gasket |
| 23 | Gasket |
| 24 | Mounting Screw 5/16-24 |
| 25 | Oven Thermostat |
| 26 | WPL 318479 |
| 28 | WPL 319255 |
| 29 | WPL 316365 |
| 30 | Screw 10-32 x 2`` |
| 31 | Control Valve (Inc`s 34, 35) |
| 32 | Air Shutter |
| 33 | Adjustment Screw -Air Shutter |
| 34 | Pilot Only (Inc`s 90) |
| 35 | Orifice Cup Only (For 94) |
| 36 | Compression Nut 3/16`` |
| 37 | Compression Ball Sleeve 3/16`` |
| 38 | Screw 10-24x1/4`` |
| 39 | Gasket |
