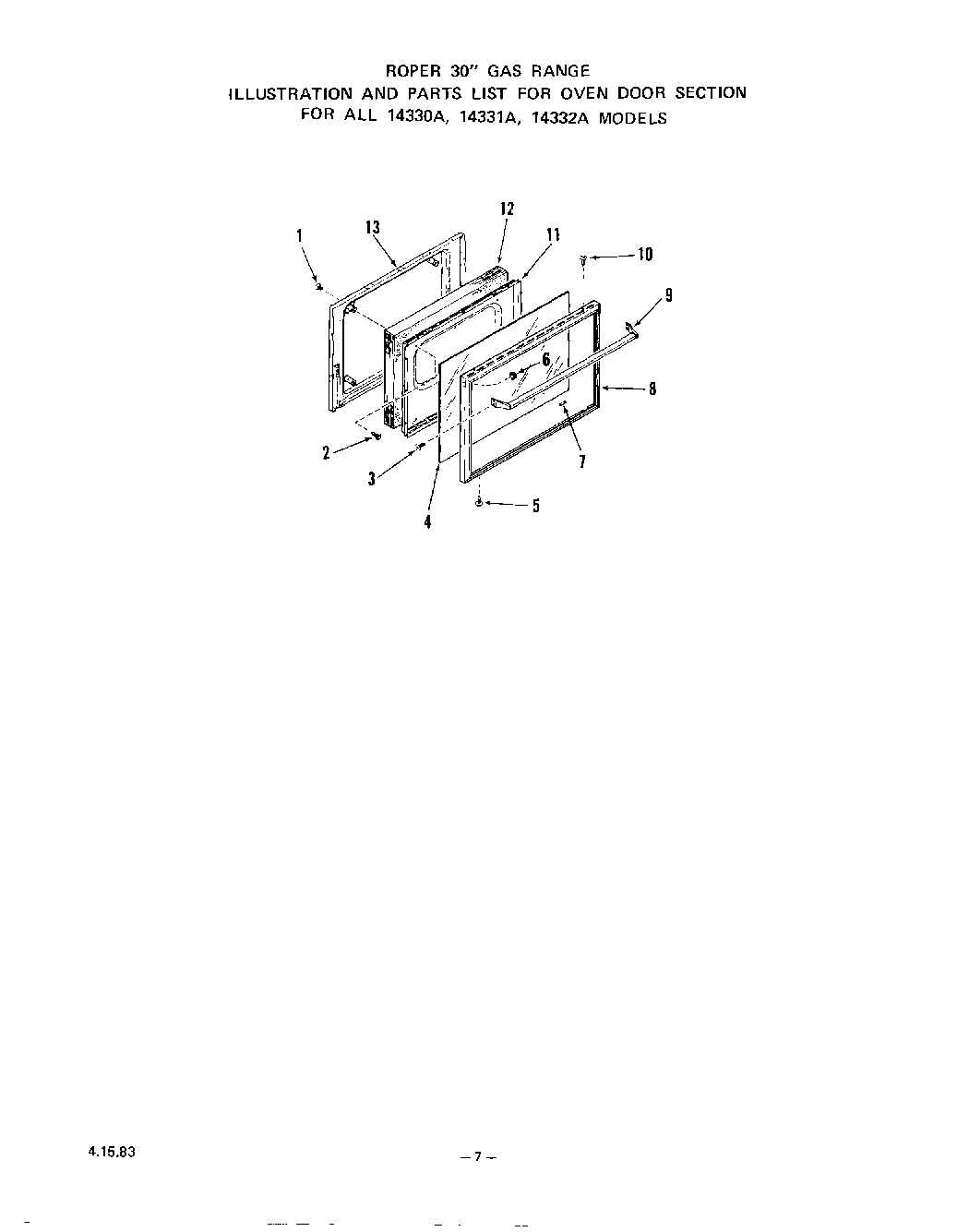

1433W2A 07 – OVEN DOOR

Products

Position	Product
	xParts Not Shown On Illustration
1	WPY04100165 Whirlpool Surface Element
2	WP112432 Whirlpool Nut Assembly
3	Screw 8-32 x 1/2“
4	Glass-Oven Door
5	Screw 10-32 x 1/2“
6	Keps Nut 8-32
7	Cushion-Door Glass
8	Frame-Door Glass
9	Handle-Oven Door
10	Screw 6Ax3/8“
11	Retainer-Oven Door Insulation
12	Insulation-Oven Door
13	Lining-Oven Door
13	Flue Collar Kit (Optional)
13	Gas Use & Care Guide
13	xOperating Guide
13	xInstallation & Reference Guide
13	xRepair Parts Manual
