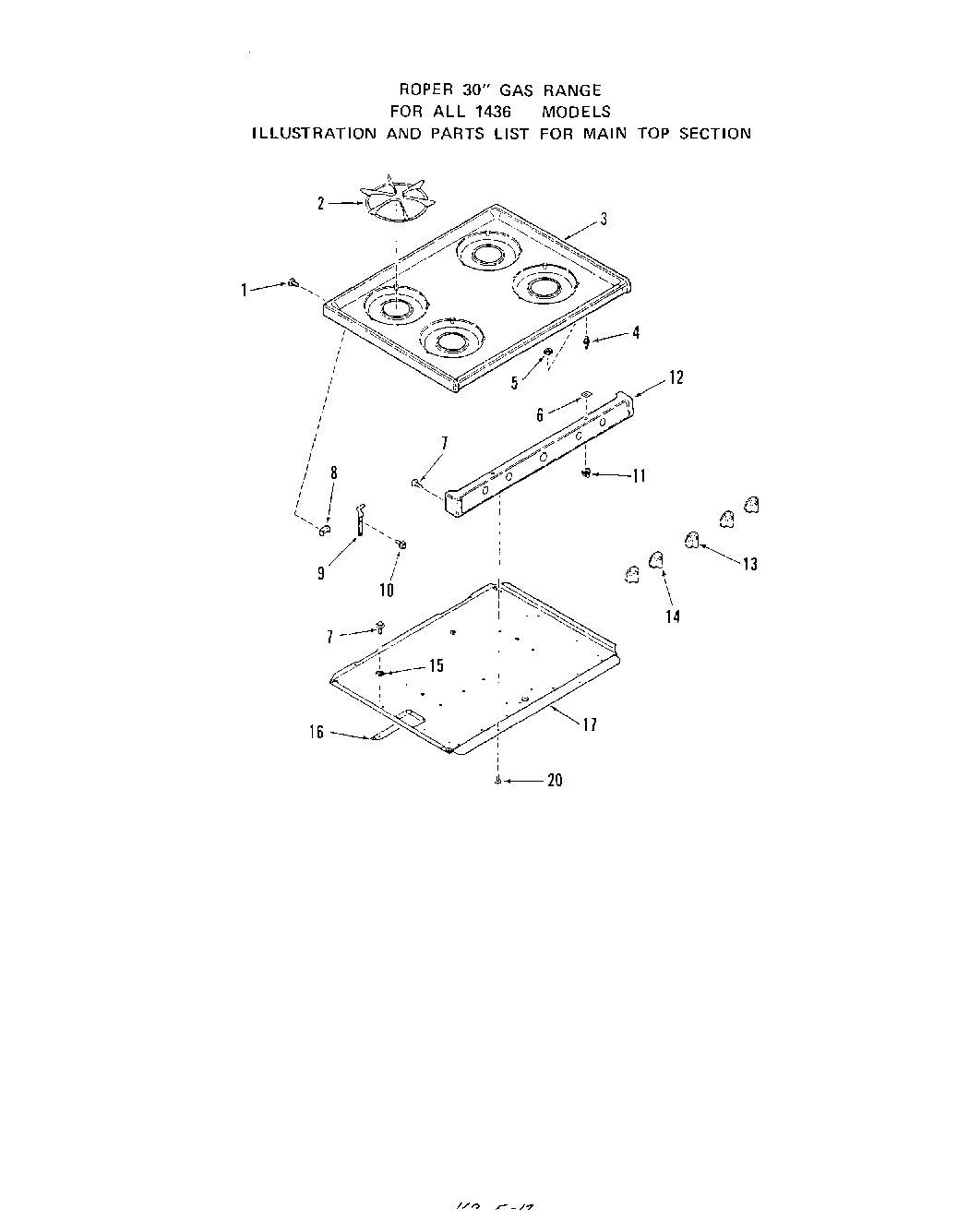

1436^0A 03 – BURNER

Products

Position	Product
1	Screw-10-32×1/2“
2	Top Grate (4 Required)
3	Almond
3	White
4	Strike-Main Top (2 Required)
5	Keps Nut 8-32
6	Washer
7	Screw 10-16×7/16“
8	bracket-main top hinge (lt. or rt.)
9	Right
9	Left
10	WPL 321162
11	Catch-Main Top Strike (2 Required)
12	Panel-Manifold (White)
12	Manifold Panel (Almond)
13	Knob-Thermostat
14	Knob-Gas Valve (4 Req)
15	Washer
16	Rear Stiffener-Burner Box Bottom
16	Front Stiffener-Burner Box Bottom
17	Bottom-Burner Box (14451A Models)
17	Bottom-Burner Box (14450A Models)
20	Screw 10-32×3/8“
