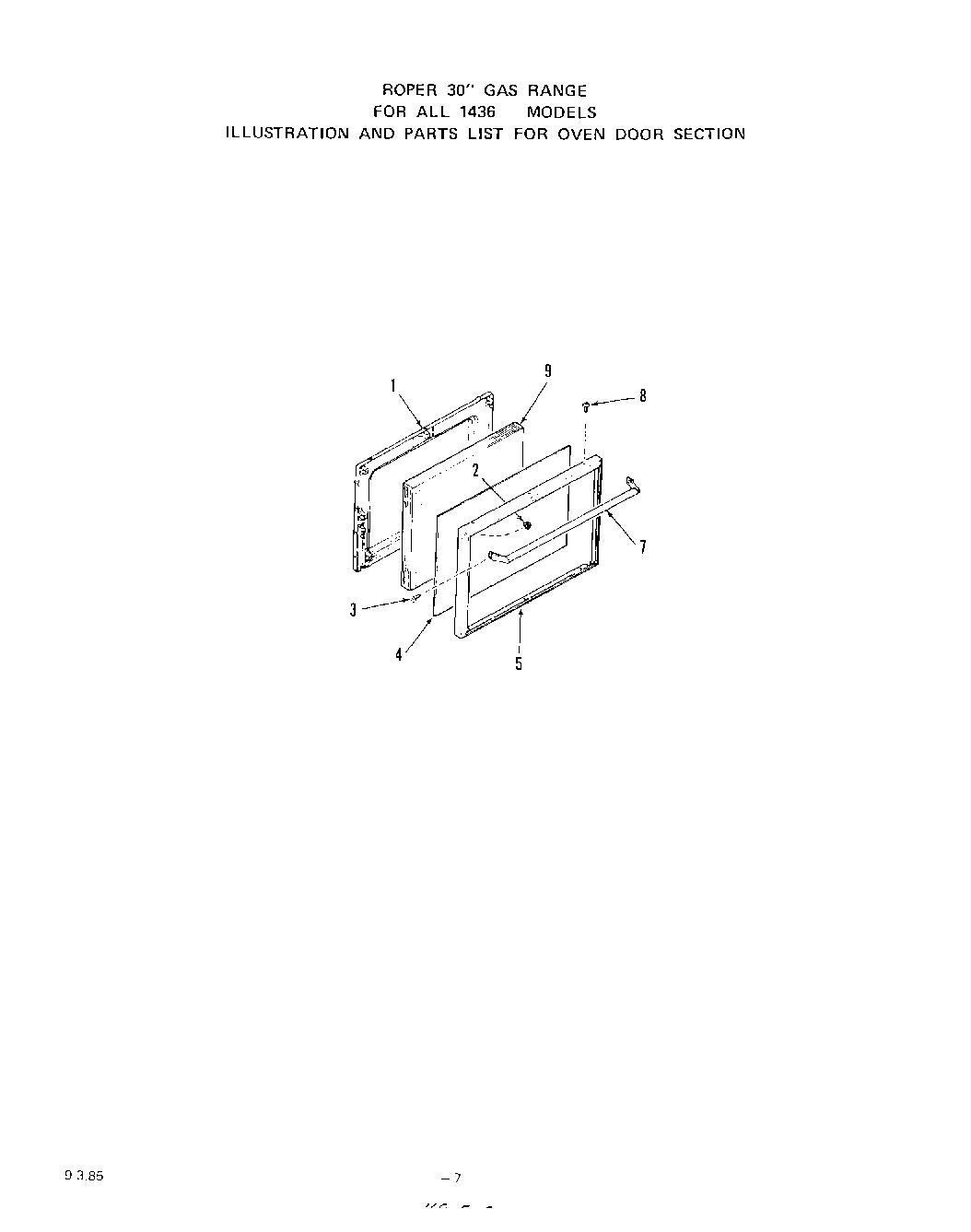

1436^0A 07 – OVEN DOOR

Products

Position	Product
	xParts Not Shown On Illustration
1	Lining-Oven Door (14360A Models)
1	22041A & 2A Models
2	Keps Nut 8-32
3	Screw 8-32 x 1/2“
4	Glass-Oven Door
5	Frame-Oven Door
7	Handle-Oven Door
8	Screw-10-32×1/2“
9	Switches – Gas Valve
9	xRepair Parts List
9	xOperating Guide
9	xInstallation Guide
9	Gas Use & Care Guide
9	Wire Harness (Main)
9	Insulation
9	xHarness-Wire
