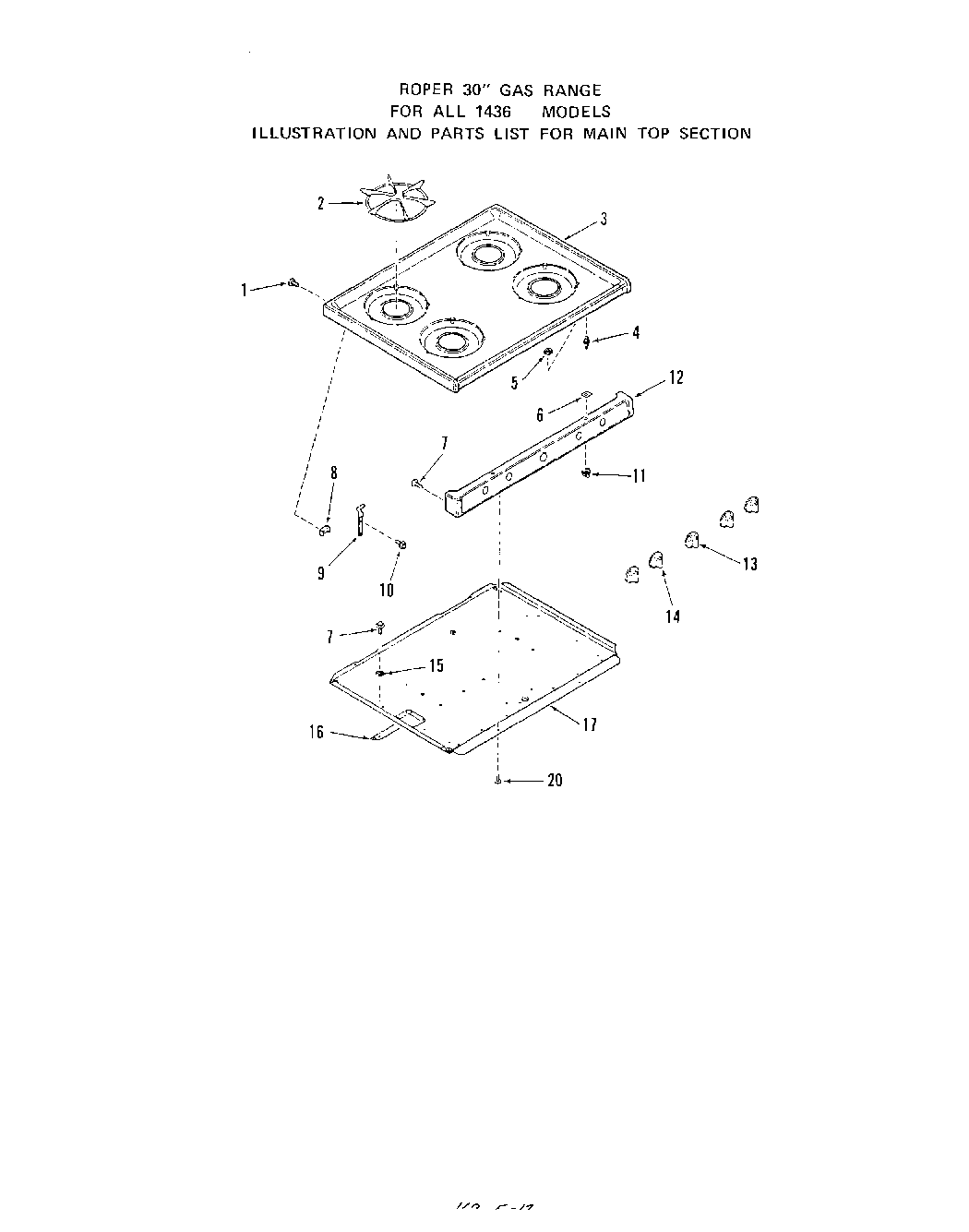

| 1 | Screw-10-32x1/2`` |
| 2 | Top Grate (4 Required) |
| 3 | Almond |
| 3 | White |
| 4 | Strike-Main Top (2 Required) |
| 5 | Keps Nut 8-32 |
| 6 | Washer |
| 7 | Screw 10-16x7/16`` |
| 8 | bracket-main top hinge (lt. or rt.) |
| 9 | Right |
| 9 | Left |
| 10 | WPL 321162 |
| 11 | Catch-Main Top Strike (2 Required) |
| 12 | Panel-Manifold (White) |
| 12 | Manifold Panel (Almond) |
| 13 | Knob-Thermostat |
| 14 | Knob-Gas Valve (4 Req) |
| 15 | Washer |
| 16 | Rear Stiffener-Burner Box Bottom |
| 16 | Front Stiffener-Burner Box Bottom |
| 17 | Bottom-Burner Box (14451A Models) |
| 17 | Bottom-Burner Box (14450A Models) |
| 20 | Screw 10-32x3/8`` |
