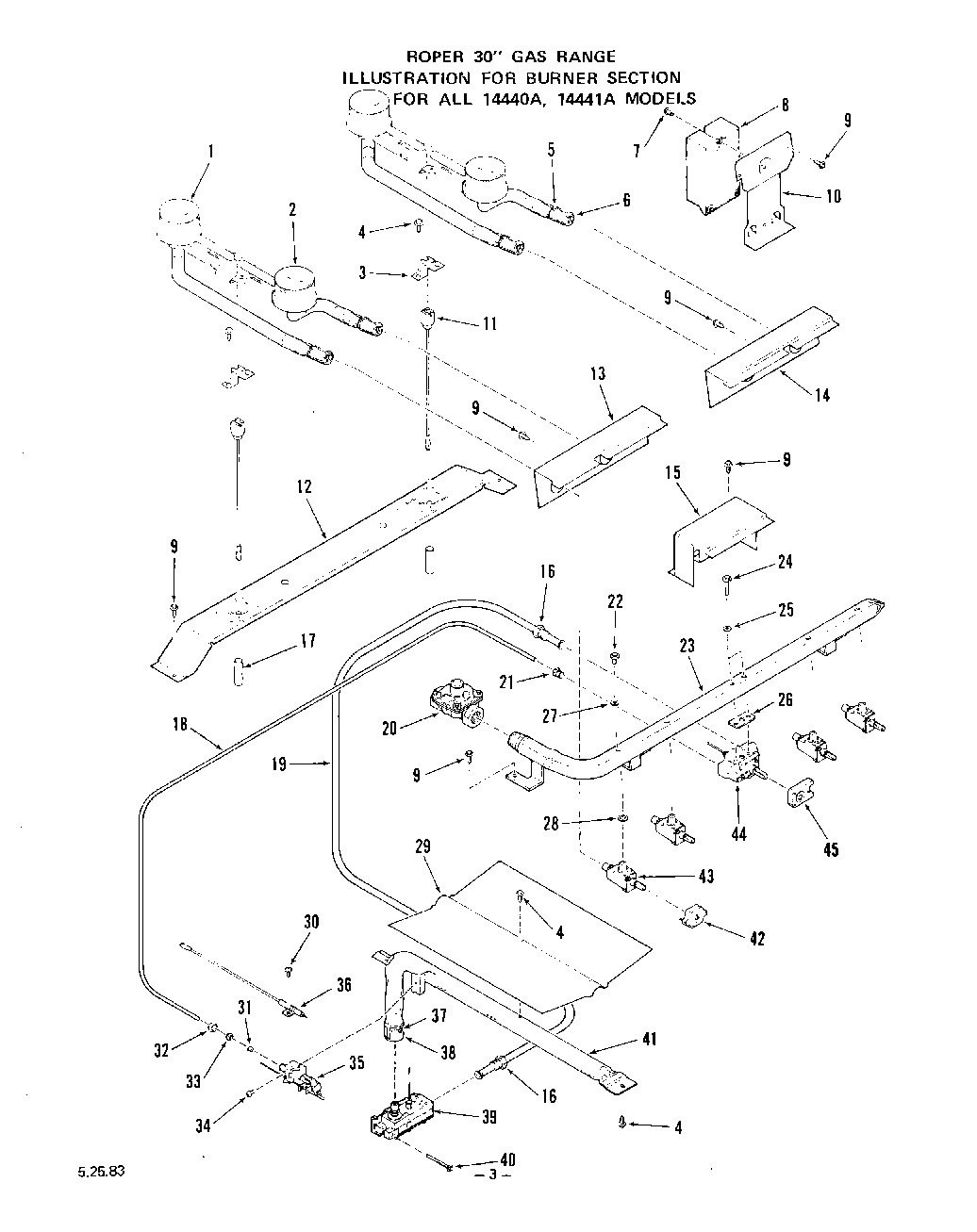

| 1 | Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65) |
| 2 | Front Top Burner-Lt. or Rt. (Inc`s 64 & 65) |
| 3 | Bracket-Spark Igniter (Lt. or Rt.) |
| 4 | WPL 316365 |
| 5 | Adjustment Screw-Air Shutter |
| 6 | Air Shutter |
| 7 | Screw 6-32 x 1/2`` |
| 8 | Module-Spark Igniter |
| 9 | WP112432 Whirlpool Nut Assembly |
| 10 | Support-Spark Igniter |
| 11 | Right |
| 11 | Panel, Side L.H. (Platinum Panel, Side R.H.) |
| 12 | Support-Top Burner |
| 13 | Valve Cover-Lt.-All Models Except 14633A Models |
| 14 | Valve Cover-Rt.-All Models Except 14633A Models |
| 15 | Wire Cover-Ov. Therm.-All Models Except 14633A Models |
| 16 | Inverted Nut 3/8`` |
| 17 | Sleeve-Igniter Wire (Lt. or Rt.) |
| 18 | Tubing 3/16`` |
| 19 | Tubing 3/8`` |
| 20 | Pressure Regulator |
| 21 | Loxit Nut 3/16`` |
| 22 | Mounting Screw (Inc`s 86) |
| 23 | Manifold Pipe |
| 24 | Mounting Screw (2 Req. for 114) |
| 25 | Gasket (For 83) |
| 26 | Silicone Rubber Gasket |
| 27 | Gasket (For 81) |
| 28 | Silicone Rubber Gasket |
| 29 | Baffle - Oven Burner |
| 30 | Screw 6-32 x 5/16`` |
| 31 | Orifice Cup Only (For 94) |
| 32 | Compression Nut 3/16`` |
| 33 | Compression Ball Sleeve 3/16`` |
| 34 | Screw 10-24x1/4`` |
| 35 | Pilot Only (Inc`s 90) |
| 36 | Electrode - Oven Spark Igniter |
| 37 | Adjustment Screw -Air Shutter |
| 38 | Air Shutter |
| 39 | Control Valve (Inc`s 90 & 94) |
| 40 | Screw 10-32 x 2`` |
| 41 | WPL 319255 |
| 42 | Panel, Side L.H. (White) |
| 43 | Gas Valve - 4 Req. |
| 44 | WPL 318477 |
| 45 | WPL 318432 |
