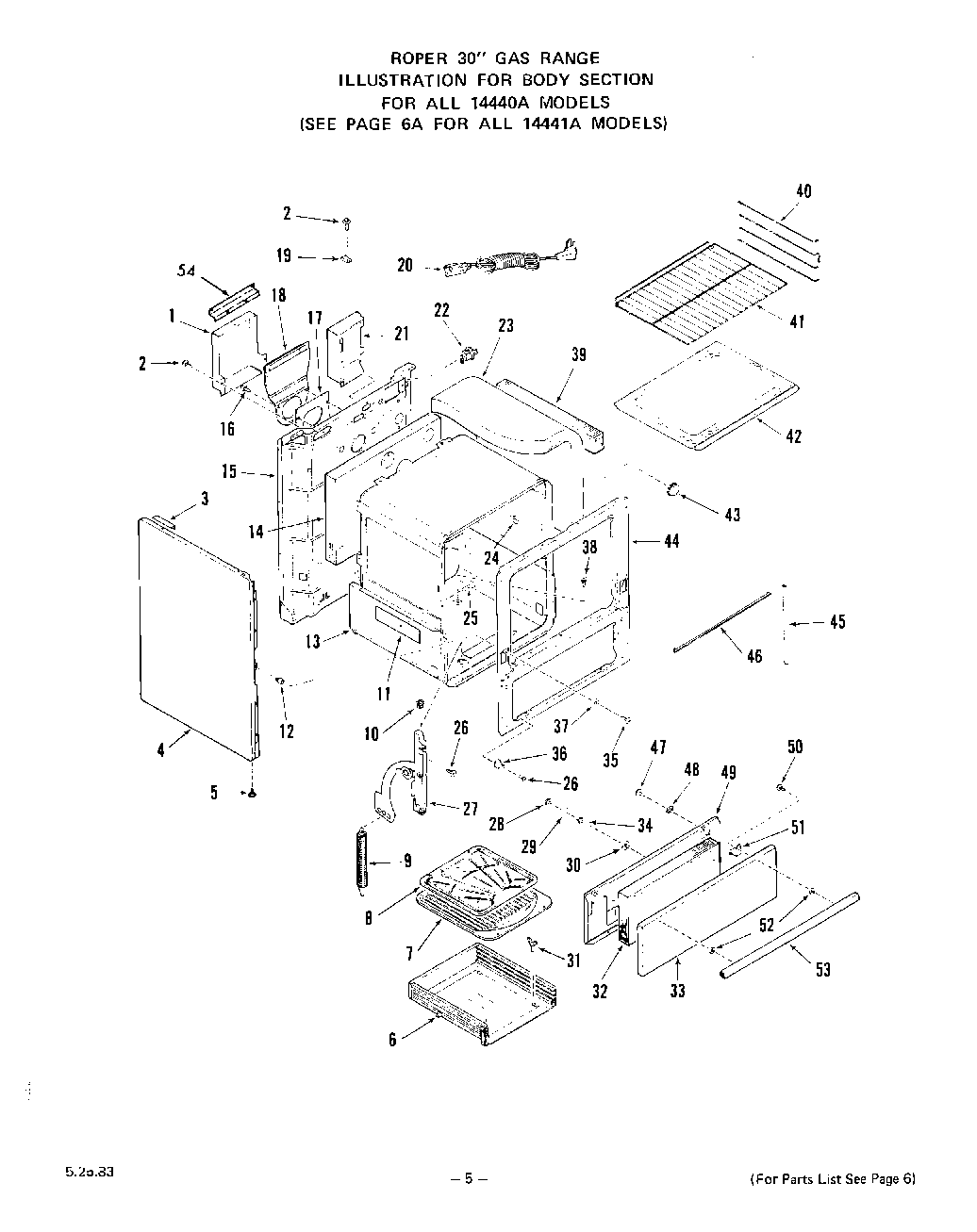

1444W1A 05 – BODY

Products

Position	Product
1	Shield – Flue Deflector
2	WP112432 Whirlpool Nut Assembly
3	Spacer-Main Top
4	Almond-Right
4	Wheat-Left
4	White-Left
4	White-Right
4	Almond-Left
4	Coffee
4	Body Side-Lt. (Coffee)
4	Avocado
4	Body Side-Lt. (Avocado)
4	Wheat-Right
5	Leg Leveler (4 Required)
6	Broiler Drawer
7	Broiler Pan
8	Broiler Pan Grid
9	Spring-Oven Door (Lt. or Rt.)
10	Nut-Retainer (2 Required)
11	Retainer-Insulation (Rt. or Lt.)
12	Grommet – Screw (8 Req.)
13	Oven Body
14	Insulation – Oven Back
15	Main Back
16	Screw 10 – 32 x 17/32“
17	Gasket-Flue Deflector
18	Flue Deflector
19	Clip
20	Range Service Cord
21	Wire Shield
22	Disconnect
23	Insulation – Oven Top & Sides (1 Piece)
24	Thermostat Bulb Clip (2 Required)
25	Dart-Button Head (2 Required)
26	Screw 10-32 x 5/8“
27	Right
27	Left
28	Keps Nut 8-32
29	Washer
30	Catch-Broiler Door Strike
31	Thumbscrew-Rt. or Lt.
33	knob, control
33	WPL 308975
33	WPL 308977
33	WPL 308976
33	Front Panel-Broiler
34	Strike-Broiler Door
35	WP303896 Whirlpool High Limit Thermostat
36	Hinge-Broiler Door (Lt. or Rt.)
37	Washer
38	WPL 389730
39	W10820036 Whirlpool Door Switch Kit
40	WPL 305409
41	WPL 305408
42	WPL 296069
43	WPL 101063
44	WPL 316994
45	WPL 314573
46	WPL 314574
47	Screw 10-32×3/8“
48	Lockwasher
49	WPL 302267
50	WPL 316365
51	Spacer-Broiler Doo
52	spacer-handle
53	Handle-Broiler Door
54	Support-Flue Deflector
