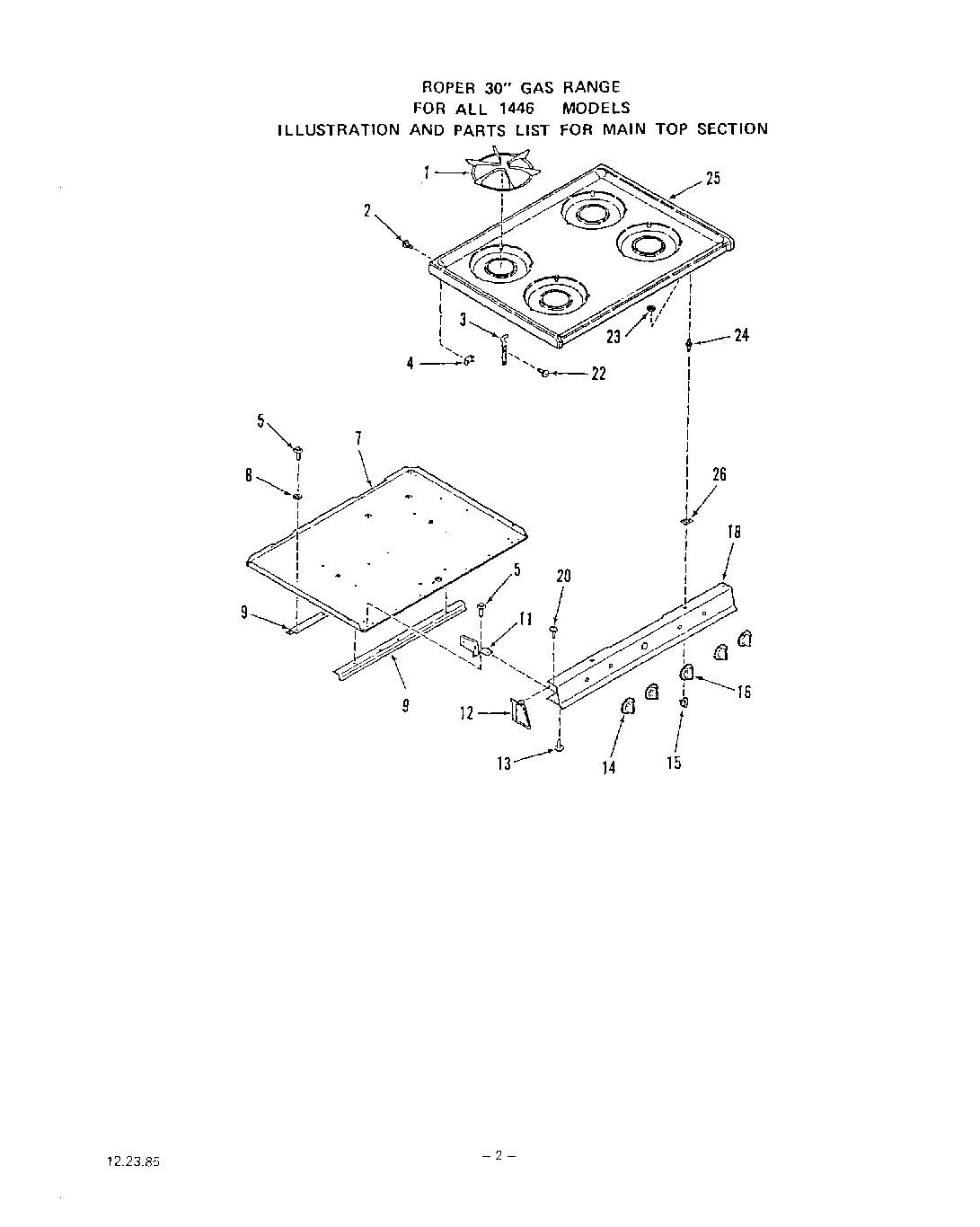

1446^0A 03 – BURNER

Products

Position	Product
1	Top Grate (4 Required)
2	Screw-10-32×1/2“
3	Left
3	Right
4	bracket-main top hinge (lt. or rt.)
5	Screw 10-16×7/16“
7	Burner Box Bottom
8	Washer
9	Rear Stiffener-Burner Box Bottom
9	Front Stiffener-Burner Box Bottom
11	Right
11	Left
12	Right
12	Left
13	Screw 10ABx1/2“
14	Knob-Gas Valve (4 Req)
15	Catch-Main Top Strike (2 Required)
16	Knob-Thermostat
18	Manifold Panel
20	Screw 6-20×3/8“
22	WPL 321162
23	Keps Nut 8-32
24	Strike-Main Top (2 Required)
25	White
25	Almond
26	Washer
