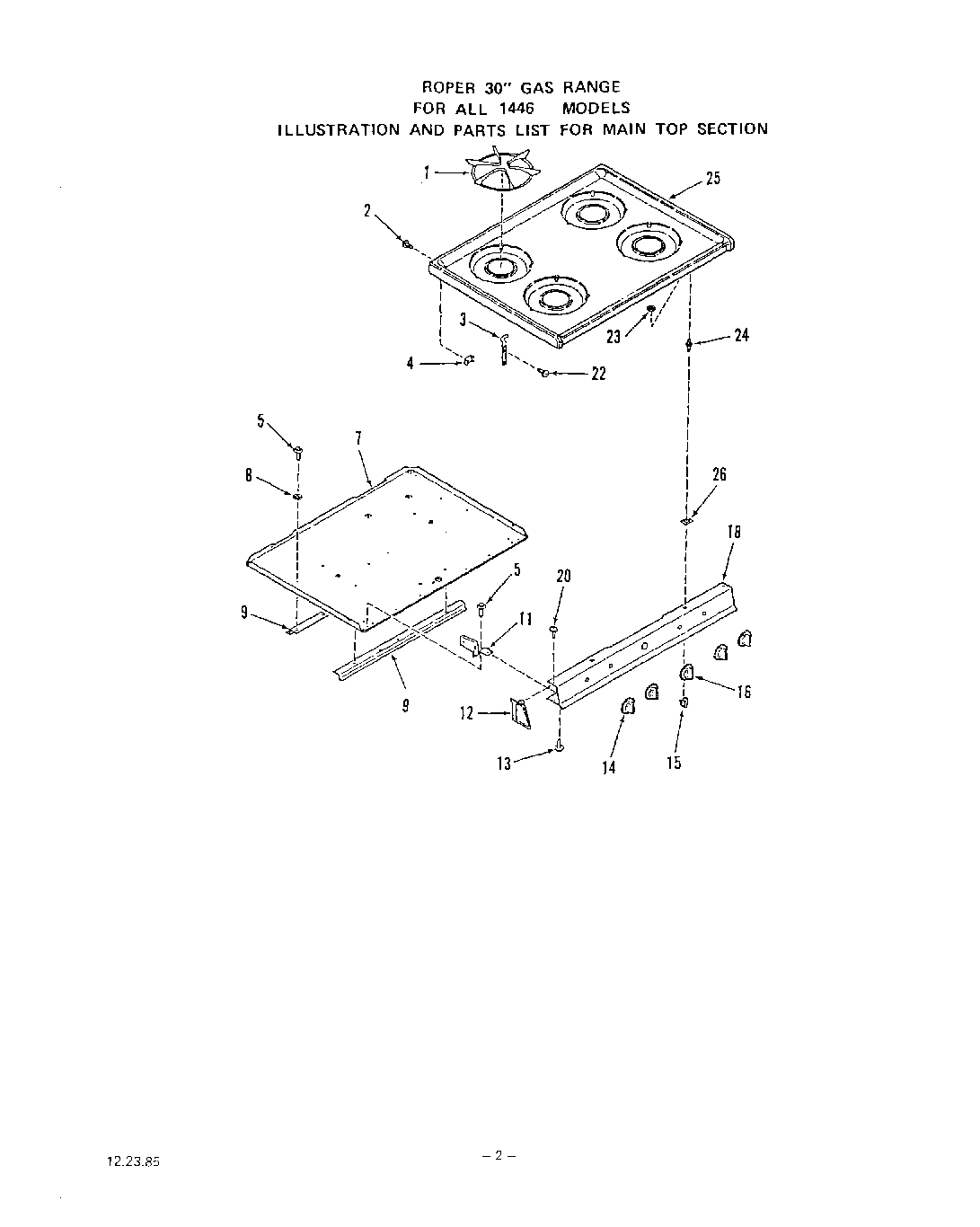

| 1 | Top Grate (4 Required) |
| 2 | Screw-10-32x1/2`` |
| 3 | Left |
| 3 | Right |
| 4 | bracket-main top hinge (lt. or rt.) |
| 5 | Screw 10-16x7/16`` |
| 7 | Burner Box Bottom |
| 8 | Washer |
| 9 | Rear Stiffener-Burner Box Bottom |
| 9 | Front Stiffener-Burner Box Bottom |
| 11 | Right |
| 11 | Left |
| 12 | Right |
| 12 | Left |
| 13 | Screw 10ABx1/2`` |
| 14 | Knob-Gas Valve (4 Req) |
| 15 | Catch-Main Top Strike (2 Required) |
| 16 | Knob-Thermostat |
| 18 | Manifold Panel |
| 20 | Screw 6-20x3/8`` |
| 22 | WPL 321162 |
| 23 | Keps Nut 8-32 |
| 24 | Strike-Main Top (2 Required) |
| 25 | White |
| 25 | Almond |
| 26 | Washer |
