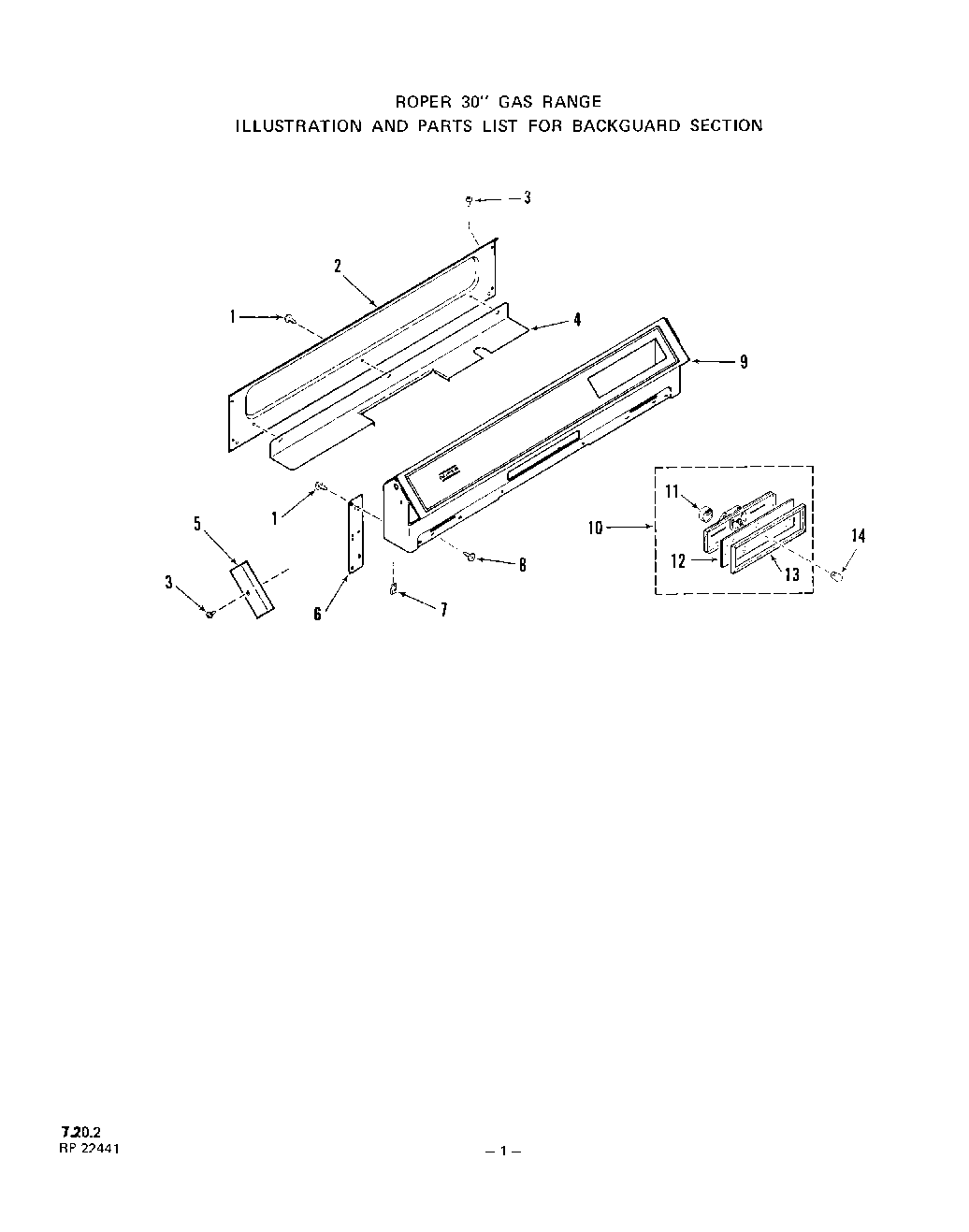

1453^0A 02 – MAIN TOP

Products

Position	Product
1	WP112432 Whirlpool Nut Assembly
2	Wire Cover-Backguard
3	Screw 6-32×3/8“
4	Bottom-Wire Cover
5	End Cap-Backguard (Lt. or Rt.)
6	Support-Backguard (Lt. or Rt.)
7	Speed Nut 10 – 32
8	Screw 10-32×7/16“
9	Crosstie
10	Clock-60 Cycle
11	Clock Motor
12	Glass-Clock
13	Bezel-Clock
14	Knob-Clock (Start & Stop Time)
