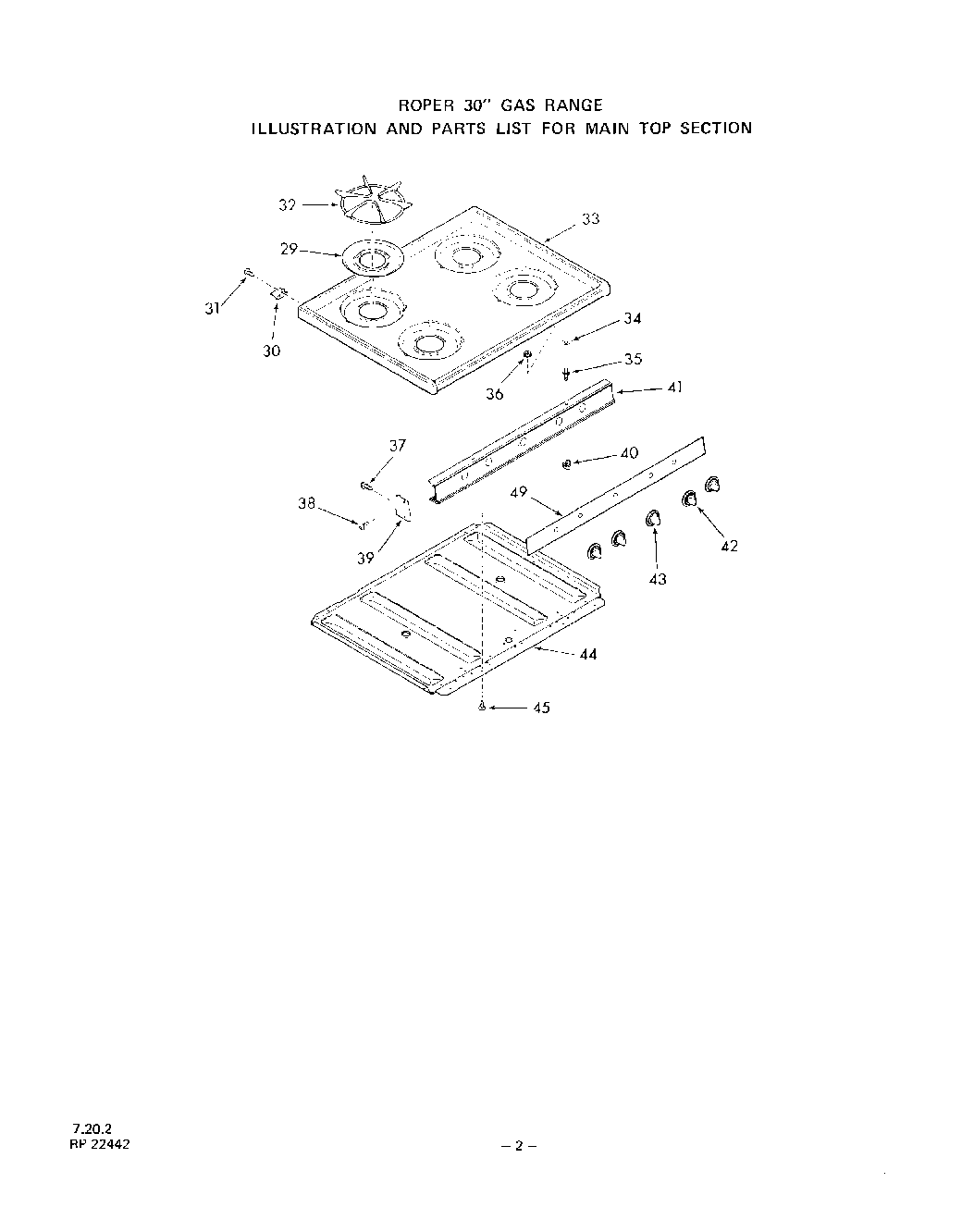

| 29 | Spill Bowl |
| 30 | Retainer-Main Top (2 Required) |
| 31 | Screw 10-32x7/16`` |
| 32 | Top Grate (4 Required) |
| 33 | Golden Wheat |
| 33 | Almond |
| 33 | Chrome |
| 33 | White |
| 34 | Washer |
| 35 | Strike-Main Top (2 Required) |
| 36 | Keps Nut 8-32 |
| 37 | Screw 10 - 32 x 17/32`` |
| 38 | Screw 6-32x3/8`` |
| 39 | End Cap-Manifold Panel (Left) |
| 39 | End Cap-Manifold Panel (Right) |
| 40 | Catch-Main Top Strike (2 Required) |
| 41 | Manifold Panel |
| 42 | All 14630A Models |
| 43 | All 14630A Models |
| 44 | Burner Box Bottom |
| 45 | Screw 10-32x3/8`` |
| 49 | Trim-Manifold Panel |
