1455X0A 07 – SECTION

Products

PositionProduct
xRepair Parts List
xInstallation Guide
xOperating Guide
xWire Harness-Main

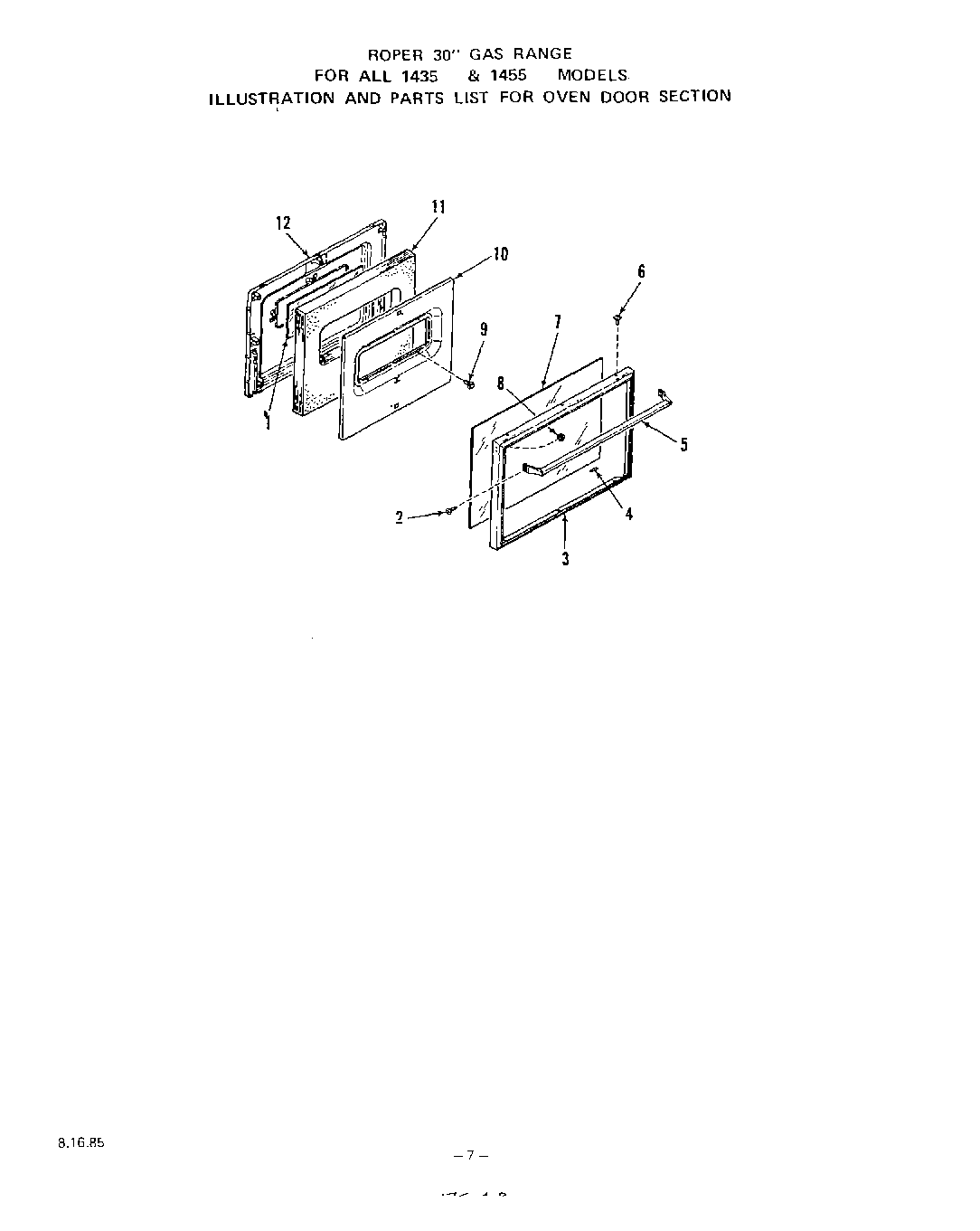

1Glass-Inner Oven Door
2Screw 8-32 x 1/2“
3frame-oven door
4Cushion-Door Glass
5Handle-Oven Door
6Screw-10-32×1/2“
7outer glass-oven door
8Keps Nut 8-32
9Screw 10 – 32×3/8“
10Retainer-Oven Door Insulation
11Insulation
121435 Models
121455 Models
12Lining-Oven Door
12Lining-Oven Door (14451A Models)
12Lining-Oven Door (14450A Models)
12Lining-Oven Door
