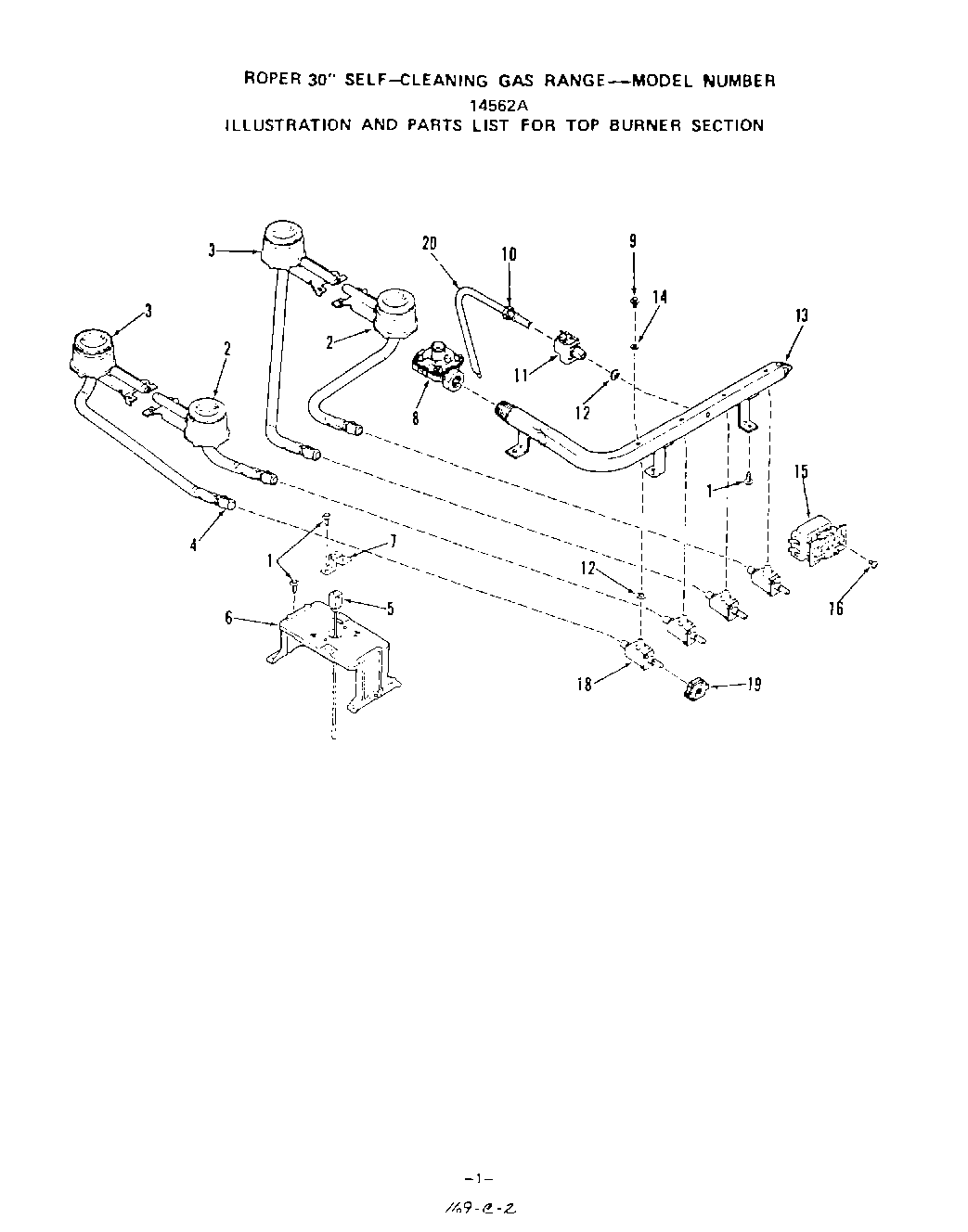

1456W2A 02 – MAIN TOP

Products

Position	Product
1	Screw 10-16×7/16“
2	Burner-Top Front (Inc.`sA) (Left)
2	Burner-Top Front (Inc.`sA) (Right)
3	Burner-Top Rear (Inc`s. 4) (Right)
3	Burner-Top Rear (Inc`s. 4) (Left)
4	Air Shutter
5	Left
5	Right
6	Support-Top Burner (Rt. or Lt.)
7	panel, side l.h. (almond panel, side r.h.)
8	Pressure Regulator
9	Mounting Screw (Inc`s 86)
10	Inverted Nut 3/8“
11	Shut Off Valve
12	Silicone Rubber Gasket
13	Manifold Pipe
14	Silicone Rubber Gasket (For Key 26)
15	Thermostat-Oven
16	WPL 78565
18	Gas Valve (4 Req)
19	Switch-Gas Valve (4 Req)
20	Tubing 3/8“ (Shut-Off Valve to Control Valve)
