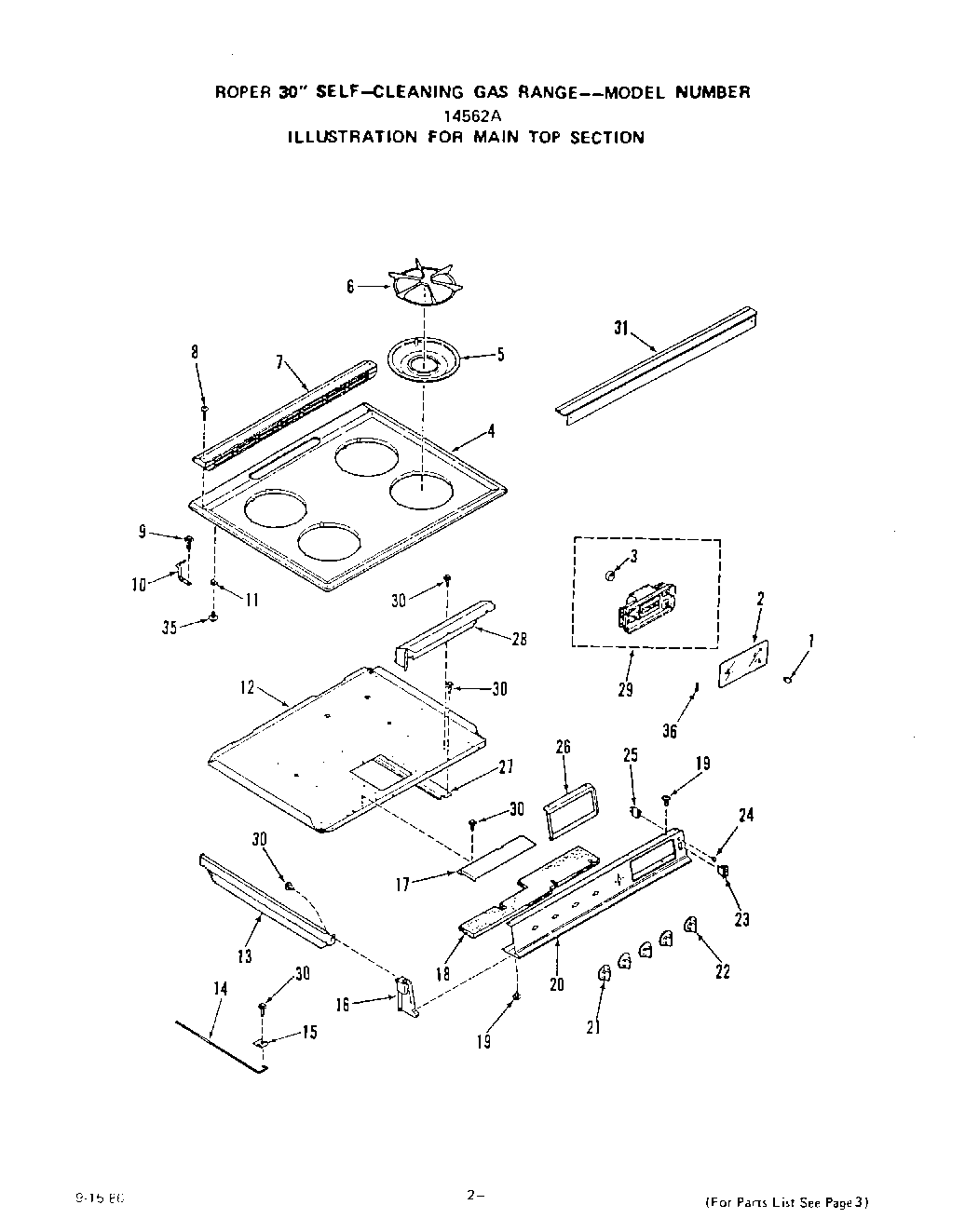

1456W2A 03 – POWER LOCK

Products

Position	Product
1	Knob-Clock
1	Knob-Clock (Start & Stop Time)
2	Glass-Clock
3	Motor-Clock
4	Main Top (Almond)
4	Main Top (White)
4	Main Top (Chrome)
5	Aeration Pan 15252A, 3A Models
6	Top Grate (4 Required)
7	Cover-Vent
8	Screw 6-32
9	WPL 78565
10	Hinge-Main Top (Right)
10	Hinge-Main Top (Left)
11	Bracket-Hinge
12	Burner Box Bottom
13	Extension-Burner Box Side
14	Support Rod-Main Top
15	Clamp
16	End Cap-Manifold Panel (Left)
16	End Cap-Manifold Panel (Right)
17	Cover-Insulation
18	Insulation
19	Screw-10-32×1/2“
20	Manifold Panel
21	Knob-Gas Valve (4 Req)
22	Knob-Thermostat
23	Switch-Oven Light
24	Lens-Indicator Light
25	Light-Indicator
26	Bracket-Clock
27	Stiffener-Burner Box Bottom
28	Cover-Wire
29	Clock
30	Screw 10-16×7/16“
31	Filler-Main Top Rear
35	Screw 10-32×5/16“
36	Clip-Clock Bezel
