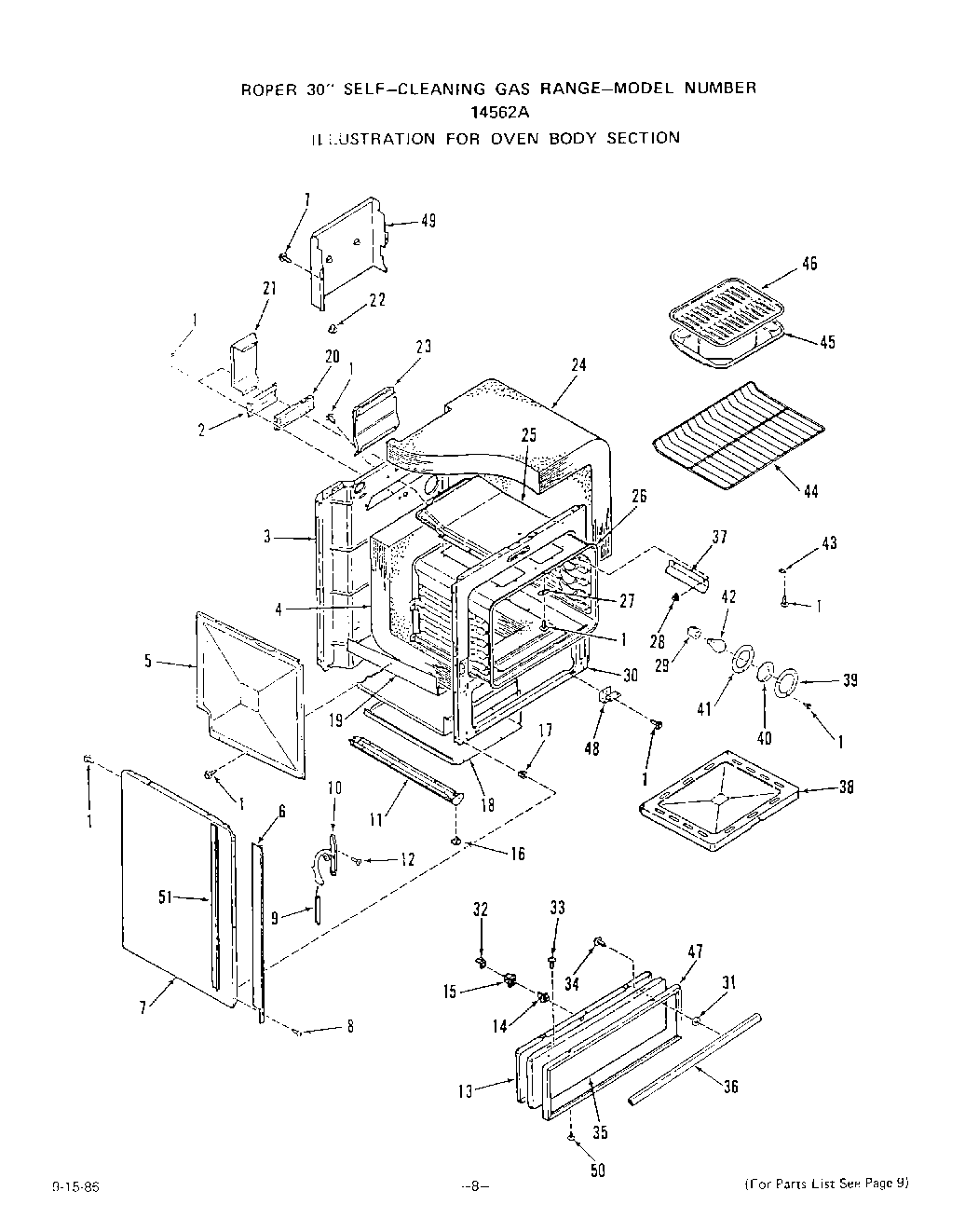

1456W2A 06 – OVEN DOOR

Products

Position	Product
2	Wire Shield
3	Main Back
4	Insulation-Oven Back & Bottom (1 Piece)
5	Retainer-Insulation (Lt. or Rt.)
6	Trim-Side (Left)
6	Trim-Side (Right)
7	Body Side (Lt. or Rt.) (Black)
8	Screw 10ABx1/2“
9	Spring-Oven Door (Lt. or Rt.)
10	Right
10	Left
11	Base w/Levelers (Lt. or Rt.)
12	Screw 10-32 x 5/8“
13	Lining-Storage Drawer
14	Catch-Strike
15	Catch-Door
16	Leg Leveler (4 Req)
17	BURNER RECEPTACLE KIT
18	Storage Compartment
19	Lower Insulation Retainer
20	Frame, Front
21	Wire Shield
22	Bushing
23	Flue Deflector
24	Insulation-Oven Top & Sides (1 Piece)
25	Flue Box
26	Oven Body
27	Cover
28	Clip-Thermostat Bulb (2 Req)
29	Holder-Oven Light Bulb
30	Front Frame
31	spacer-handle
32	Bracket-Catch
33	Screw-10-32×1/2“
34	Screw 10-16×7/16“
35	Front Panel-Storage Door
36	Handle-Broiler Door
37	Shield-Thermostat Bulb
38	Oven Bottom
39	Retainer-Oven Light Lens
40	Lens-Oven Light
41	Gasket-Lens
42	Oven Lamp Bulb
43	Cover Plate-Thermostat Bulb
44	Oven Rack (2 Req)
45	WPL 331592
46	WPL 326297
47	Frame-Front Panel
48	Hinge
49	Shield-Flue Deflector
50	Screw 6-20×3/8“
51	Extension Side Trim
