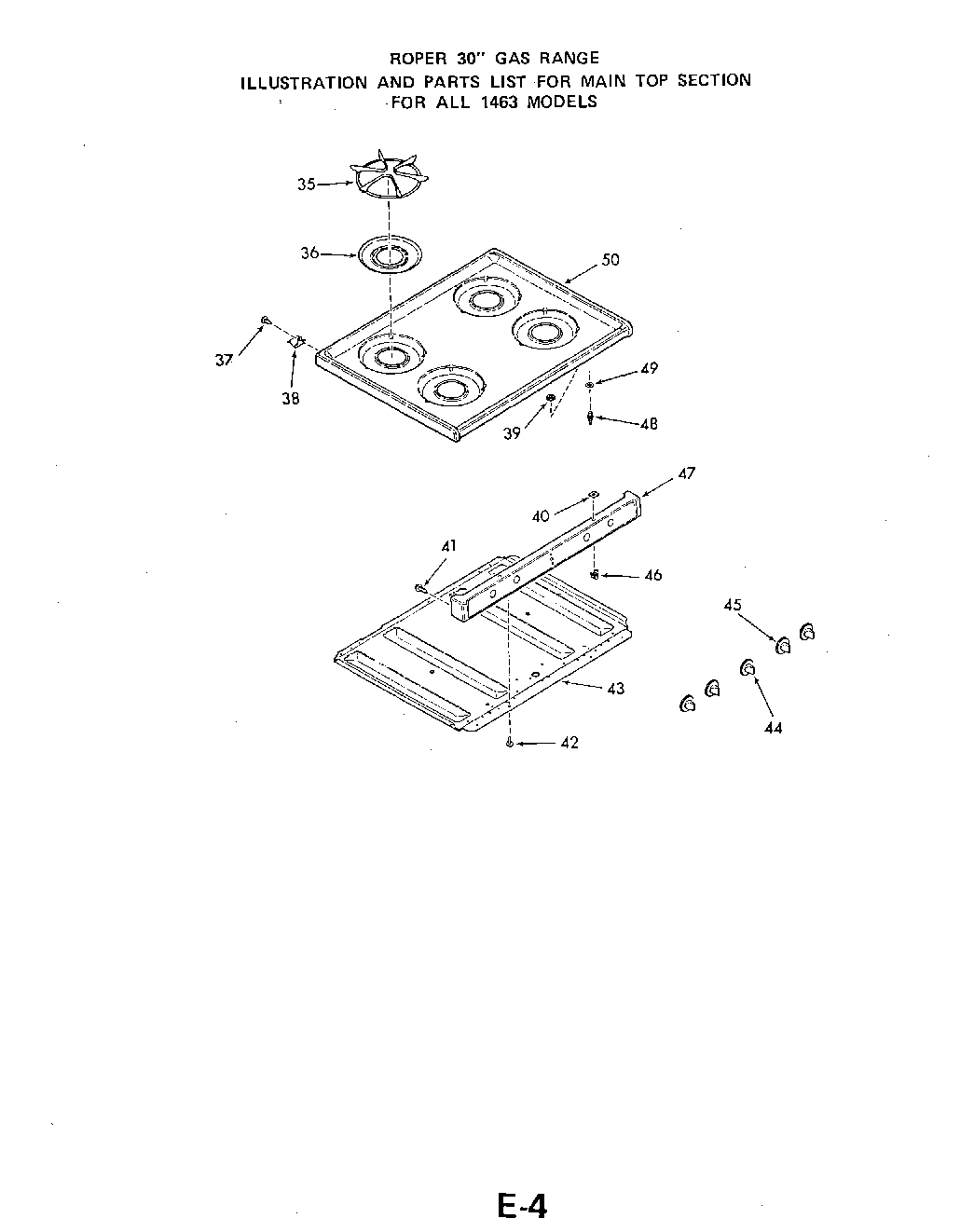

1463^0A 03 – MAIN TOP

Products

Position	Product
35	Top Grate (4 Required)
36	Spill Bowl
37	Screw 10-32×7/16“
38	Retainer-Main Top (2 Required)
39	Keps Nut 8-32
40	Washer
41	WP112432 Whirlpool Nut Assembly
42	Screw 10-32×3/8“
43	Burner Box Bottom
44	All 14630A Models
44	Knob-Oven Thermostat
44	All 14631A, 14632A & 14633A Models
45	All 14631A, 14632A & 14633A Models
45	All 14630A Models
45	Knob-Gas Valve (4 Req)
46	Catch-Main Top Strike (2 Required)
47	Manifold Panel
47	Manifold Panel (Black)
47	White
47	Golden Wheat
47	Almond
48	Strike-Main Top (2 Required)
49	Washer
50	Chrome
50	White
50	Almond
50	Golden Wheat
50	Main Top
