1463^1A 07 – OVEN DOOR

1463^1A 07 – OVEN DOOR

Written by

in

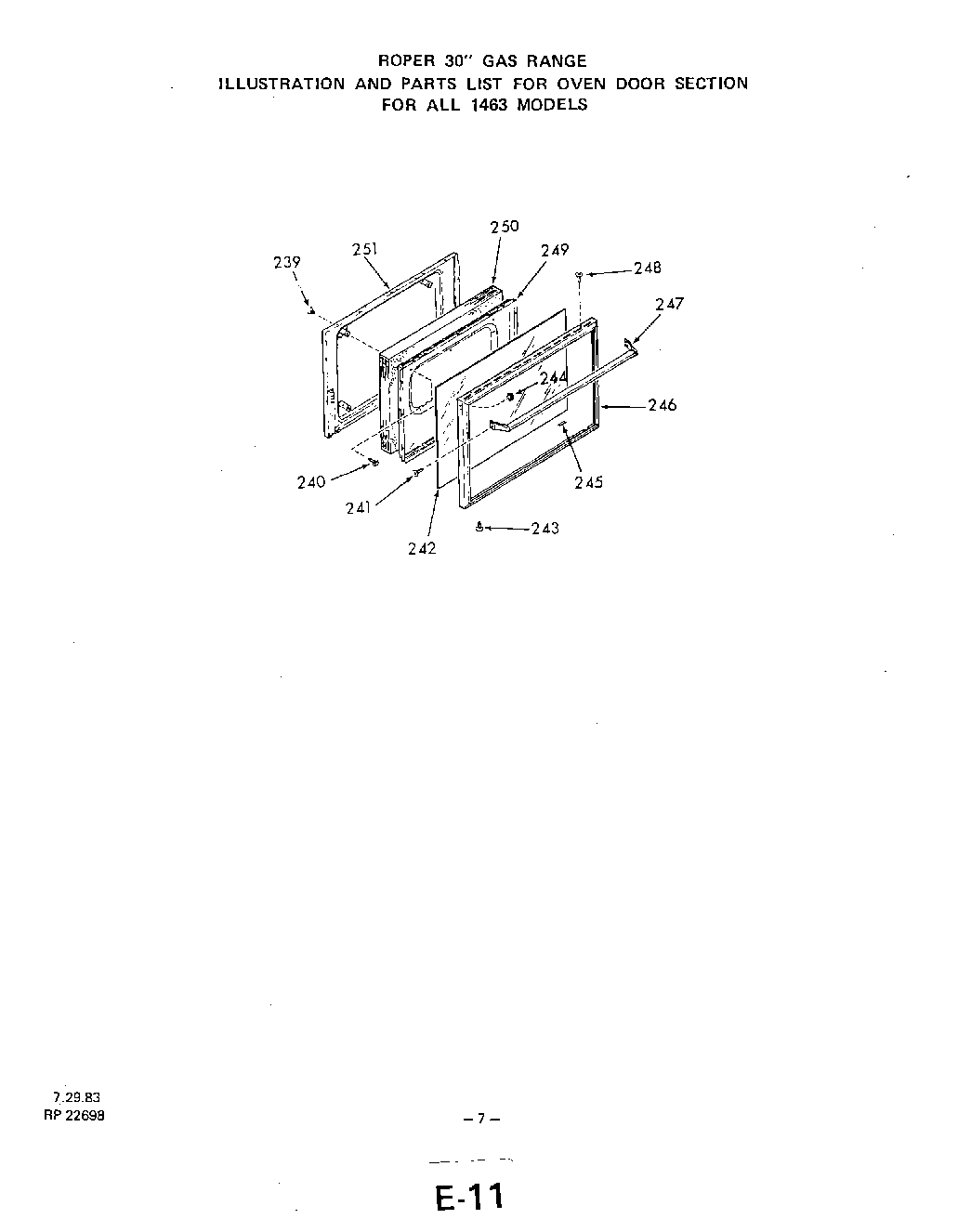

1463^1A 07 – OVEN DOOR

Products

PositionProduct
xWire Harness
239WPY04100165 Whirlpool Surface Element
240WP112432 Whirlpool Nut Assembly
241Screw 8-32 x 1/2“
242Glass-Oven Door
243Screw 10-32 x 1/2“
244Keps Nut 8-32
245Cushion-Door Glass
246Frame-Door Glass
247Handle-Oven Door
248Screw 6Ax3/8“
249Retainer-Oven Door Insulation
250Insulation-Oven Door
251Module
251Lining-Oven Door
251Switches-Gas Valve-All Models Except 14633A Models
251Switches-Gas Valve-All 14633A Models
