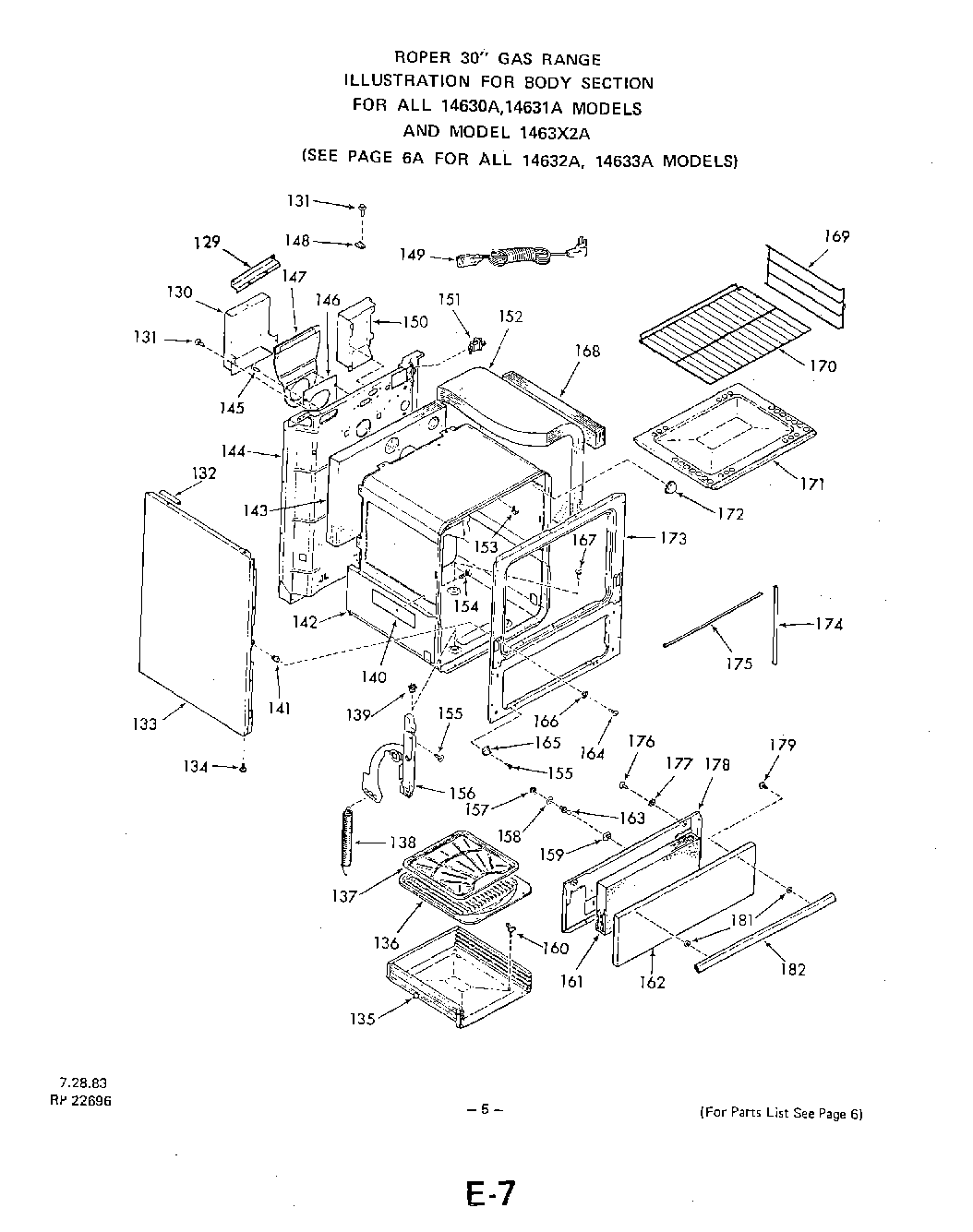

1463^2A 05 – BODY

Products

PositionProduct
129Support-Flue Deflector
130Shield – Flue Deflector
131WP112432 Whirlpool Nut Assembly
132Spacer-Main Top
133White-Right
133Wheat-Right
133Wheat-Left
133Almond-Right
133White-Left
133Almond-Left
133Black-Right
133Body Side
133Black-Left
134Leg Leveler (4 Required)
135Broiler Drawer
136Broiler Pan
137Broiler Pan Grid
138Spring-Oven Door (Lt. or Rt.)
139Nut-Retainer (2 Required)
140Retainer-Insulation (Rt. or Lt.)
141Grommet – Screw (8 Req.)
142Oven Body
143Insulation – Oven Back
144Main Back
145Screw 10 – 32 x 17/32“
146Gasket-Flue Deflector
147Flue Deflector
148Clip
149Range Service Cord
150Wire Shield
151Disconnect
152Insulation – Oven Top & Sides (1 Piece)
153Thermostat Bulb Clip (2 Required)
154Dart-Button Head (2 Required)
155Screw 10-32 x 5/8“
156Left
156Right
156Hinge-Oven Door
157Keps Nut 8-32
158Washer
159Catch-Broiler Door Strike
160Thumbscrew-Rt. or Lt.
162Front Panel-Broiler Door
163Strike-Broiler Door
164WP303896 Whirlpool High Limit Thermostat
165Hinge-Broiler Door (Lt. or Rt.)
166Washer
167Shoulder Screw 10-32×1/2“
168W10820036 Whirlpool Door Switch Kit
169WPL 305409
170WPL 305408
171WPL 296070
172WPL 101063
173WPL 316994
174WPL 314573
175WPL 314574
176Screw 10-32×3/8“
177Lockwasher
178WPL 302267
179WPL 316365
181spacer-handle
182Handle-Broiler Door
