1463W0A 07 – OVEN DOOR, LIT/OPTIONAL

1463W0A 07 – OVEN DOOR, LIT/OPTIONAL

Written by

in

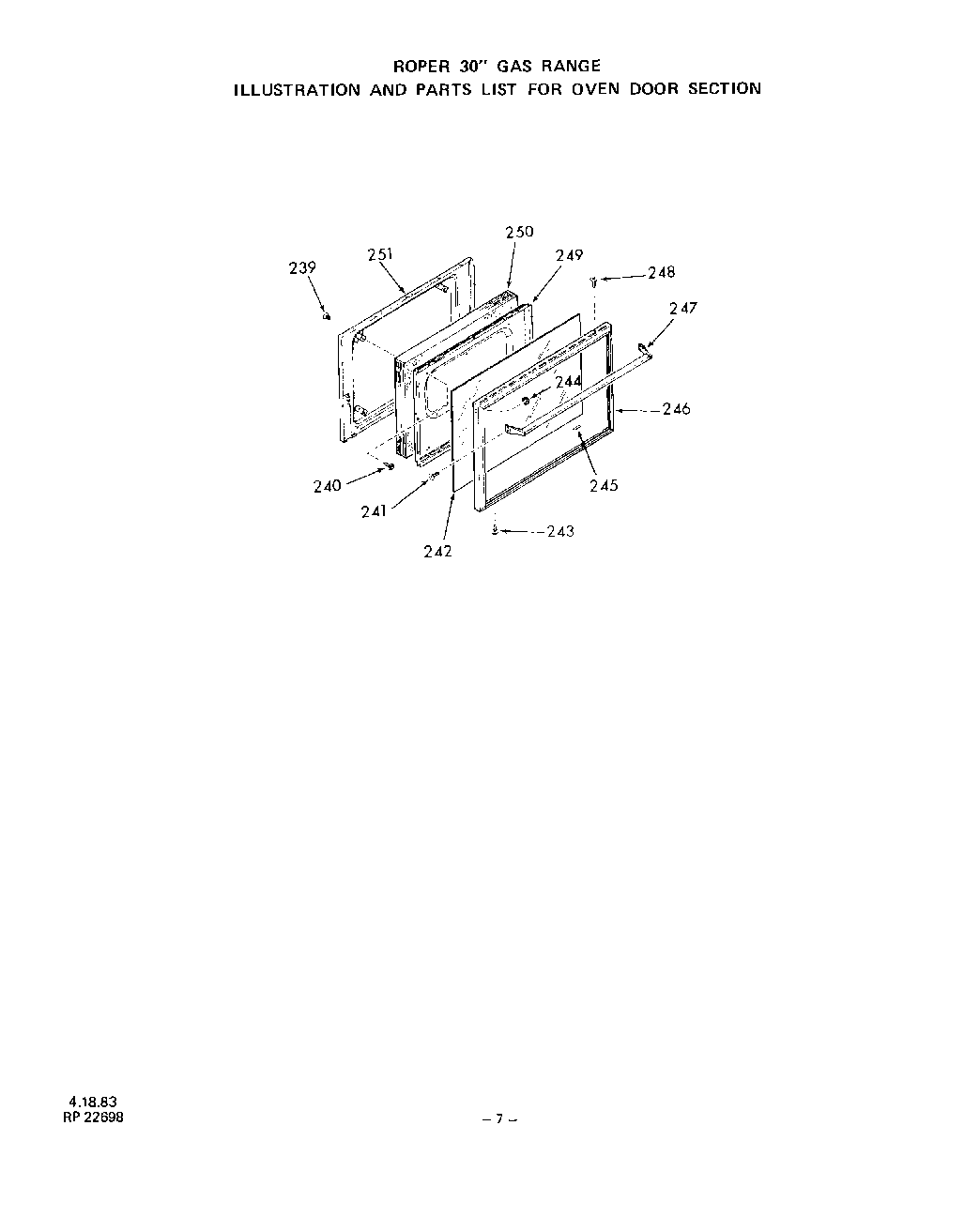

1463W0A 07 – OVEN DOOR, LIT/OPTIONAL

Products

PositionProduct
Switches-Gas Valve-All Models Except 14633A Models
239WPY04100165 Whirlpool Surface Element
240WP112432 Whirlpool Nut Assembly
241Screw 8-32 x 1/2“
242Glass-Oven Door
243Screw 10-32 x 1/2“
244Keps Nut 8-32
245Cushion-Door Glass
246Frame-Door Glass
247Handle-Oven Door
248Screw 6Ax3/8“
249Retainer-Oven Door Insulation
250Insulation-Oven Door
251Repair Parts Manual
251Operating Guide
251Installation & Reference Guide
251Gas Use & Care Guide
251Flue Collar Kit (Optional)
251Lining-Oven Door
251Module
251xWire Harness
