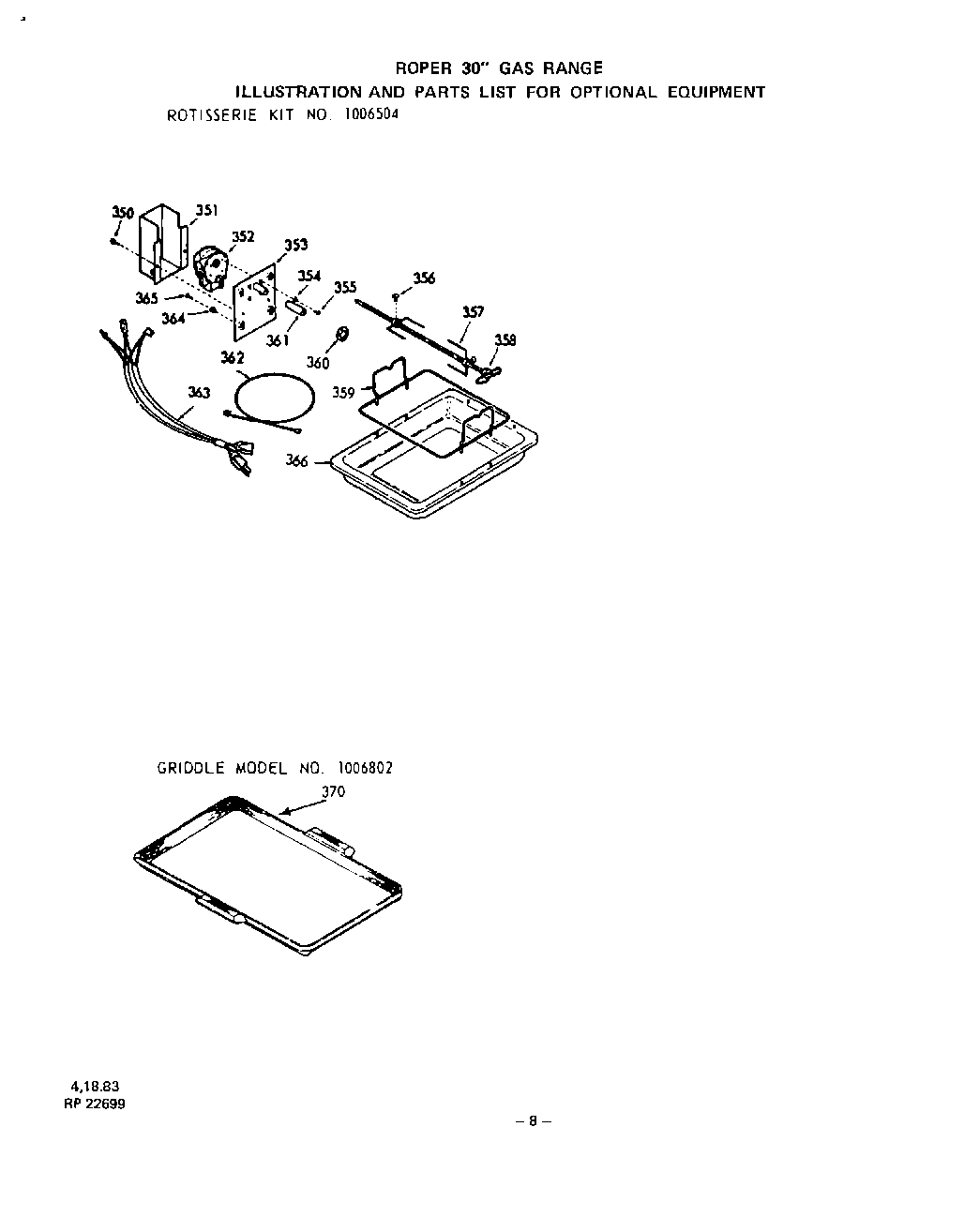

1463W0A 08 – ROTISSERIE KIT, GRIDDLE

Products

PositionProduct
350Screw 10 – 32 x 1/4“
351Cover – Rotisserie Motor
352Switch (For Key No. 352)
352Rotisserie Motor
353Mounting Bracket-Rotisserie Motor
354Lockwasher 3/16“
355Screw 8-32×1/4“
356Thumbscrew
357Skewer
358Rotisserie Spit
359Spit Support
360Plug Button
361Guide Extension – Rotisserie Motor
362Black
362Black With 1/4“ Faston & Eyelet Terminals
362White
362White
363Rotisserie Cord
364Lockwasher
365Screw 10-32 x 1/2“
366xInstallation Instructions
366Rotisserie Pan
370Set-On-Griddle (Optional)
