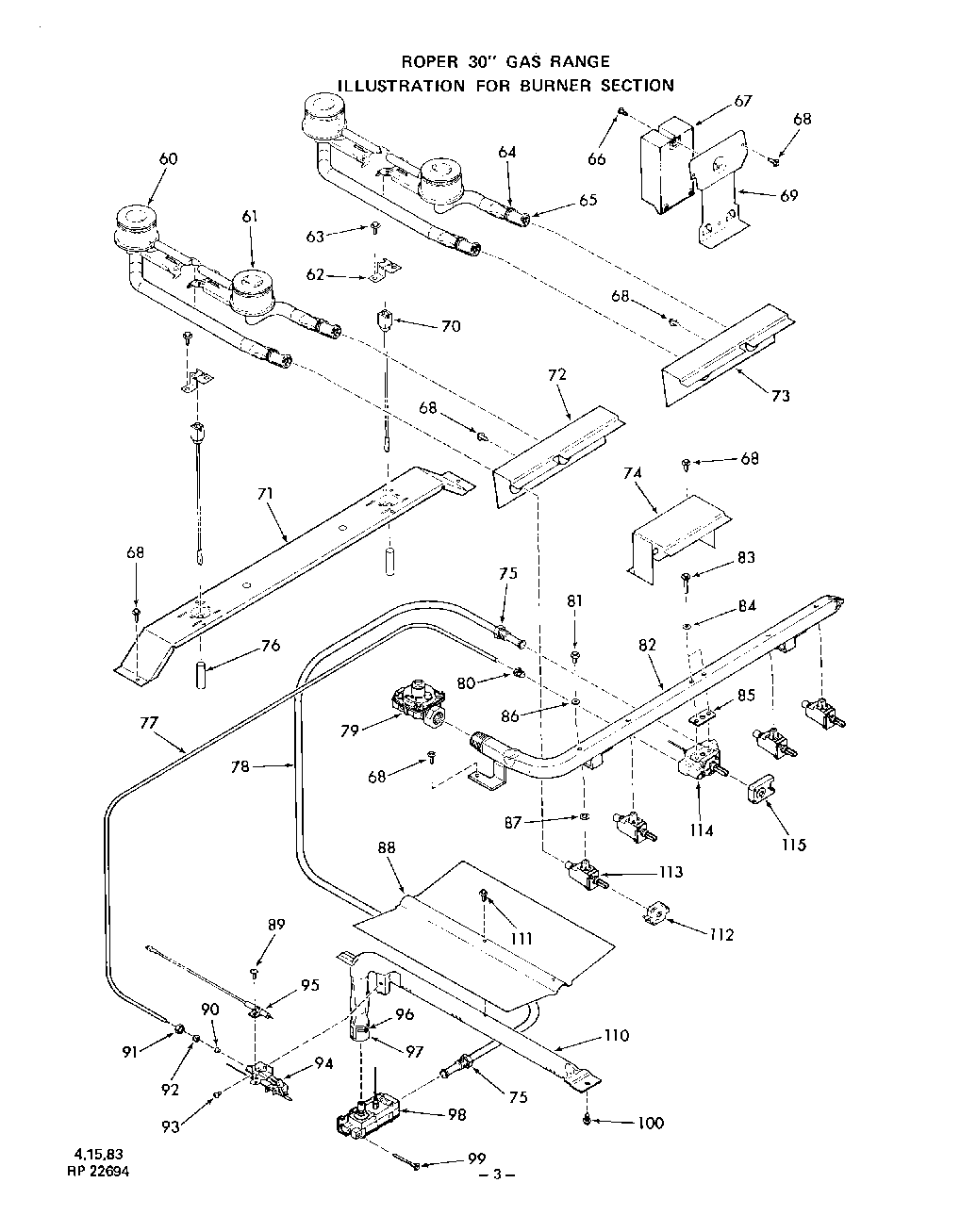

1463W2A 04 – BURNER

Products

Position	Product
60	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
61	Front Top Burner-Lt. or Rt. (Inc`s 64 & 65)
62	panel, side l.h. (almond panel, side r.h.)
64	Adjustment Screw-Air Shutter
65	Air Shutter
66	Screw 6-32 x 1/2“
67	Module-Spark Igniter
68	WP112432 Whirlpool Nut Assembly
69	Support-Spark Igniter
70	Panel, Side L.H. (Platinum Panel, Side R.H.)
70	Right
71	Support-Top Burner
72	Valve Cover-Lt.-All Models Except 14633A Models
73	Valve Cover-Rt.-All Models Except 14633A Models
74	Wire Cover-Ov. Therm.-All Models Except 14633A Models
75	Inverted Nut 3/8“
76	Sleeve-Igniter Wire (Lt. or Rt.)
77	Tubing 3/16“
78	Tubing 3/8“
79	Pressure Regulator
80	Loxit Nut 3/16“
81	Mounting Screw (Inc`s 86)
82	Manifold Pipe
83	Mounting Screw (2 Req. for 114)
84	Gasket (For 83)
85	Silicone Rubber Gasket
86	Gasket (For 81)
87	Silicone Rubber Gasket
88	Baffle – Oven Burner
89	Screw 6-32 x 5/16“
90	Orifice Cup Only (For 94)
91	Compression Nut 3/16“
92	Compression Ball Sleeve 3/16“
93	Screw 10-24×1/4“
94	Pilot Only (Inc`s 90)
95	Electrode – Oven Spark Igniter
96	Adjustment Screw -Air Shutter
97	Air Shutter
98	Control Valve (Inc`s 90 & 94)
99	Screw 10-32 x 2“
110	WPL 319255
111	WPL 316365
112	Panel, Side L.H. (White)
113	WPL 318479
114	WPL 318477
115	WPL 318432
