15-052A 06 – COMPRESSOR

15-052A 06 – COMPRESSOR

Written by

in

15-052A 06 – COMPRESSOR

Products

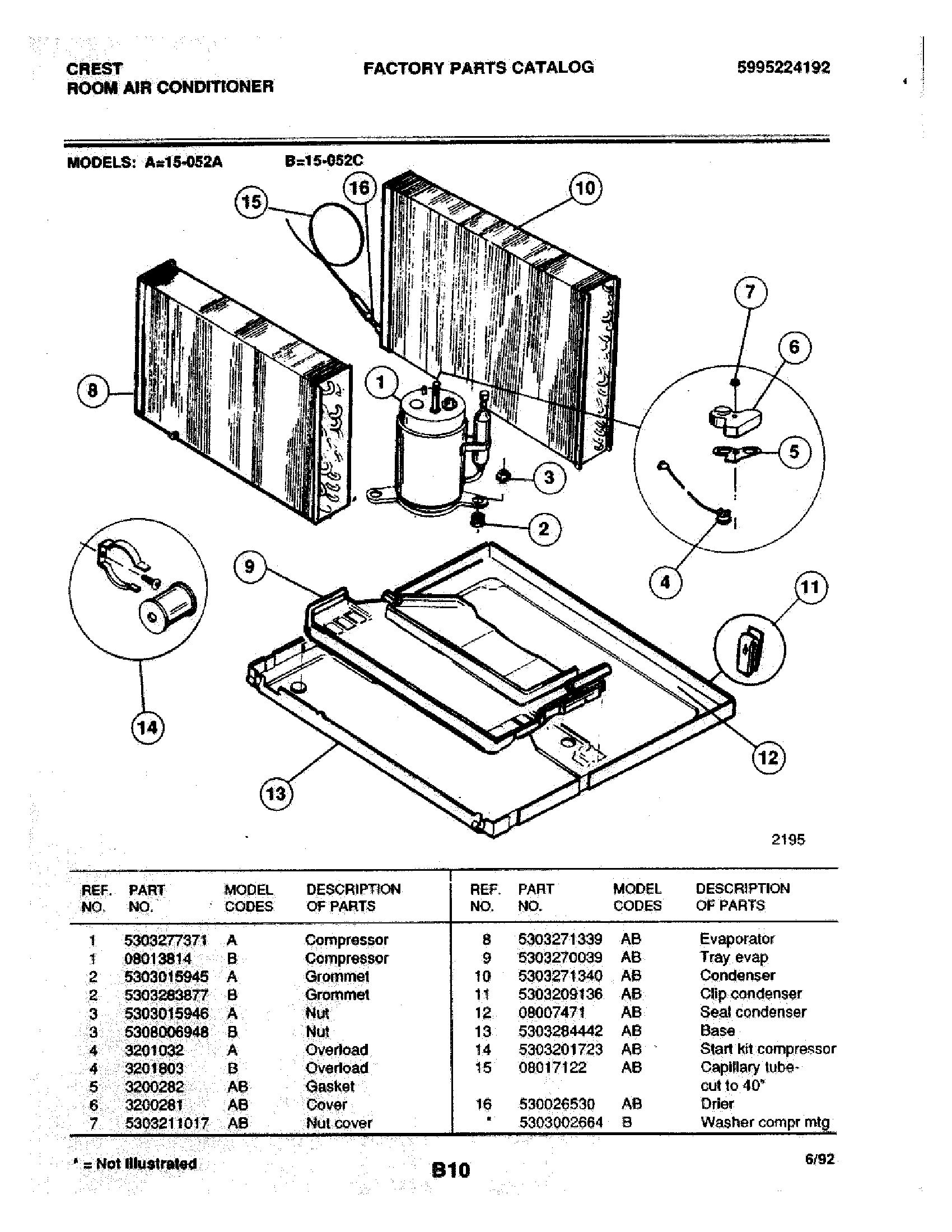

PositionProduct
1WCI 5303277371
2GROMMET
3WCI 5303015946
4FOOT BOLT (4)
5GASKET-TERMINAL
6COVER-TERMINAL
7WCI 5303211017
8WCI 5303271339
9WCI 5303270039
10WCI 5303271340
11WCI 5303209136
12WCI 08007471
13WCI 5303284442
14STARTER KIT
15CAPILLARY TUBE (CUT TO 40“)
16DRIER – FILTER
