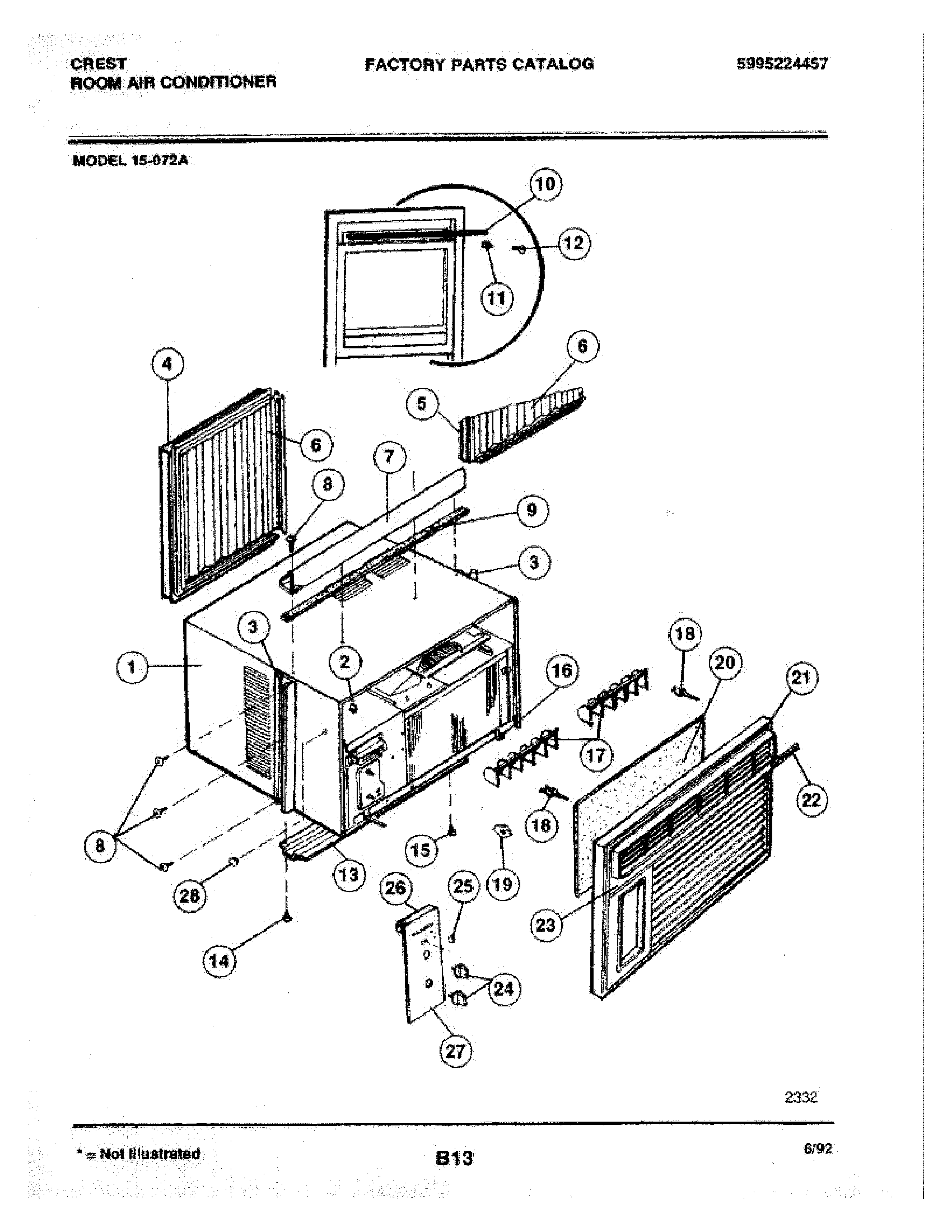

15-072A 03 – WRAPPER

15-072A 03 – WRAPPER

Written by

in

15-072A 03 – WRAPPER

Products

PositionProduct
1WCI 5303270060
2NUT – FRONT LOCK
3WCI 5303270073
4WCI 5303282370
5WCI 5303282371
6WCI 5303270075
7WCI 5303270064
8134178901 Frigidaire Screw
9WCI 08016226
105304407729 Frigidaire Air Conditioner Seal
11BRACKET
12SCREW-WOOD
13WCI 5303270072
14WCI 5308002974
15WCI 08016080
16WCI 5303001784
17LINK LOUVER
18HANDLE-LOUVER
19INSERT
20WCI 3016117
21WCI 5303289376
22WCI 08007482
23WCI 5303289377
24WCI 5303284039
25WCI 5303207312
26SEAL-DIAL PLATE
27WCI 5303289375
28SCREW
