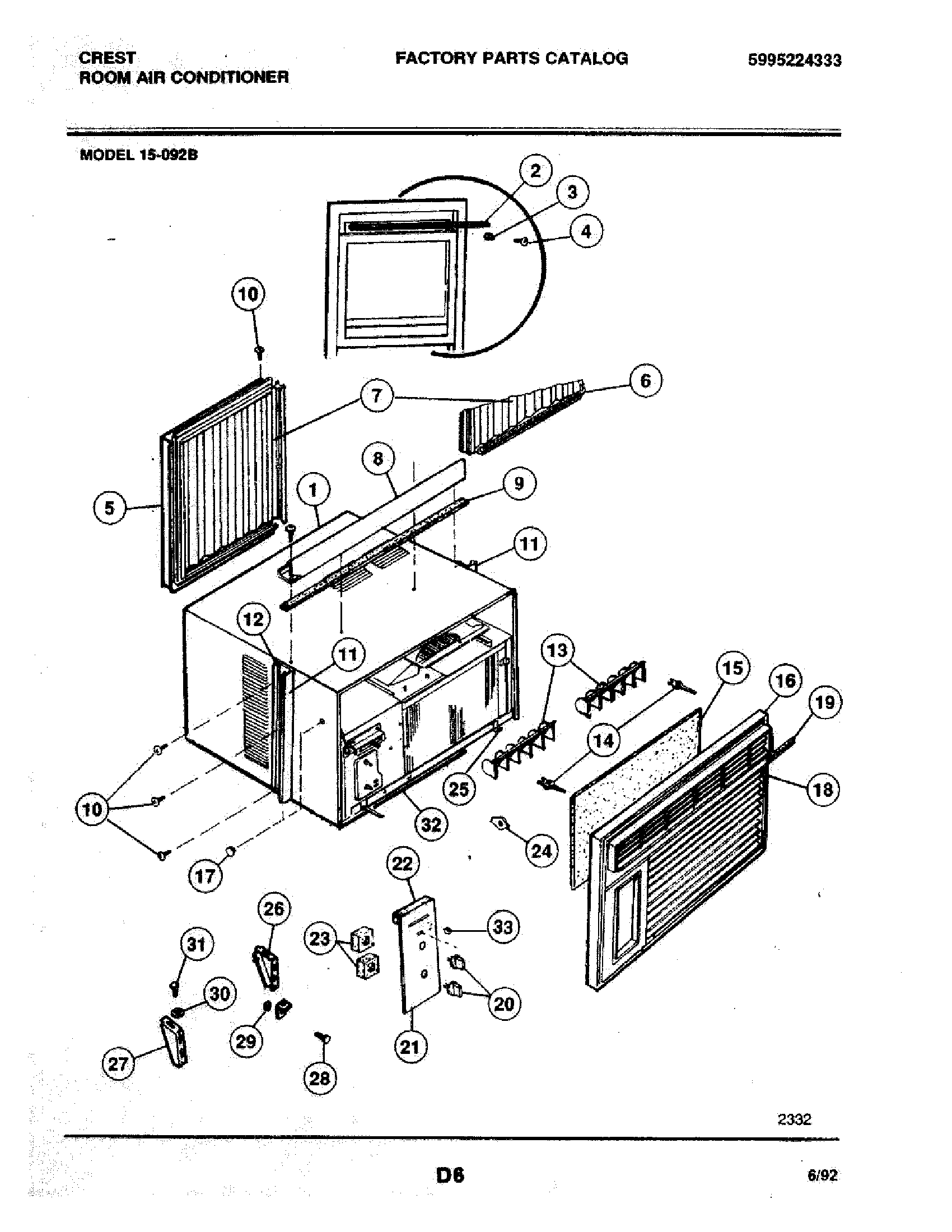

15-092B 03 – WRAPPER

15-092B 03 – WRAPPER

Written by

in

15-092B 03 – WRAPPER

Products

PositionProduct
1GRILLE-REAR (NON-ILLUSTRATED)
1WCI 5303271901
25304407729 Frigidaire Air Conditioner Seal
3BRACKET
4SCREW-WOOD
5WCI 3202964
6WCI 3203060
7WCI 5303211382
8SUPPORT-TOP
9WCI 5303207200
10134178901 Frigidaire Screw
11RETAINER, ACCORDION
12SEAL-RETAINER (NON-ILLUSTRATED)
13WCI 5303276681
14WASHER-RUBBER
14HANDLE-LOUVER
15FILTER-AIR
16WCI 5303289583
17SCREW
18WCI 5303289073
19WCI 5308014101
20WCI 5303284039
21WCI 5303289588
22WCI 5303001984
23WCI 5303001775
24INSERT
25CLIP-FRONT TO BASE
26SUPPORT-RH
27SUPPORT-LH
28SCREW – SILL SUPT
29NUT – BRACKET
30316205500 Frigidaire Oven Nut
31SCREW – SUPPORT, 4
32SEAL
33WCI 5303207312
