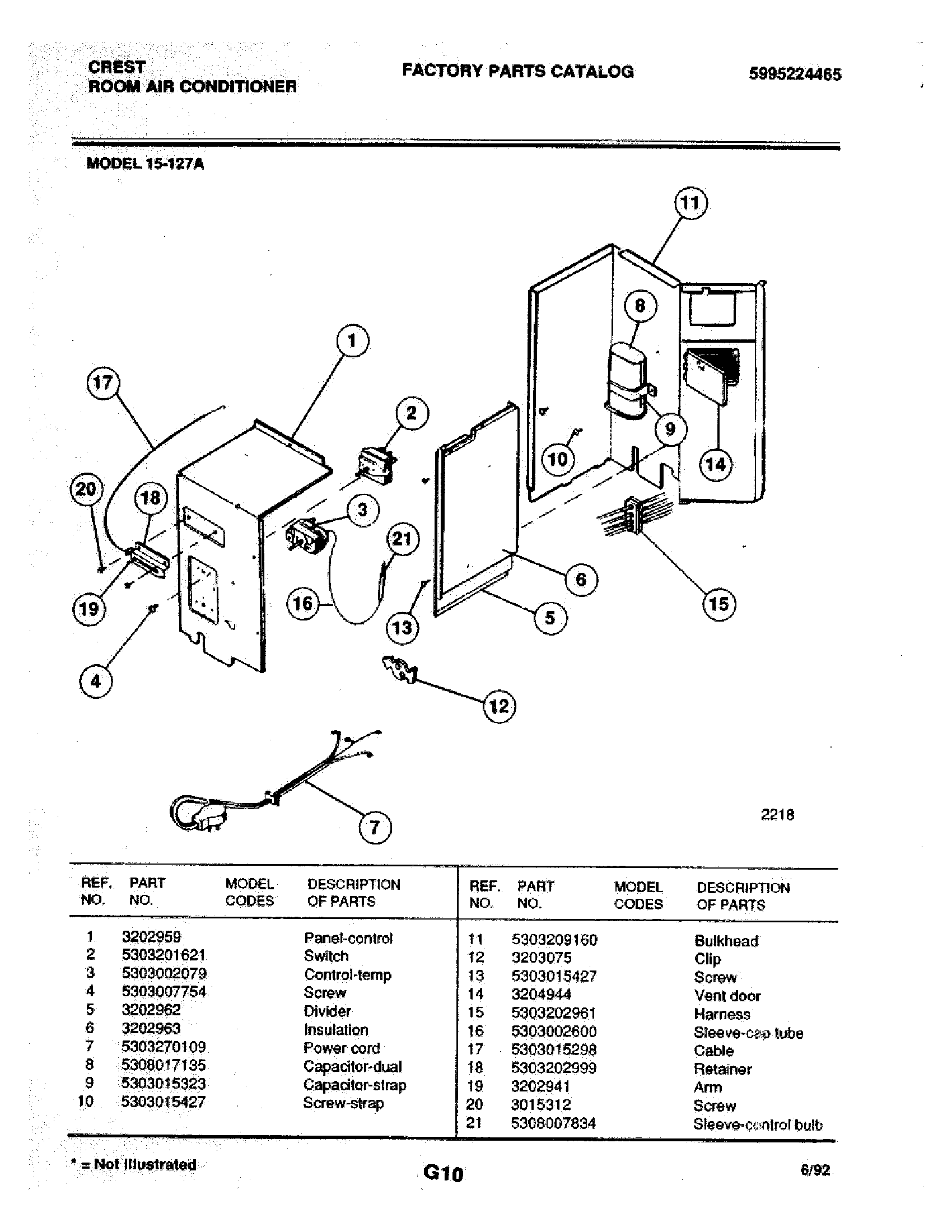

15-127A 05 – CONTROL PANEL

Written by

Products

Position	Product
1	WCI 3202959
2	WCI 5303201621
3	CONTROL
4	SCREW
5	DIVIDER
6	WCI 3202963
7	CORD-SERVICE
8	CAPACITOR
9	STRAP
11	BULKHEAD CNTRL AREA
12	CLIP-FILTER & SENSING BULB
14	WCI 3204944
15	WCI 5303202961
16	SLEEVE-CAP TUBE (NON-ILLUSTRATED)
17	WCI 5303015298
18	RETAINER
19	ACTUATOR-ARM
20	134178901 Frigidaire Screw
21	TUBE CONTROL BULB
