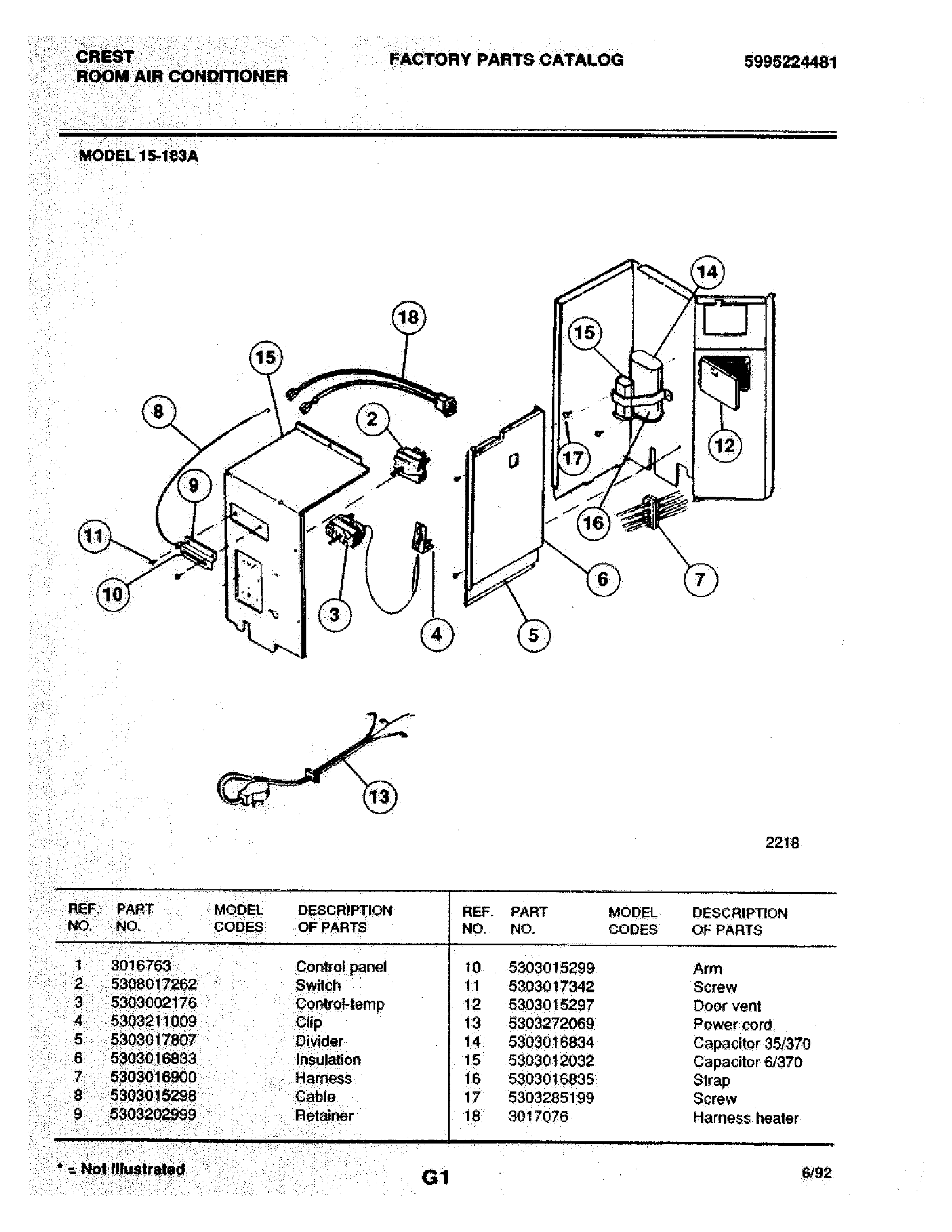

15-183A 04 – CONTROL PANEL

15-183A 04 – CONTROL PANEL

Written by

in

15-183A 04 – CONTROL PANEL

Products

Position	Product
1	WCI 3016763
2	SWITCH-SELECTOR
3	CONTROL
4	CLIP-BULB
5	DIVIDER – VERTICAL
6	INSULATION-DIVIDER
7	HARNESS-WIRE
8	WCI 5303015298
9	RETAINER
10	ARM
11	WCI 5303017342
12	WCI 5303015297
13	WCI 5303272069
14	CAPACITOR-COMP
15	CAPACITOR-FAN
16	STRAP-CAPACITOR
17	Screw,Ph truss hd ,8-18 x 0.38 ,ground
18	HARNESS-WIRE HEATER SIDE
