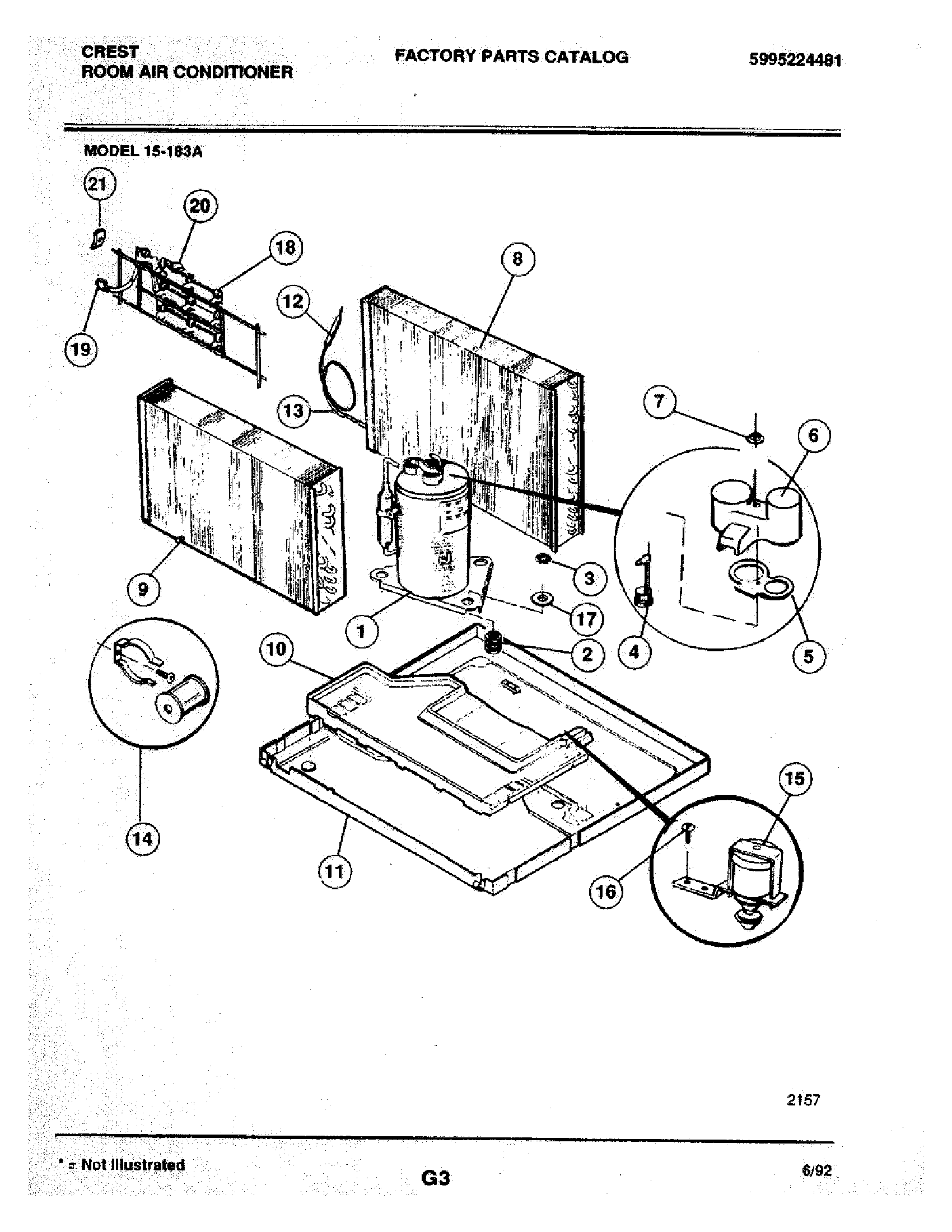

15-183A 07 – COMPRESSOR

Products

Position	Product
1	WCI 5303272312
2	GROMMET
3	WCI 5303015946
4	WCI 5303272433
5	GASKET-COVER
6	WCI 3206230
7	WCI 5303211017
8	WCI 5303208674
9	WCI 5303015457
10	WCI 5303208665
11	WCI 5303284437
12	5300265301 Frigidaire Air Conditioner P1 Filter Drier
13	CAPILLARY TUBE-CUT TO 35“
14	STARTER KIT
15	VALVE-DRAIN (NON-ILLUSTRATED)
16	SCREW-DRAIN (2)
17	WASHER,COMPRESSOR MTG
18	WCI 5303018573
19	HARNESS-WIRE HEATER TOP
20	WCI 5303018574
21	NUT-HEATER
