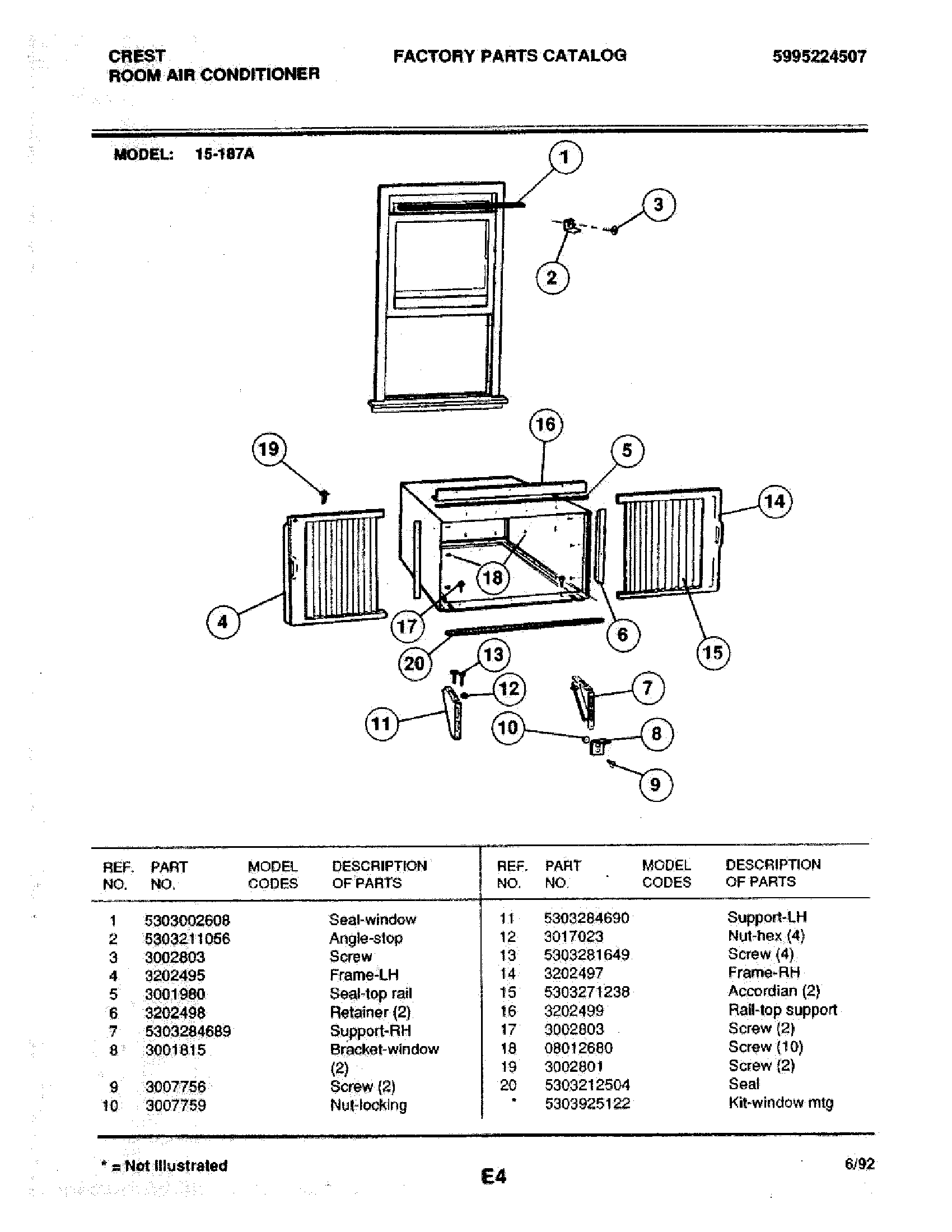

15-187A 07 – WINDOW MOUNTING ASSEMBLY

15-187A 07 – WINDOW MOUNTING ASSEMBLY

Written by

in

15-187A 07 – WINDOW MOUNTING ASSEMBLY

Products

PositionProduct
WCI 5303925122
1WCI 5303002608
2BRACKET
4WCI 3202495
5WCI 3001980
6WCI 3202498
7SUPPORT-RH
8BRACKET – SUPPORT
9SCREW – SILL SUPT
10NUT – BRACKET
11SUPPORT-LH
12316205500 Frigidaire Oven Nut
13SCREW – SUPPORT, 4
14WCI 3202497
15ACCORDIAN (2)
16ANGLE – TOP WINDOW
17SCREW-WOOD
18WCI 08012680
19WCI 3002801
20SEAL-BOTTOM
