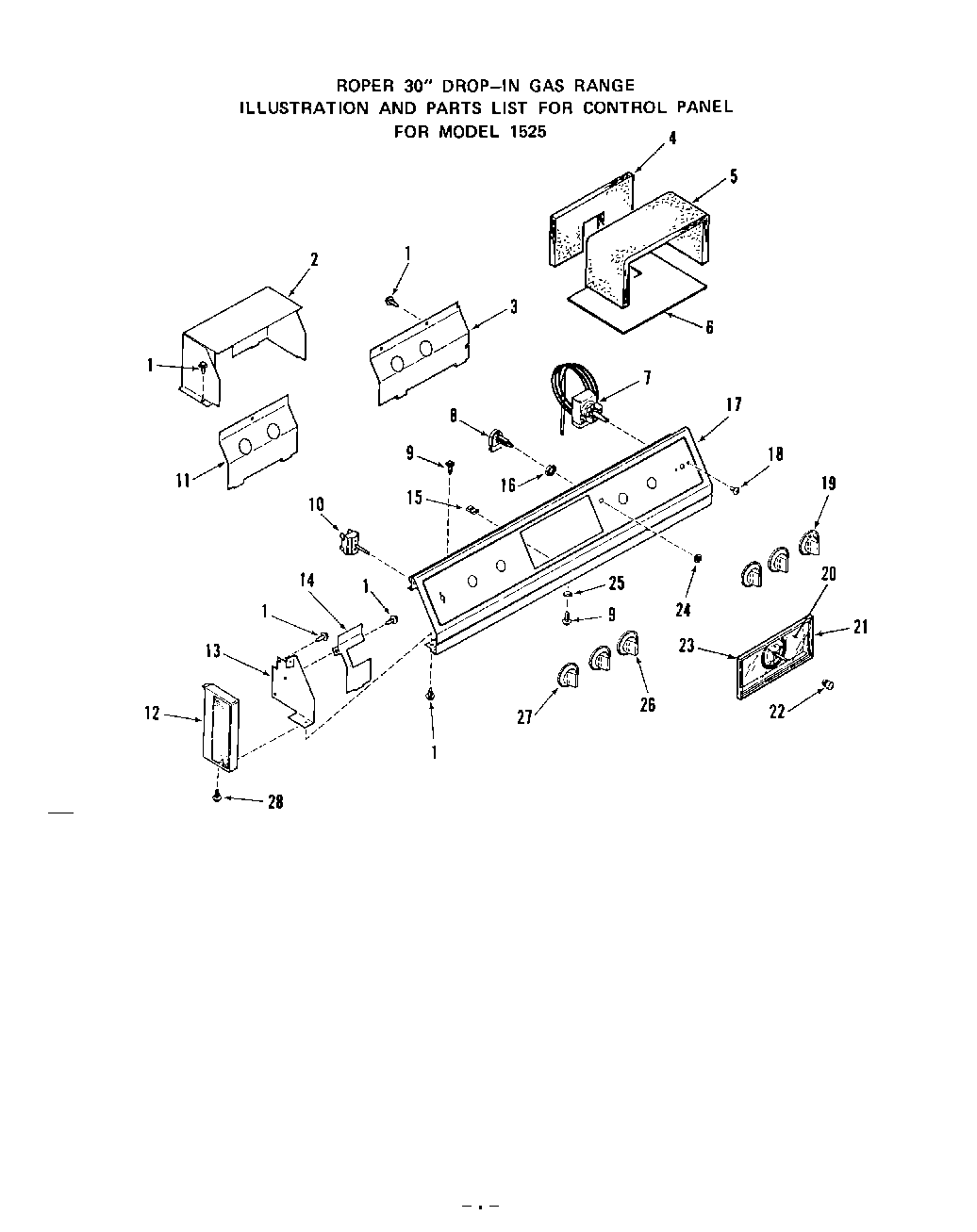

1525L0A 02 – CONTROL PANEL

Products

Position	Product
1	WP112432 Whirlpool Nut Assembly
2	Wire Cover - Control
3	Wire Cover - Right
4	Insulation - Control Cover Back
5	Insulation - Control Cover Sides
6	Shield - Oven Light
7	Oven Thermostat
8	Push Switch-Oven Light
9	Screw 10 - 32 x 17/32``
10	Selector Switch (15252A, 15253A Models)
10	Selector Switch (15250A, 15251A Models)
11	Wire Cover - Left
12	End Cap - Control Panel (Right)
12	End Cap - Control Panel (Left)
13	Mounting Bracket - End Cap (Left)
13	Mounting Bracket - End Cap (Right)
14	Wire Cover Extension
15	Speed Nut 10 - 32
16	Lock Nut
17	WPL 328150
17	Control Panel (15250A, 15251A Models)
18	Screw 8-32x1/4``
19	Knob - Thermostat
20	Clock Glass
21	Clock w/4 Hr Timer (15252A, 15253A Models)
21	Clock W/4 Hr. Timer (Inc`s. 4-7)
22	Knob-Clock (Start & Stop Time)
23	285930 Whirlpool Plate
24	Knurled Nut
25	Washer
26	Knob - Gas Valve (4 Req)
27	Knob - Selector Switch
28	Screw 10-16x7/16``
