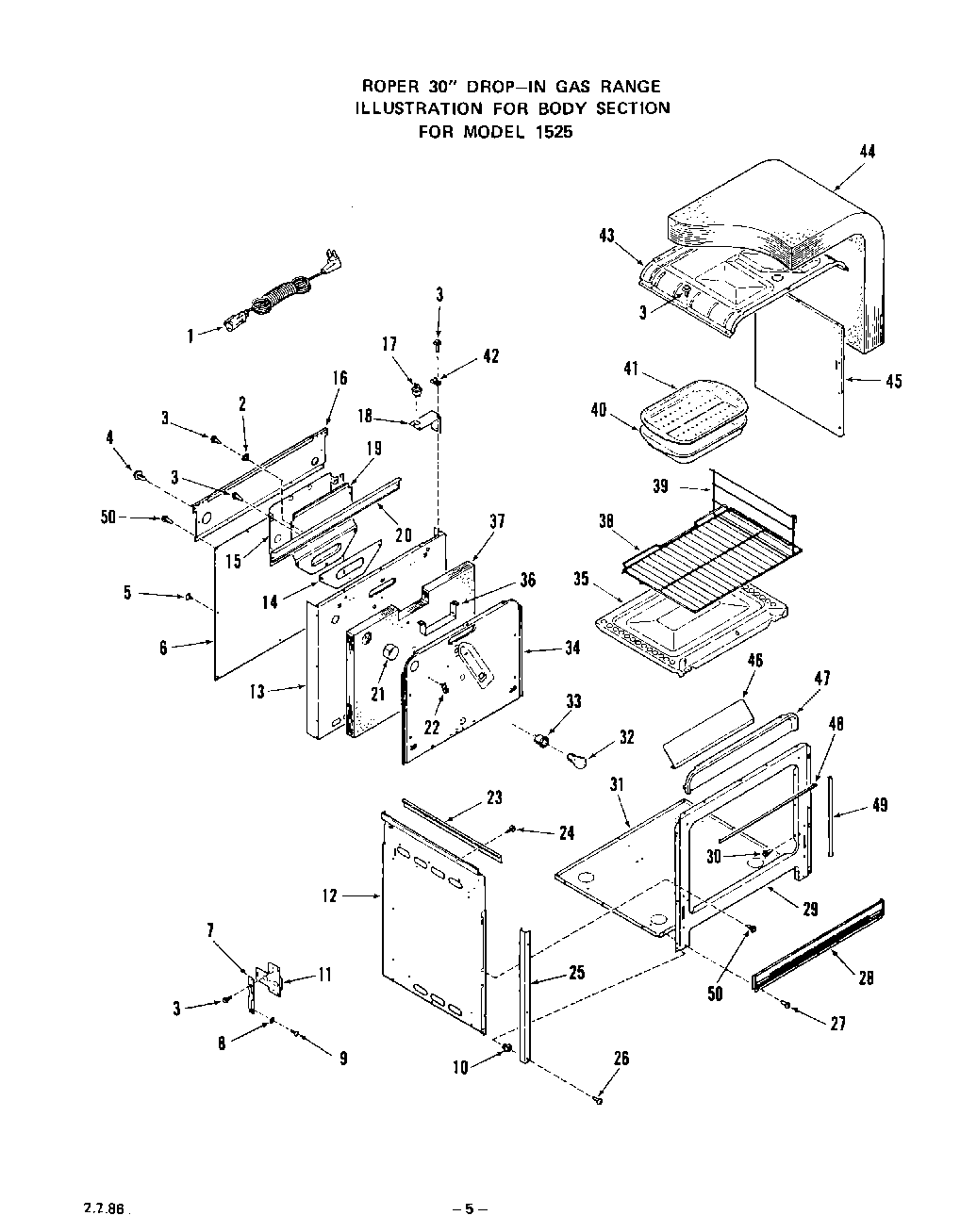

1525W0A 05 – BODY

Products

Position	Product
1	Range Service Cord
2	Lockwasher
4	Screw 10 – 32 x 1/4“
5	Clip
6	Rear Wire Cover
7	Hinge Angle – Lt or Rt
8	WPL 21067
10	BURNER RECEPTACLE KIT
11	Hinge Box Asm. Lt or Rt
12	Insulation Retainer (Right 15250A, 15251A Models)
12	Insulation Retainer (Left 15250A, 15251A Models)
12	Insulation Retainer (Left 15252A, 15253A Models)
12	Insulation Retainer (Right 152521, 15253A Models)
13	Main Back
14	Gasket – Flue Deflector
15	Shield – Flue Deflector
16	Upper Wire Cover w/Flue Insulation Asm.
17	Disconnect
18	Bracket – Module
19	Flue Deflector
20	Support – Flue
21	Insulation Retainer – Oven Light
22	Thermostat Bulb Clip (2 Required)
23	Side Trim – Burner Box Bottom (Lt or Rt)
24	Screw 10ABx1
25	Side Trim (Right)
25	Side Trim (Left)
26	Screw 8ABx5/8“
27	Screw-10-32×1/2“
28	Bottom Trim
29	Front Frame (15250A Models)
29	Front Frame (15251A, 15252A, 15253A Models)
30	Screw 10 – 32 x 17/32“
31	Main Bottom
32	Oven Lamp Bulb
33	Holder-Oven Lamp Bulb
34	Oven Back (15251A, 15252A, 15253A Models)
34	Oven Back (15250A Models)
35	Oven Bottom (15250A Models)
35	Oven Bottom (15251A, 15252A, 15253A Model
36	WPL 282156
37	WPL 315435
38	Cooktop
39	WPL 305569
39	WPL 305568
40	WPL 293098
40	WPL 331592
41	WPL 326297
41	WPL 293099
42	Clip
43	WPL 332366
43	WPL 328853
44	WPL 282636
45	WPL 332364
45	WPL 332365
45	WPL 328852
45	WPL 328851
46	WPL 281574
47	WPL 288762
47	WPL 332368
48	WPL 305065
49	WPL 292912
50	WP112432 Whirlpool Nut Assembly
