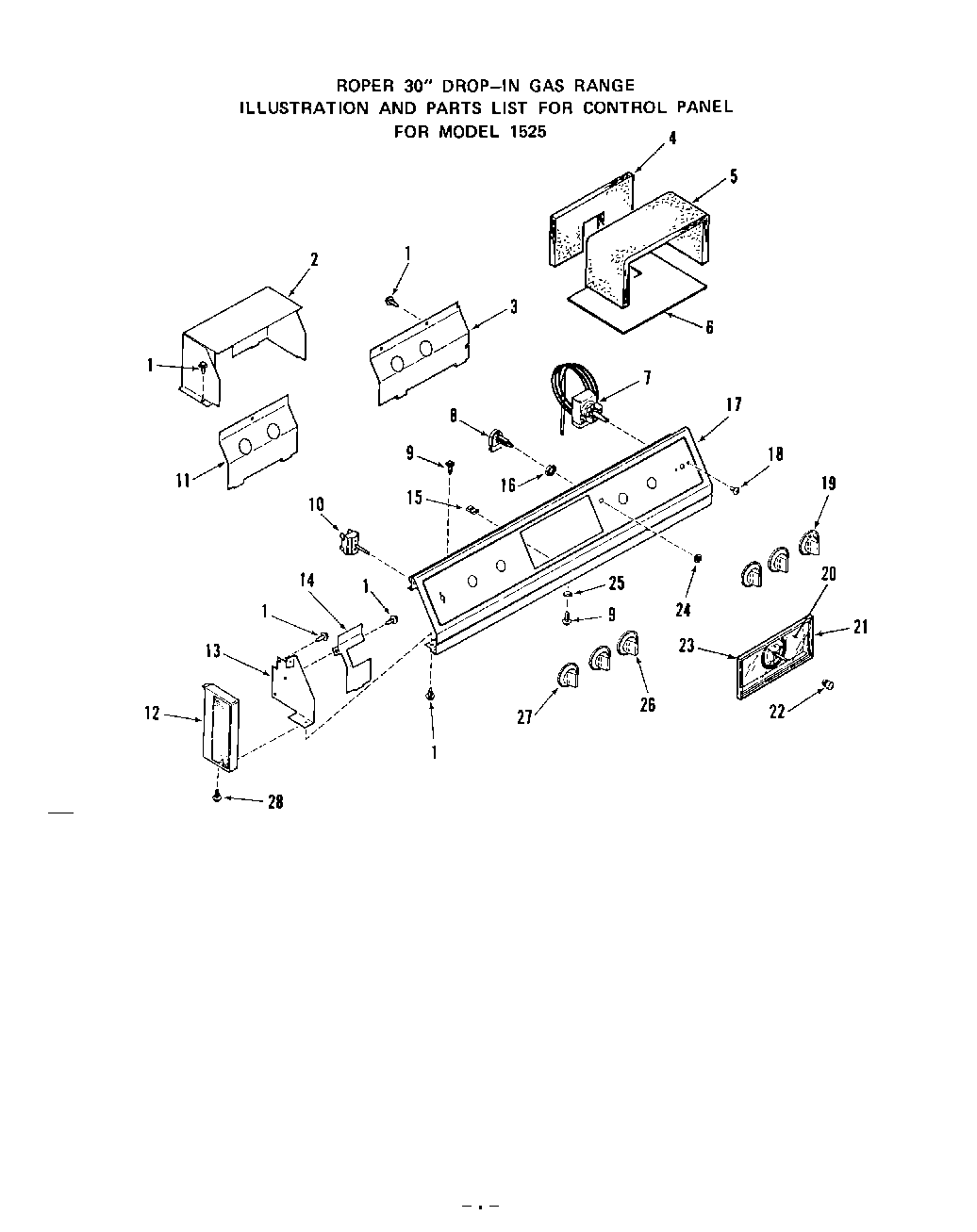

1525W1A 02 – CONTROL PANEL

Products

Position	Product
1	WP112432 Whirlpool Nut Assembly
2	Wire Cover – Control
3	Wire Cover – Right
4	Insulation – Control Cover Back
5	Insulation – Control Cover Sides
6	Shield – Oven Light
7	Oven Thermostat
8	Push Switch-Oven Light
9	Screw 10 – 32 x 17/32“
10	Selector Switch (15252A, 15253A Models)
10	Selector Switch (15250A, 15251A Models)
11	Wire Cover – Left
12	End Cap – Control Panel (Right)
12	End Cap – Control Panel (Left)
13	Mounting Bracket – End Cap (Left)
13	Mounting Bracket – End Cap (Right)
14	Wire Cover Extension
15	Speed Nut 10 – 32
16	Lock Nut
17	WPL 328150
17	Control Panel (15250A, 15251A Models)
18	Screw 8-32×1/4“
19	Knob – Thermostat
20	Clock Glass
21	Clock w/4 Hr Timer (15252A, 15253A Models)
21	Clock W/4 Hr. Timer (Inc`s. 4-7)
22	Knob-Clock (Start & Stop Time)
23	285930 Whirlpool Plate
24	Knurled Nut
25	Washer
26	Knob – Gas Valve (4 Req)
27	Knob – Selector Switch
28	Screw 10-16×7/16“
