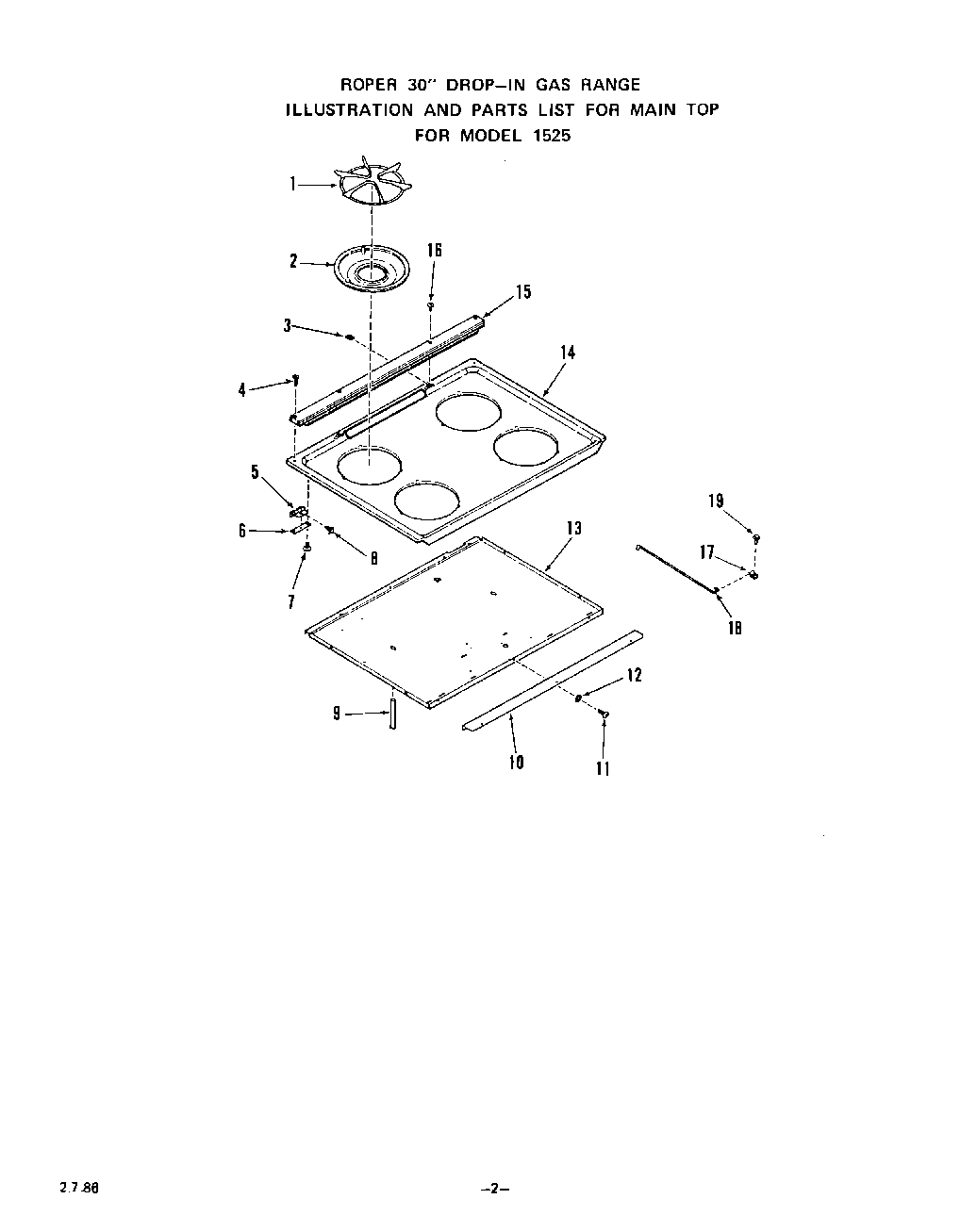

1525W1A 03 – MAINTOP

Products

Position	Product
1	8544761A Whirlpool Exhaust Extension
1	Top Grate (4 Required)
2	Aeration Pan 15252A, 3A Models
3	Speed Nut 6-32
4	Screw 6 – 32×7/8“
5	Hinge (Lt or Rt)
6	Mounting Bracket – Hinge (Lt or Rt)
7	Screw 6-32×3/16“
8	WP112432 Whirlpool Nut Assembly
9	Raceway – Lt or Rt
10	Extension – Burner Box Bottom (15250A Models)
10	Extension – Burner Box Bottom (15251A, 15252A, 15253A Models)
11	Screw 10 – 32 x 17/32“
12	Washer
13	Bottom Burner Box (15250A Models)
13	Bottom Burner Box (15251A, 15252A, 15253A Models)
14	Top – Main (Almond 15252A, 15253A Models)
14	Top – Main (Almond 15250A, 15251A Models)
14	Top – Main (White 15250A, 15251A Models)
14	Top – Main (White 15252A, 15253A Models)
15	Flue Trim Asm.
16	Screw 6-32×1/2“
17	Clip
18	Support – Main Top
19	Screw 10-16×7/16“
