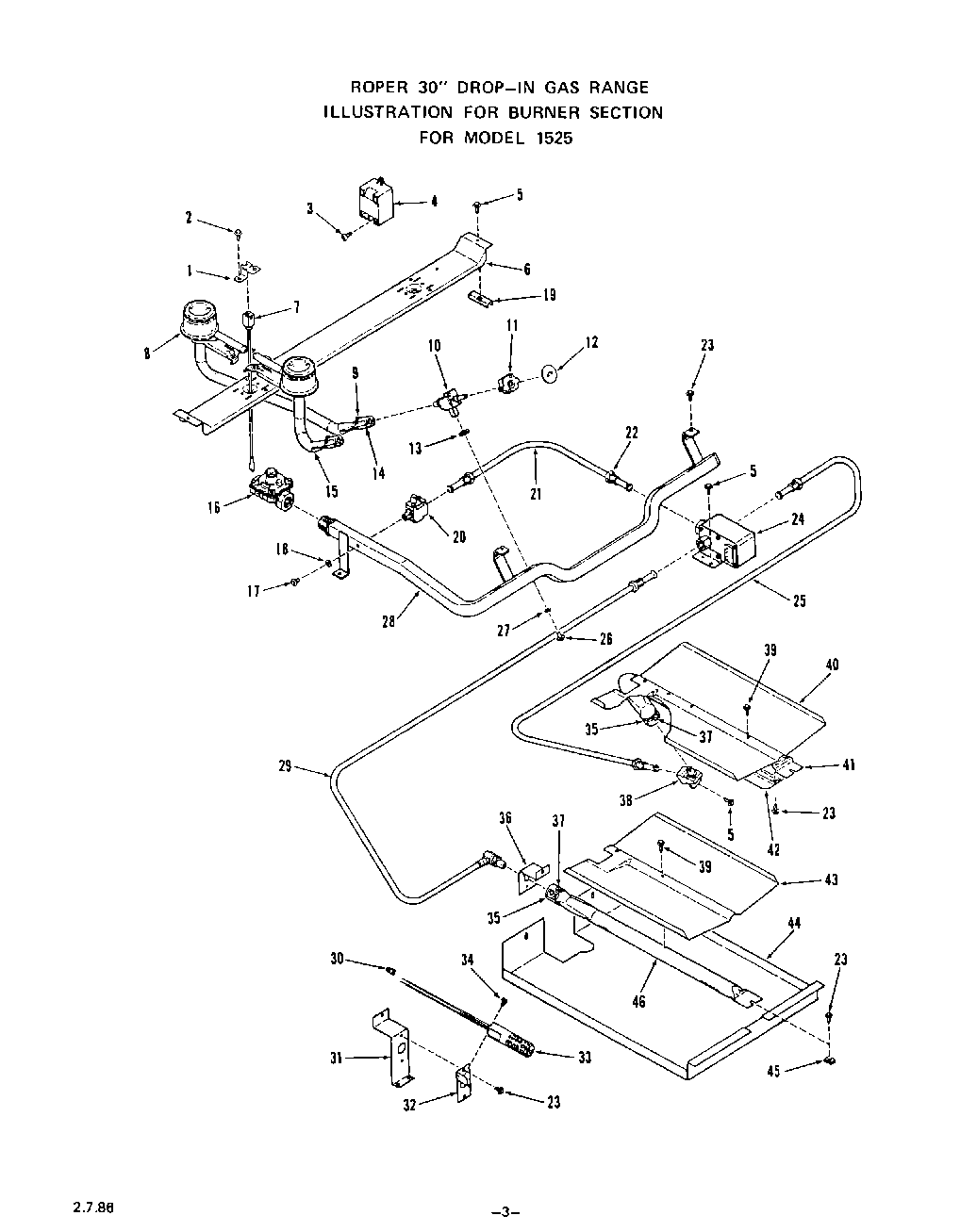

1525W2A 04 – BURNER

Products

Position	Product
1	panel, side l.h. (almond panel, side r.h.)
2	Screw 10-16×7/16“
3	Screw 6-32×3/8“
4	Spark Module
5	WP112432 Whirlpool Nut Assembly
6	Support – Top Burner
7	Right
7	Panel, Side L.H. (Platinum Panel, Side R.H.)
8	Rear Top Burner (Lt or Rt)
9	Adjustment Screw-Air Shutter
10	Gas Valve (4 Req)
11	Switch-Gas Valve (4 Req)
12	Shield – Gas Value (4 Req)
13	Silicone Rubber Gasket
14	Air Shutter
15	Front Top Burner
16	Pressure Regulator
19	Spacer – Burner Support
20	Shut Off Valve
21	Tubing 3/8“ (Control Valve to Broiler Orifice)
22	Inverted Nut 3/8“
23	Screw 10 – 32 x 17/32“
24	Control Valve
25	Tubing 3/8“ (Control Valve to Broiler Burner)
26	Mounting Screw (Inc`s 86)
27	Silicone Rubber Gasket (For Key 26)
28	Manifold Pipe
29	Tubing 3/8“ w/Orifice (Control Valve to Oven Burner)
30	Wire Connector (4 Req)
31	Mounting Bracket
32	Bracket-Igniter
33	Igniter – Bake or Broil
34	Screw 10 – 32 x 1/4“
35	Air Shutter
36	Bracket – Orifice Fitting (Oven Burner)
37	Adjustment Screw -Air Shutter
38	Orifice Fitting – Broiler Burner
39	Screw 8 – 32×3/8“
40	Upper Baffle – Broil
41	WPL 318758
42	WPL 302904
43	WPL 316344
44	WPL 313999
45	Speed Nut 10 – 32
46	WPL 316824
