1525W3A 06 – OVEN DOOR, LIT/OPTIONAL

1525W3A 06 – OVEN DOOR, LIT/OPTIONAL

Written by

in

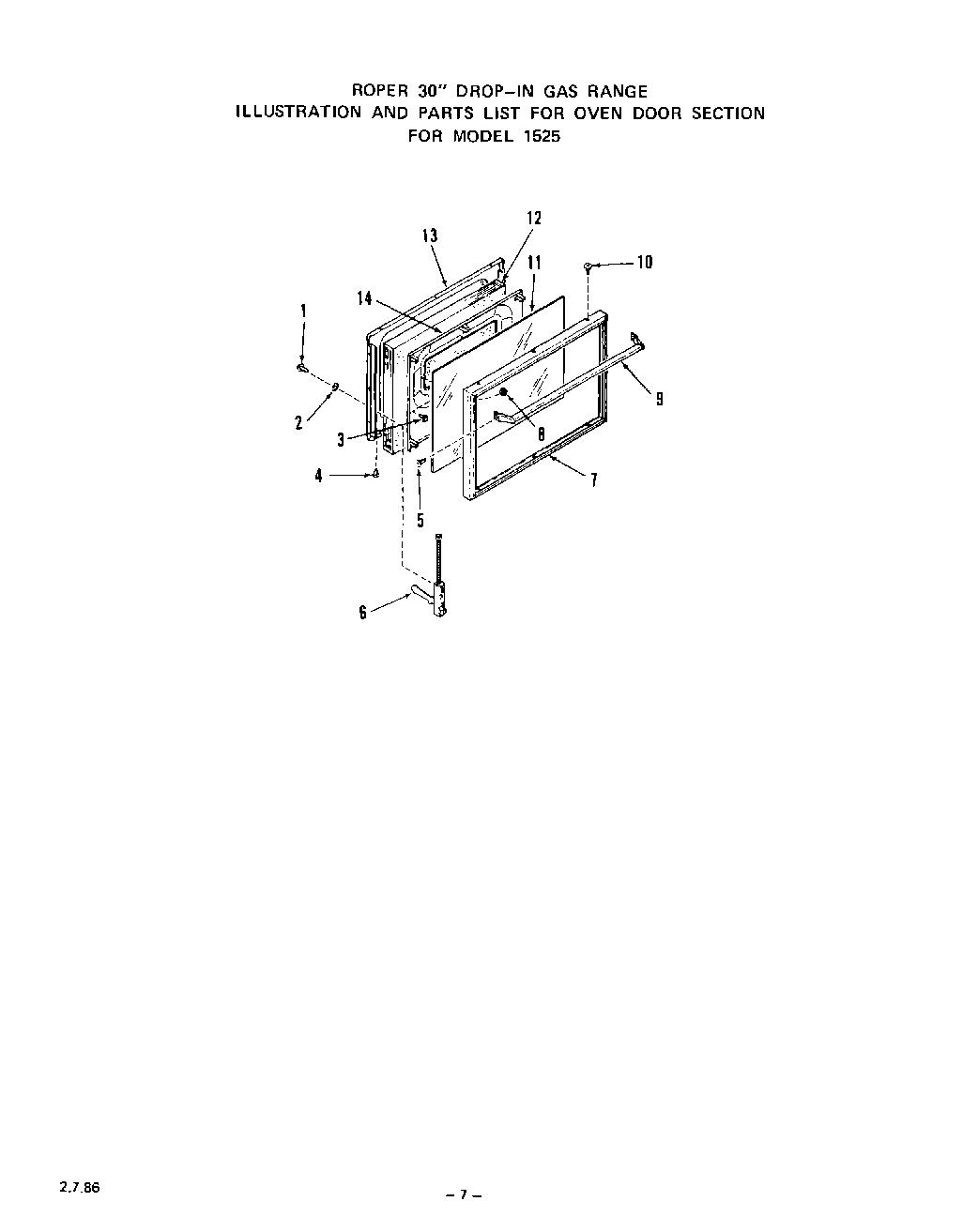

1525W3A 06 – OVEN DOOR, LIT/OPTIONAL

Products

PositionProduct
Main 15250A, 15251A Models
1Screw 10-32×5/16“
2Washer
3Screw 10 – 32×3/8“
4Screw 10-32×3/8“
5Screw 8-32 x 1/2“
6Hinge – Oven Door (Lt or Rt)
7Frame – Oven Door
8Keps Nut 8-32
9Handle-Oven Door
10Screw
11Oven Door Glass
12Insulation
13Lining – Oven Door (15250A Models)
13Lining – Oven Door (15251A, 15252A, 15253A Models)
14Repair Parts List
14Main 15252A, 15253A Models
14Gas Use & Care Guide
14Operating Guide
14Installation Guide
14Insulation Retainer
14Switches – Gas Valve
14xWire Harness
