154510 CONTROL PANEL & COOKTOP

154510 CONTROL PANEL & COOKTOP

Written by

in

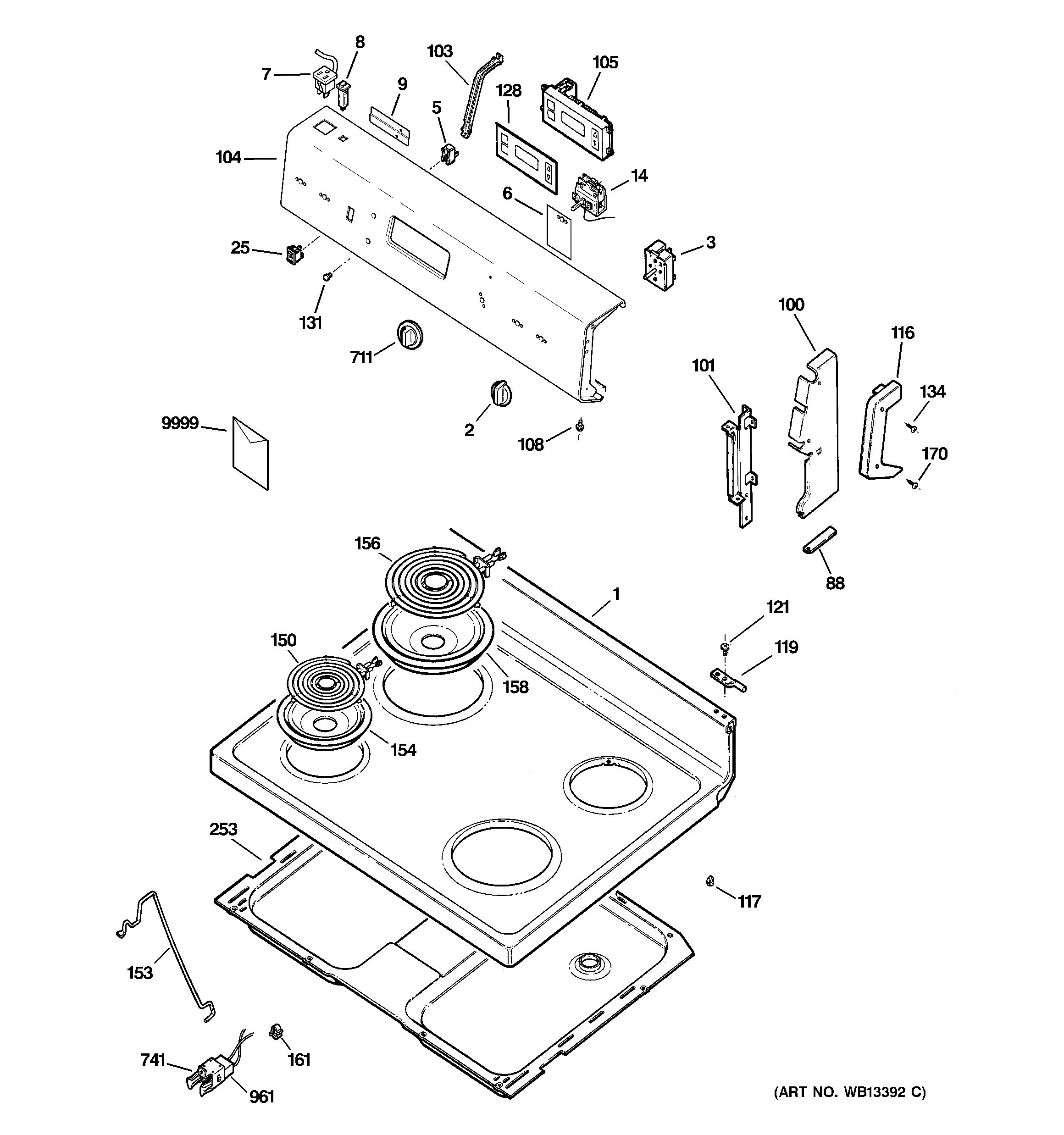

154510 CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10080 GE Range White Top
2WB03T10076 GE Oven Knob
3WB24T10029 GE Oven Infinite Burner Switch
3WB24T10025 SWITCH INFIN(2500W)
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
6GEN WB37K10011
7GEN WB37K10006
8GEN WB37K10010
9GEN WB37K10008
14WB20K10004 GE Stove Range Oven Thermostat
14CLIP THERMOMSTAT
14WB02K10070 GE Oven Thermostat Carton Cover
25WB24K5022 GE Oven Rocker Switch
88PAD
100GEN WB07K10002
100GEN WB07K10001
101GEN WB37K0017
101GEN WB37K0018
103GEN WB02K10027
104GEN WB36K10508
105WB27T10469 GE Oven Timer Control Board
108WB1X5364 GE Oven Mounting Screw
116WB07K10005 GE Oven Right Endcap
116WB07K10007 GE Oven Endcap Left
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
128GEN WB11K10034
131WB25T10041 GE Oven Lens
134GEN WB01K10004
150WB30T10076 GE Range Stove Cooktop 6" SURFACE ELEMENT
153WB02K10026 GE Oven Rod Support
154WB31T10014 GE Oven 6-Inch Black Drip Bowl
156WB03T10167 GE Range Stove Cooktop 8" Surface Burner Element 5 Turn
158WB31T10015 8" BOWL BLACK REAR BUBBLE
161CLIP WIRE
170GEN WB01X5874
253GEN WB64K10002
711GEN WB03K10188
741RECEPTACLE W/CLIP
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 49-88017
9999GEN 31-21175
