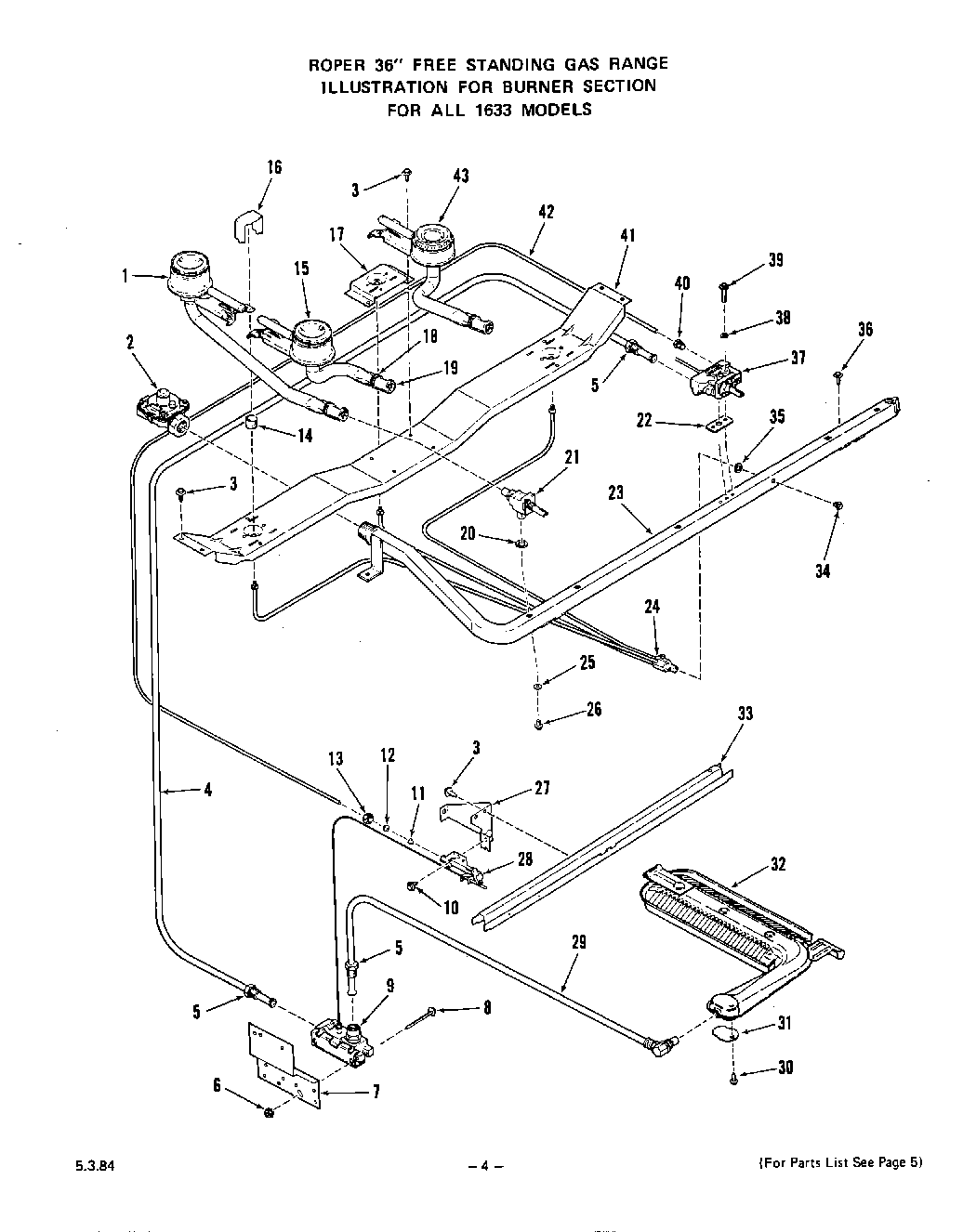

| 1 | Rear Top Burner-Lt. or Rt. (Inc`s. 18 & 19) |
| 2 | Pressure Regulator |
| 3 | WP112432 Whirlpool Nut Assembly |
| 4 | Tubing 3/8`` |
| 5 | Inverted Nut 3/8`` |
| 6 | Keps Nut 10-32 |
| 7 | Bracket-Control Valve |
| 8 | Screw 10-32 x 2`` |
| 9 | Oven Control Valve |
| 10 | Screw 10-32x17/32`` |
| 11 | Orifice Cup Only (For 94) |
| 12 | Compression Ball Sleeve 3/16`` |
| 13 | Compression Nut 3/16`` |
| 14 | Pilot Cup (3 Req) |
| 15 | Front Top Burner-Lt. or Rt. (Inc`s. 18 & 19) |
| 16 | Top Pilot Shield (3 Req) |
| 17 | Bracket-Griddle Burner Pilot |
| 18 | Adjustment Screw-Air Shutter |
| 19 | Air Shutter |
| 20 | Silicone Rubber Gasket |
| 21 | Gas Valve (5 Req) |
| 22 | Silicone Rubber Gasket |
| 23 | Manifold Pipe |
| 24 | Filter w/Pilot |
| 25 | Silicone Rubber Gasket (For Key 26) |
| 26 | Mounting Screw (Inc`s 86) |
| 27 | Bracket-Oven Pilot |
| 28 | Pilot Only (Inc`s 90) |
| 29 | Tubing 3/8`` w/Orifice |
| 30 | Screw 10 - 32 x 1/4`` |
| 31 | Air Shutter |
| 32 | Oven Burner |
| 33 | Support-Oven Burner |
| 34 | Mounting Screw 5/16-24 |
| 35 | Gasket |
| 36 | WPL 316365 |
| 37 | Oven Thermostat |
| 38 | Gasket (For 83) |
| 39 | Mounting Screw (2 Req. for 114) |
| 40 | Loxit Nut 3/16`` |
| 41 | Support-Top Burner |
| 42 | Tubing 3/16`` -Oven Therm. To Oven Control Pilot |
| 43 | Griddle Burner |
