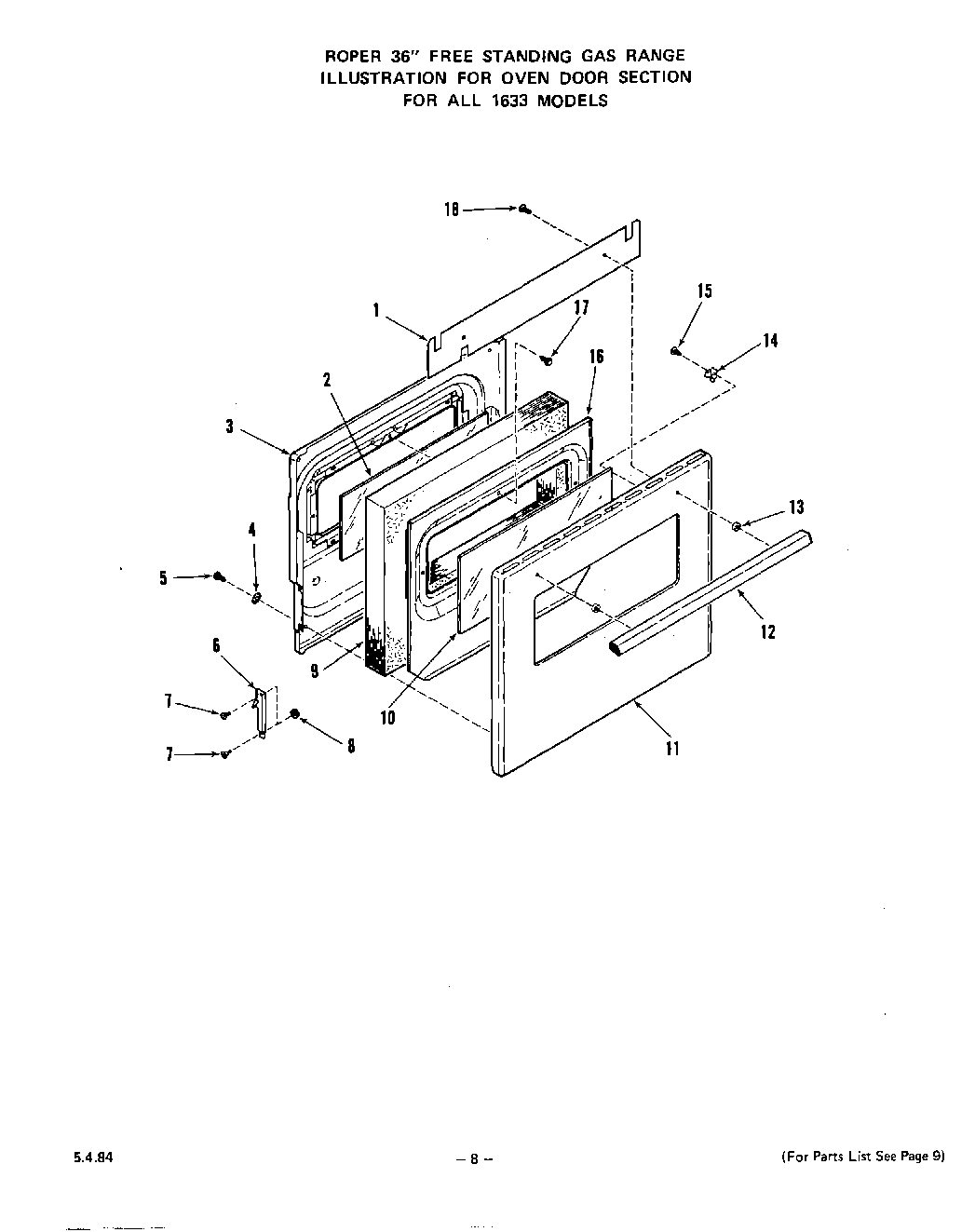

1633^1A 06 – OVEN DOOR

Products

Position	Product
1	Heat Deflector
2	Oven Door Glass-Inner
3	Lining-Oven Door
4	WPL 21067
5	Screw 10-32 x 1/2“
6	Hinge Arm Guide (Left)
6	Hinge Arm Guide (Right)
7	Shoulder Rivet
8	Keps Nut 10-32
9	Insulation
10	Oven Door Glass-Outer
11	Front Panel-Oven Door (Almond 1633L0A)
11	Front Panel-Oven Door (White 1633W1A, W2A)
11	Front Panel-Oven Door (Coffee 1633C1A, C2A)
11	Front Panel-Oven Door (Golden Wheat 1633H1A, H2A)
11	Front Panel-Oven Door (Avocado 1633A1A, A2A)
11	Front Panel-Oven Door (Almond 1633L1A, L2A)
11	Front Panel-Oven Door (Golden Wheat 1633H0A)
11	Front Panel-Oven Door (Avocado 1633A0A)
11	Front Panel-Oven Door (Coffee 1633C0A)
11	Front Panel-Oven Door (White 1633W0A)
12	WPL 309872
13	Spacer
14	Retainer-Door Glass (2 Req)
15	Screw 10-32×3/8“
16	Retainer-Oven Door Insulation
17	Screw 10 – 32×3/8“
18	Screw 10 – 32 x 1/2“
