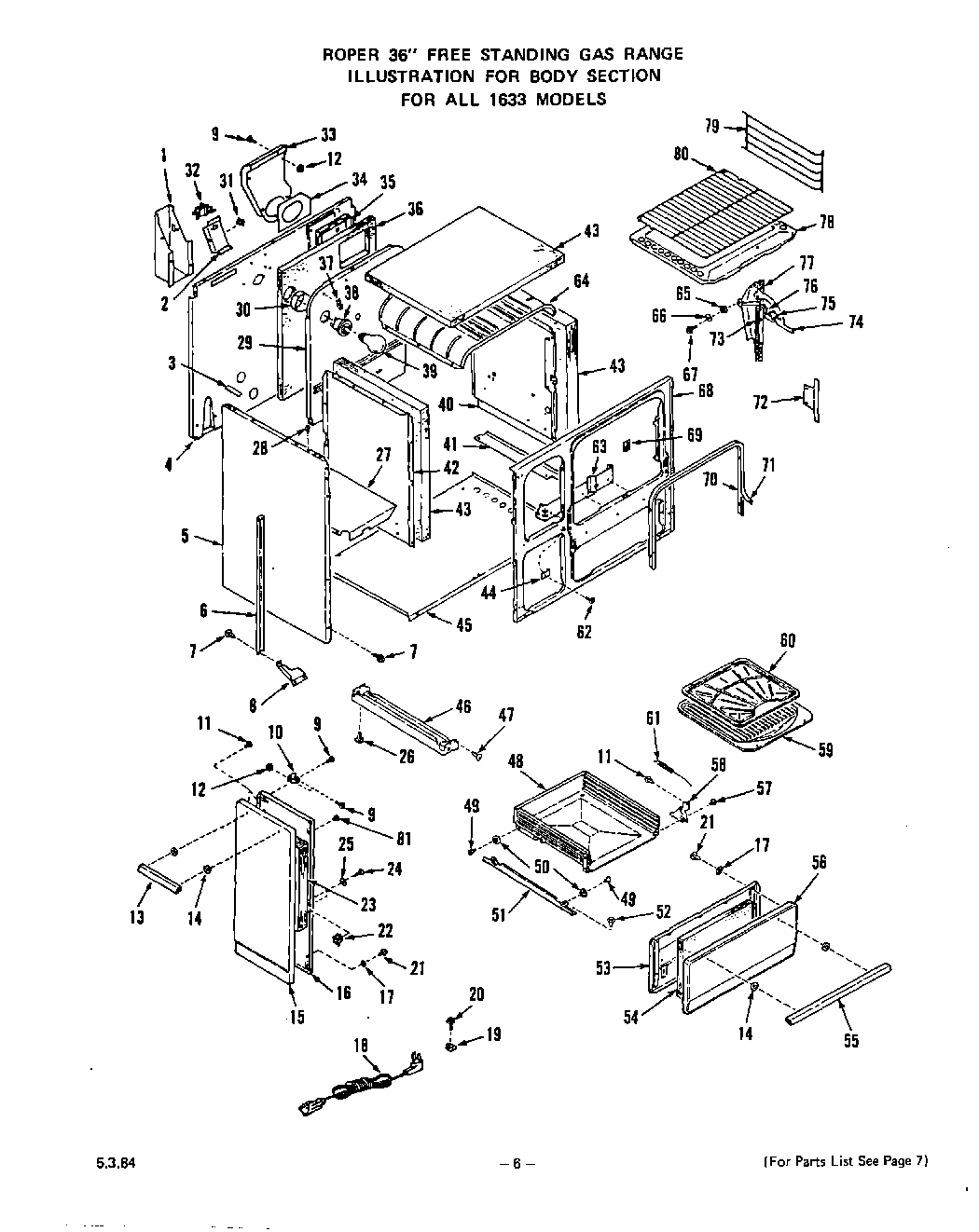

| 1 | Wire Cover |
| 2 | Wire Cover Front |
| 3 | Spacer-Main Top |
| 4 | Main Back |
| 5 | Body Side -Lt. or Rt. (Coffee) |
| 5 | Body Side -Lt. or Rt. (Avocado) |
| 5 | Body Side -Lt. or Rt. (Golden Wheat) |
| 5 | Body Side -Lt. or Rt. (Almond) |
| 5 | Body Side -Lt. or Rt. (White) |
| 6 | Stiffener - Body Side (Lt. or Rt.) |
| 7 | Screw 10-32x17/32`` |
| 8 | Lower Support - Body Side (Right) |
| 8 | Lower Support - Body Side (Left) |
| 9 | Screw 10-24x1/2`` |
| 10 | Hinge-Compartment Door (2 Req) |
| 11 | Screw 10 - 32 x 1/2`` |
| 12 | Keps Nut 10-24 |
| 13 | Handle-Compartment Door |
| 14 | Spacer |
| 15 | Front Panel-Compartment Door (Avocado 1633A1A, A2A) |
| 15 | Front Panel-Compartment Door (Coffee 1633C1A, C2A) |
| 15 | Front Panel-Compartment Door (White 1633W1A, W2A) |
| 15 | Front Panel-Compartment Door (Almond 1633L0A) |
| 15 | Front Panel-Compartment Door (Golden Wheat 1633H1A, H2A) |
| 15 | Front Panel-Compartment Door (Golden Wheat 1633H0A) |
| 15 | Front Panel-Compartment Door (Avocado 1633A0A) |
| 15 | Front Panel-Compartment Door (Coffee 1633C0A) |
| 15 | Front Panel-Compartment Door (White 1633W0A) |
| 15 | Front Panel-Compartment Door (Almond 1633L1A, L2A) |
| 16 | Lining-Compartment Door (16331A,2A |
| 16 | Lining-Compartment Door (16330A Models) |
| 17 | WPL 21067 |
| 18 | Range Service Cord |
| 19 | Clip |
| 20 | WPL 295850 |
| 21 | Screw 10-32 x 1/2`` |
| 22 | WPL 88465 |
| 23 | WPL 325710 |
| 24 | Screw 6-32 x 5/16`` |
| 25 | WPL 66030 |
| 26 | Leg Leveler (4 Required) |
| 27 | WPL 325246 |
| 28 | WPL 301769 |
| 29 | WPL 326352 |
| 30 | WPL 233361 |
| 31 | Clip |
| 32 | Disconnect |
| 33 | WPL 300987 |
| 34 | WPL 102007 |
| 35 | WPL 102015 |
| 36 | WPL 102202 |
| 37 | Thermostat Bulb Clip (2 Required) |
| 38 | Holder-Oven Lamp Bulb |
| 39 | Oven Lamp Bulb |
| 40 | WPL 294095 |
| 40 | WPL 294094 |
| 41 | WPL 68654 |
| 42 | WPL 327109 |
| 43 | WPL 102199 |
| 44 | WPL 88462 |
| 45 | WPL 325199 |
| 45 | WPL 328514 |
| 46 | WPL 312908 |
| 47 | WPL 71206 |
| 48 | Broiler Drawer (Inc`s. 136 & 140) |
| 49 | Shoulder Rivet |
| 50 | Roller |
| 51 | WPL 97820 |
| 51 | WPL 97819 |
| 52 | WP112432 Whirlpool Nut Assembly |
| 53 | WPL 325072 |
| 54 | WPL 87579 |
| 55 | WPL 309872 |
| 56 | WPL 328504 |
| 56 | WPL 328503 |
| 56 | WPL 328502 |
| 56 | WPL 325065 |
| 56 | WPL 325066 |
| 56 | WPL 325067 |
| 56 | WPL 325068 |
| 56 | WPL 325069 |
| 56 | WPL 328500 |
| 56 | WPL 328501 |
| 57 | Shoulder Rivet |
| 58 | Left |
| 58 | Right |
| 59 | Broiler Pan |
| 60 | Broiler Pan Grid |
| 61 | Spring - Broiler Door (Rt or Lt) |
| 62 | WPL 88463 |
| 63 | WPL 325197 |
| 64 | WPL 294096 |
| 65 | WPL 69459 |
| 66 | WPL 323451 |
| 67 | WPL 69457 |
| 68 | WPL 325142 |
| 69 | WPL 112938 |
| 70 | WPL 87936 |
| 71 | WPL 294564 |
| 72 | WPL 87820 |
| 73 | WPL 327300 |
| 74 | WPL 230981 |
| 74 | WPL 230980 |
| 75 | WPL 97697 |
| 75 | WPL 97696 |
| 76 | WPL 324047 |
| 76 | WPL 324048 |
| 77 | WPL 68629 |
| 77 | WPL 69925 |
| 78 | WPL 300766 |
| 79 | WPL 306148 |
| 80 | WPL 305751 |
| 81 | WPL 286683 |
