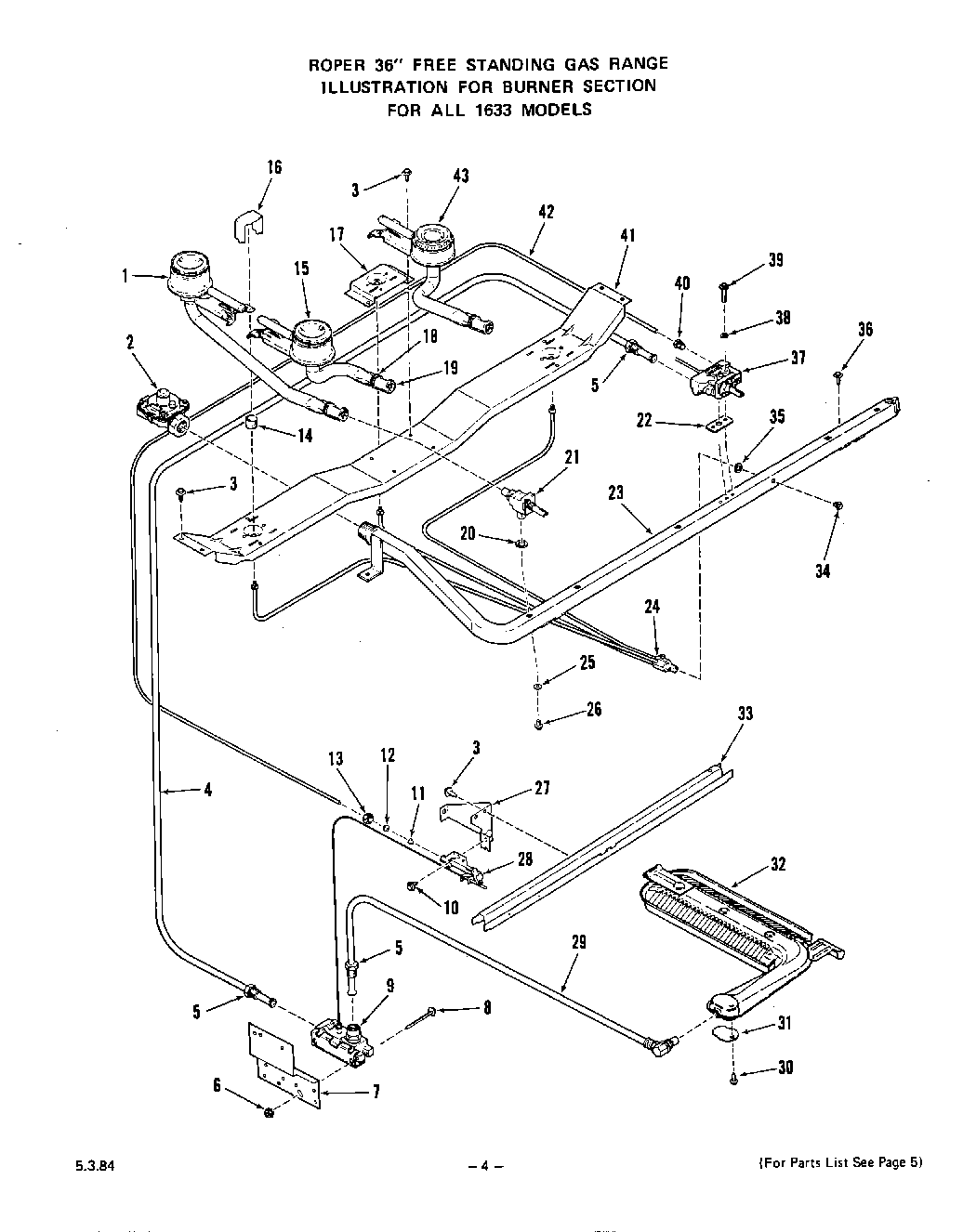

1633W2A 04 – BURNER

Products

Position	Product
1	Rear Top Burner-Lt. or Rt. (Inc`s. 18 & 19)
2	Pressure Regulator
3	WP112432 Whirlpool Nut Assembly
4	Tubing 3/8“
5	Inverted Nut 3/8“
6	Keps Nut 10-32
7	Bracket-Control Valve
8	Screw 10-32 x 2“
9	Oven Control Valve
10	Screw 10-32×17/32“
11	Orifice Cup Only (For 94)
12	Compression Ball Sleeve 3/16“
13	Compression Nut 3/16“
14	Pilot Cup (3 Req)
15	Front Top Burner-Lt. or Rt. (Inc`s. 18 & 19)
16	Top Pilot Shield (3 Req)
17	Bracket-Griddle Burner Pilot
18	Adjustment Screw-Air Shutter
19	Air Shutter
20	Silicone Rubber Gasket
21	Gas Valve (5 Req)
22	Silicone Rubber Gasket
23	Manifold Pipe
24	Filter w/Pilot
25	Silicone Rubber Gasket (For Key 26)
26	Mounting Screw (Inc`s 86)
27	Bracket-Oven Pilot
28	Pilot Only (Inc`s 90)
29	Tubing 3/8“ w/Orifice
30	Screw 10 – 32 x 1/4“
31	Air Shutter
32	Oven Burner
33	Support-Oven Burner
34	Mounting Screw 5/16-24
35	Gasket
36	WPL 316365
37	Oven Thermostat
38	Gasket (For 83)
39	Mounting Screw (2 Req. for 114)
40	Loxit Nut 3/16“
41	Support-Top Burner
42	Tubing 3/16“ -Oven Therm. To Oven Control Pilot
43	Griddle Burner
