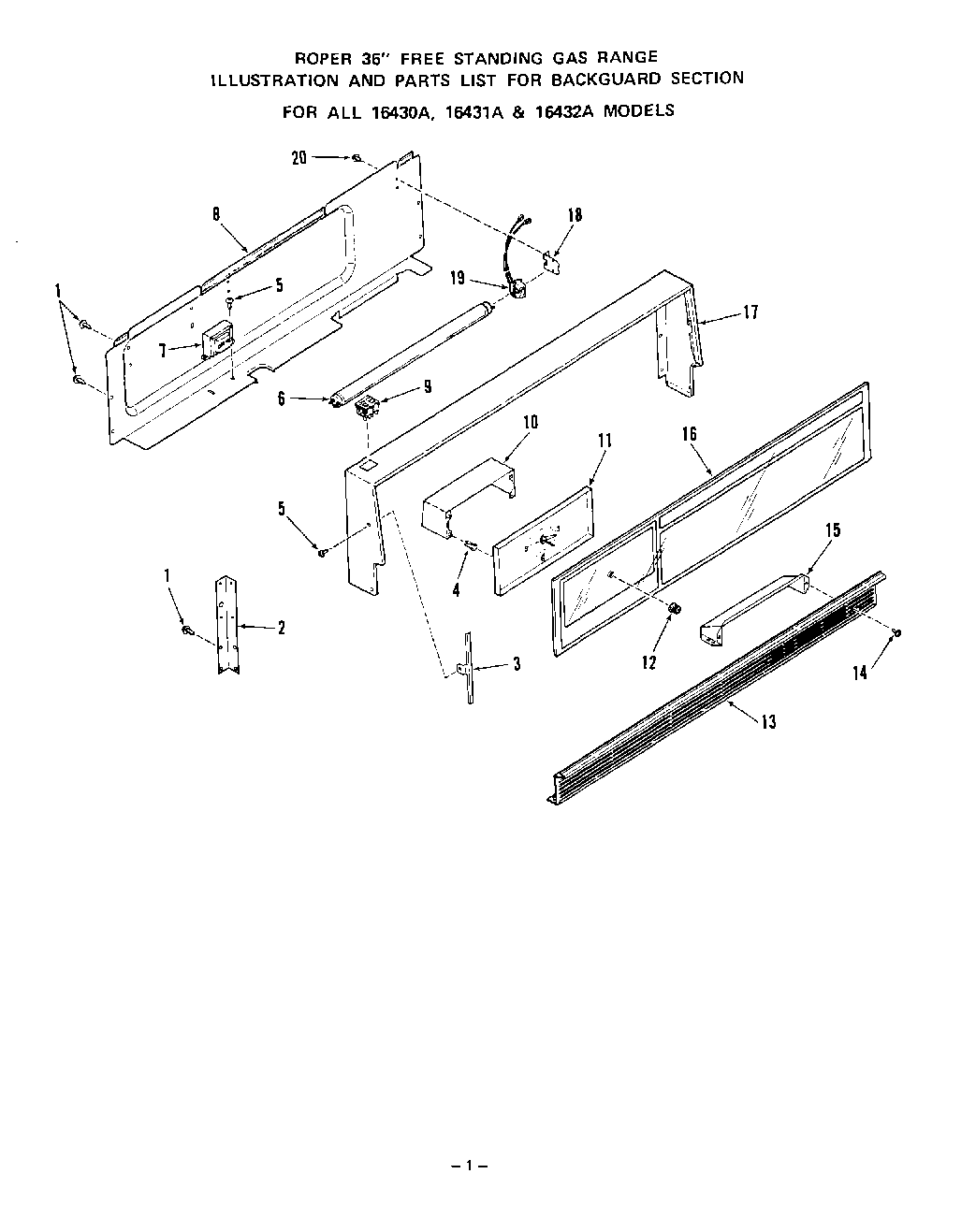

| 1 | WP112432 Whirlpool Nut Assembly |
| 2 | Support-Backguard (Lt. or Rt.) |
| 3 | End Trim- Top Lamp Glass (Lt. or Rt.) |
| 4 | Tubular Clip (4 Req.) |
| 5 | Screw 6-32x3/8`` |
| 6 | Fluorescent Lamp (15W-18``) |
| 7 | Ballast |
| 8 | Wire Cover-Backguard |
| 9 | Switch-Top & Oven Light |
| 10 | Mounting Bracket-Clock |
| 11 | Clock w/4 Hr.Timer |
| 12 | Knob-Clock |
| 13 | Bottom Front-Backguard |
| 14 | Screw 6-32 x 3/8`` |
| 15 | Scoop-Flue Deflector |
| 16 | Top Lamp Glass |
| 17 | Frame-Backguard |
| 18 | Bracket-Fluorescent Lamp (Left) |
| 18 | Bracket-Fluorescent Lamp (Right) |
| 19 | Holder-Fluorescent Lamp (Right) |
| 19 | Holder-Fluorescent Lamp (Left) |
| 20 | Screw 6-32x1/4`` |
