1653^1A 04 – BURNER
Written by
in

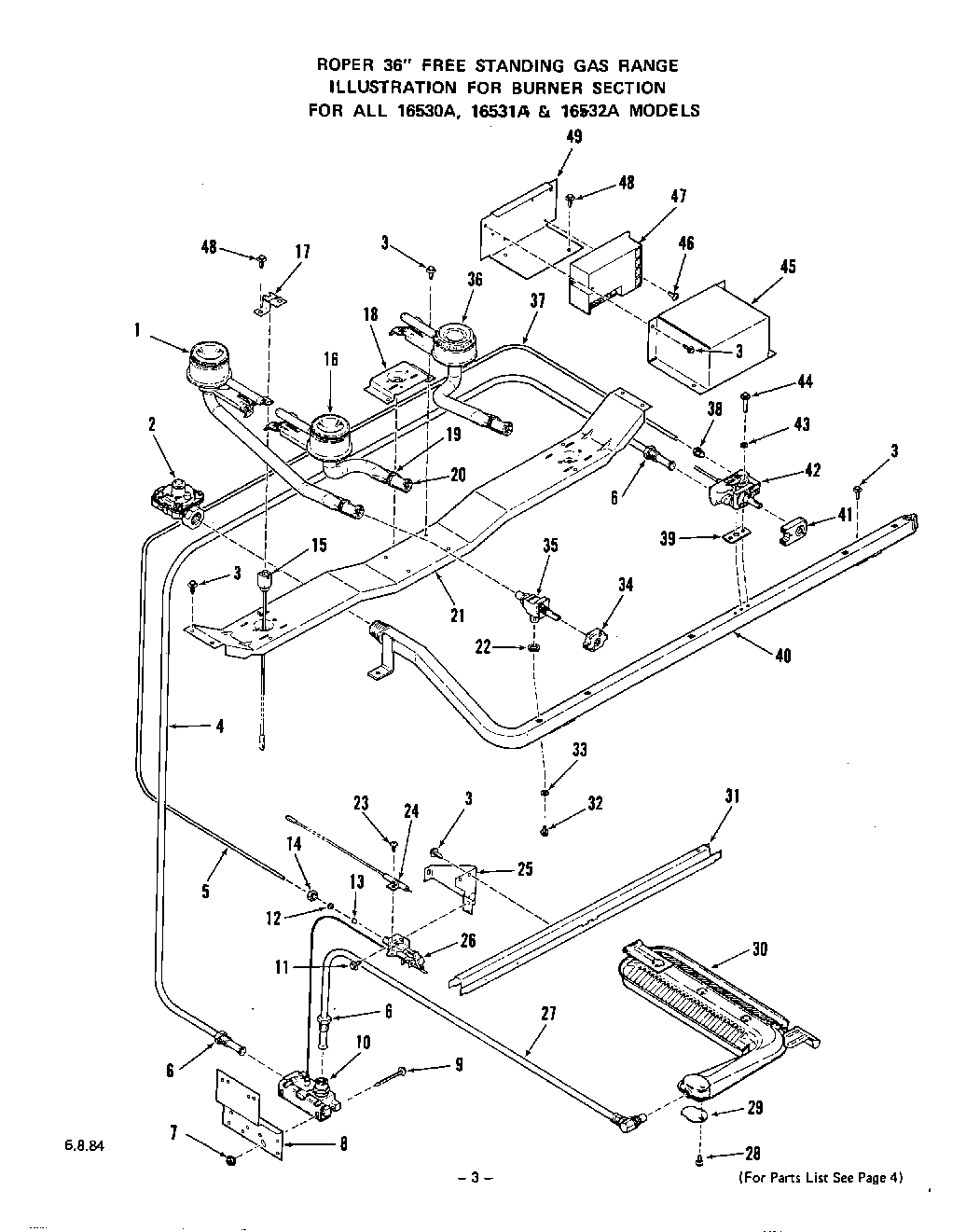

1653^1A 04 – BURNER
Products
Position
Product
1
Rear Top Burner-Lt. or Rt. (Inc`s. 18 & 19)
2
Pressure Regulator
3
WP112432 Whirlpool Nut Assembly
4
Tubing 3/8“
6
Inverted Nut 3/8“
7
Keps Nut 10-32
8
Bracket-Control Valve
9
Screw 10-32 x 2“
10
Oven Control Valve
11
Screw 10-32×17/32“
12
Compression Ball Sleeve 3/16“
13
Orifice Cup Only (For 94)
14
Compression Nut 3/16“
15
Panel, Side L.H. (Platinum Panel, Side R.H.)
15
Electrode-Spark Igniter (Griddle)
15
Right
16
Front Top Burner-Lt. or Rt. (Inc`s. 18 & 19)
17
panel, side l.h. (almond panel, side r.h.)
18
Bracket-Griddle Burner Pilot
19
Adjustment Screw-Air Shutter
20
Air Shutter
21
Support-Top Burner
22
Silicone Rubber Gasket
23
Screw 6-32 x 5/16“
24
Electrode-Spark Igniter
25
Bracket-Oven Pilot
26
Pilot Only (Inc`s 90)
27
Tubing 3/8“ w/Orifice
28
Screw 10 – 32 x 1/4“
29
Air Shutter
30
Oven Burner
31
Support-Oven Burner
32
Mounting Screw (Inc`s 86)
33
Silicone Rubber Gasket (For Key 26)
34
Switch-Gas Valve (4 Req)
35
Gas Valve (5 Req)
36
Griddle Burner
37
Tubing 3/16“ -Oven Therm. To Oven Control Pilot
38
Loxit Nut 3/16“
39
Silicone Rubber Gasket
40
Manifold Pipe
41
WPL 318432
42
WPL 318477
43
Gasket (For 83)
44
Mounting Screw (2 Req. for 114)
45
WPL 308312
46
Screw 6-32 x 1/2“
47
WPL 325126
48
WPL 316365
49
WPL 315405
←
