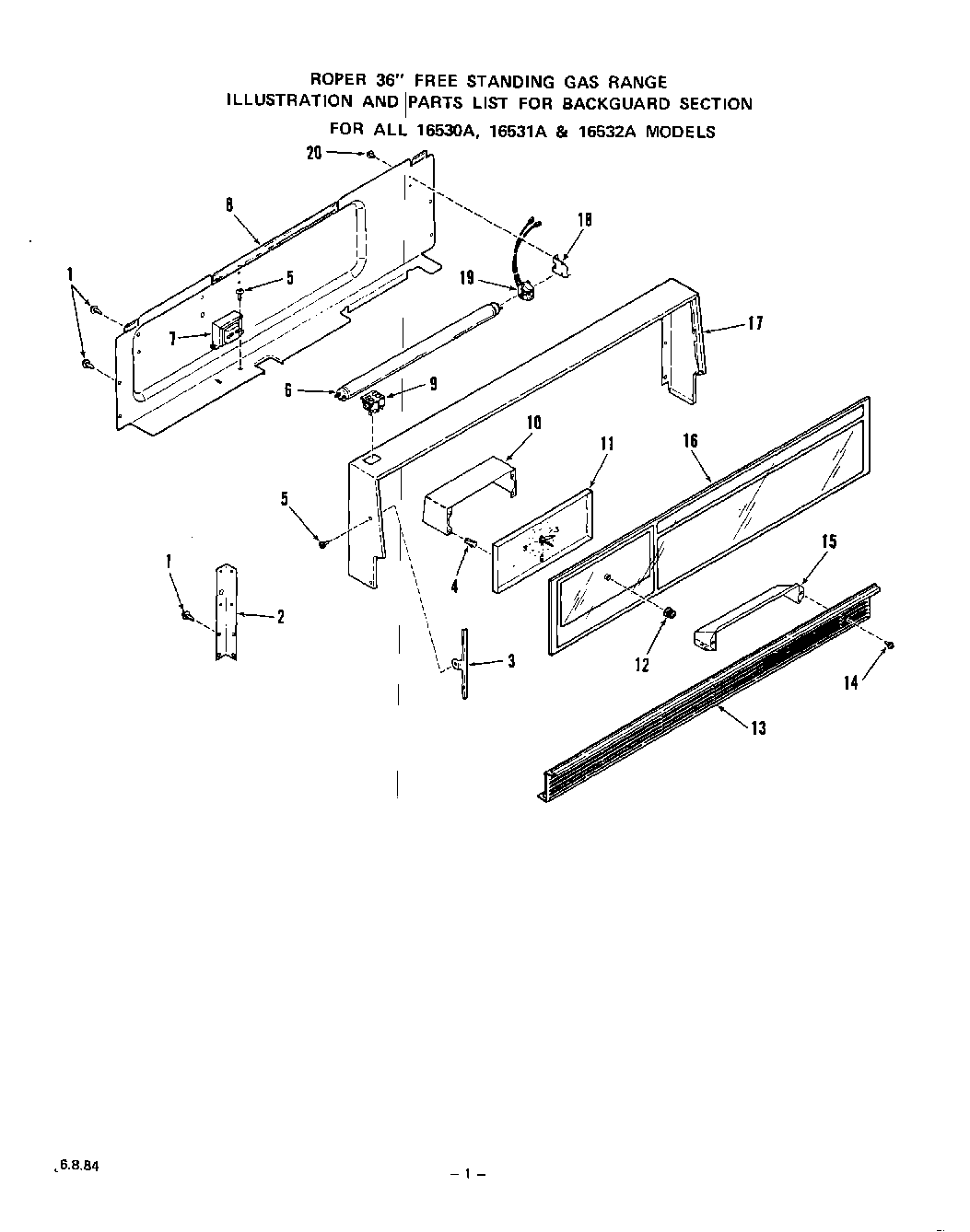

1653^2A 02 – BACKGUARD

Products

Position	Product
1	WP112432 Whirlpool Nut Assembly
2	Support-Backguard (Lt. or Rt.)
3	End Trim- Top Lamp Glass (Lt. or Rt.)
4	Tubular Clip (4 Req.)
5	Screw 6-32×3/8“
6	Fluorescent Lamp (15W-18“)
7	Ballast
8	Wire Cover-Backguard
9	Switch-Top & Oven Light
10	Mounting Bracket-Clock
11	Clock w/4 Hr.Timer
12	Knob-Clock
13	Bottom Front-Backguard
14	Screw 6-32 x 3/8“
15	Scoop-Flue Deflector
16	Top Lamp Glass
17	Frame-Backguard
18	Bracket-Fluorescent Lamp (Left)
18	Bracket-Fluorescent Lamp (Right)
19	Holder-Fluorescent Lamp (Right)
19	Holder-Fluorescent Lamp (Left)
20	Screw 6-32×1/4“
