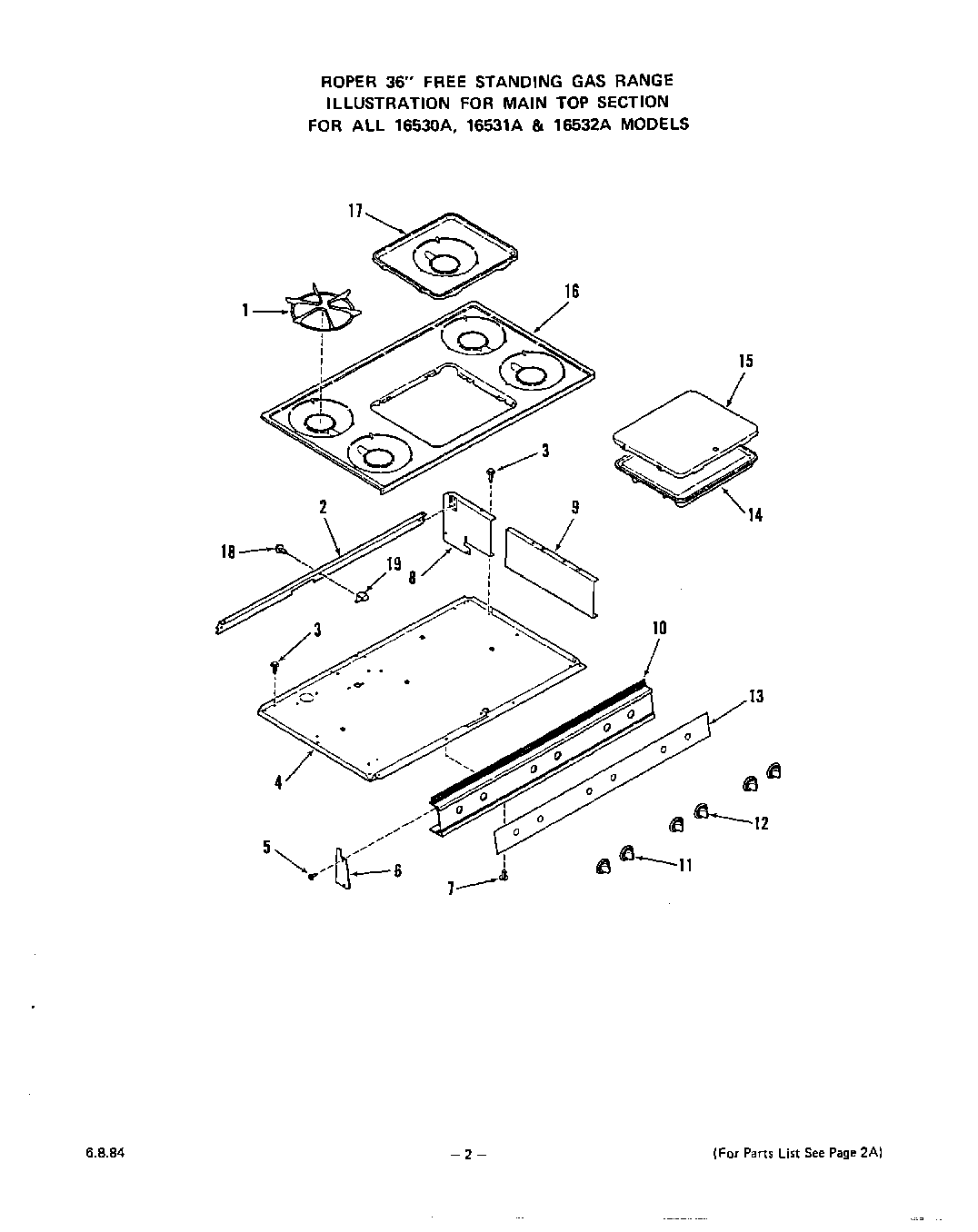

1653W0A 03 – MAIN TOP

Products

Position	Product
1	Top Grate (4 Required)
2	280251 Whirlpool Outer Tub OS3
2	Support-Rear Main Top (16331A,2A Models)
3	WP112432 Whirlpool Nut Assembly
4	Burner Box Bottom
5	Screw 6-32×3/8“
6	End Cap-Manifold Panel (Right)
6	End Cap-Manifold Panel (Left)
7	Screw 10-32×3/8“
8	Extension-Burner Box Bottom (Left)
8	Extension-Burner Box Bottom (Right)
9	Baffle-Burner Box Bottom (Right)
9	Baffle-Burner Box Bottom (Left)
10	Manifold Panel
11	Knob-Gas Valve (5 Req)
12	Knob-Oven Thermostat
13	Trim-Manifold Panel
14	Griddle Plate
15	Griddle Cover (Coffee 1633C1A, C2A)
15	Griddle Cover (Avocado 1633A1A, A2A)
15	Griddle Cover (Golden Wheat 1633H1A, H2A)
15	Griddle Cover (Almond 1633L1A, L2A)
15	Griddle Cover (White 1633W1A, W2A)
15	Griddle Cover (Almond 1633L0A)
15	Griddle Cover (Avocado 1633A0A)
15	Griddle Cover (White 1633W0A)
15	Griddle Cover (Coffee 1633C0A)
15	Griddle Cover (Golden Wheat 1633H0A)
16	Main Top (Golden Wheat)
16	Main Top (White)
16	Main Top (Coffee)
16	Main Top (Avocado)
16	Main Top (Almond)
17	WPL 325417
17	Aeration Pan-Griddle (Golden Whe
17	Aeration Pan-Griddle (Avocado)
17	Aeration Pan-Griddle (Coffee)
17	Aeration Pan-Griddle (White)
18	Screw 10-16×7/16“
19	WPL 327872
