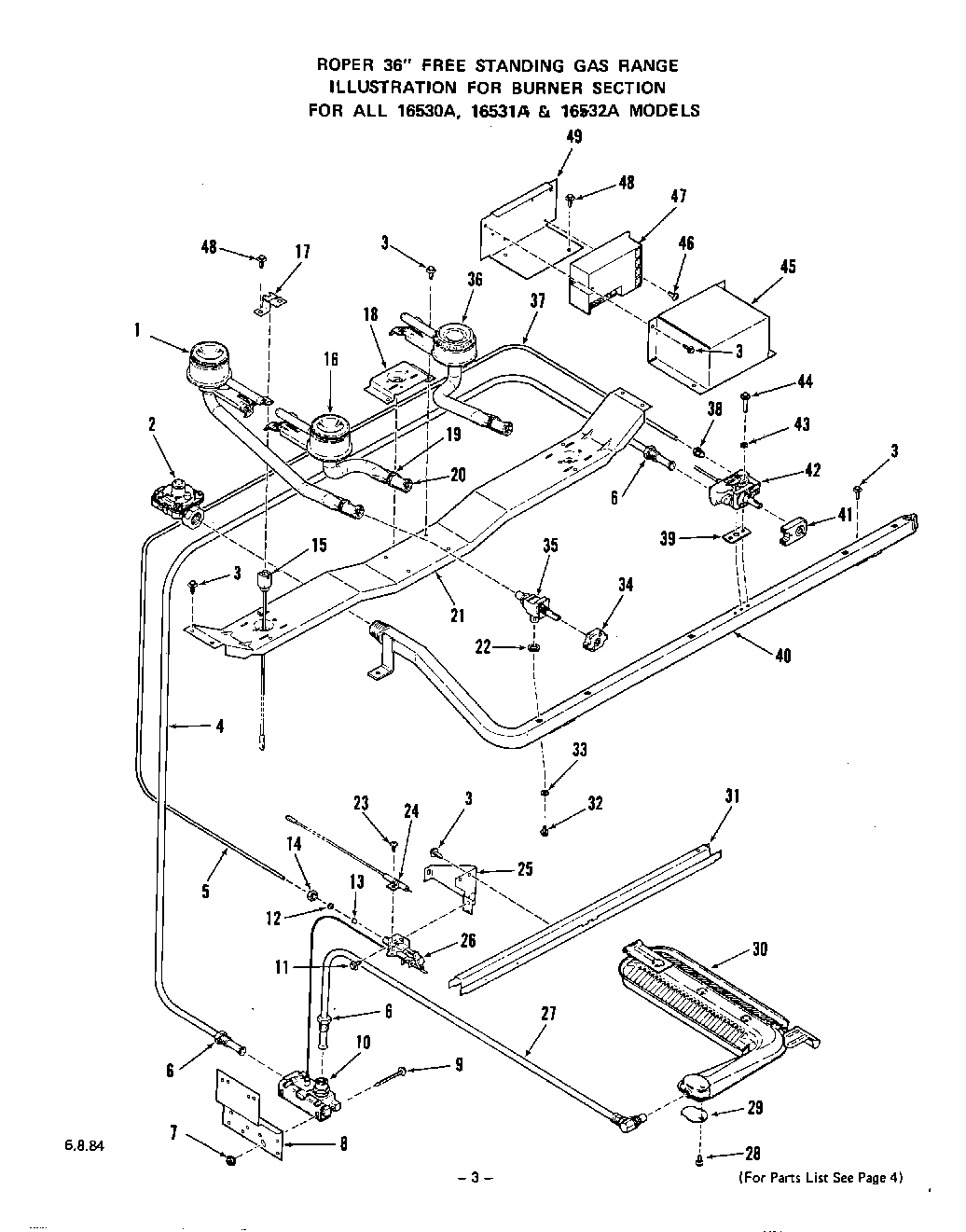

1653W0A 04 – BURNER

1653W0A 04 – BURNER

Written by

in

1653W0A 04 – BURNER

Products

PositionProduct
1Rear Top Burner-Lt. or Rt. (Inc`s. 18 & 19)
2Pressure Regulator
3WP112432 Whirlpool Nut Assembly
4Tubing 3/8“
6Inverted Nut 3/8“
7Keps Nut 10-32
8Bracket-Control Valve
9Screw 10-32 x 2“
10Oven Control Valve
11Screw 10-32×17/32“
12Compression Ball Sleeve 3/16“
13Orifice Cup Only (For 94)
14Compression Nut 3/16“
15Panel, Side L.H. (Platinum Panel, Side R.H.)
15Electrode-Spark Igniter (Griddle)
15Right
16Front Top Burner-Lt. or Rt. (Inc`s. 18 & 19)
17panel, side l.h. (almond panel, side r.h.)
18Bracket-Griddle Burner Pilot
19Adjustment Screw-Air Shutter
20Air Shutter
21Support-Top Burner
22Silicone Rubber Gasket
23Screw 6-32 x 5/16“
24Electrode-Spark Igniter
25Bracket-Oven Pilot
26Pilot Only (Inc`s 90)
27Tubing 3/8“ w/Orifice
28Screw 10 – 32 x 1/4“
29Air Shutter
30Oven Burner
31Support-Oven Burner
32Mounting Screw (Inc`s 86)
33Silicone Rubber Gasket (For Key 26)
34Switch-Gas Valve (4 Req)
35Gas Valve (5 Req)
36Griddle Burner
37Tubing 3/16“ -Oven Therm. To Oven Control Pilot
38Loxit Nut 3/16“
39Silicone Rubber Gasket
40Manifold Pipe
41WPL 318432
42WPL 318477
43Gasket (For 83)
44Mounting Screw (2 Req. for 114)
45WPL 308312
46Screw 6-32 x 1/2“
47WPL 325126
48WPL 316365
49WPL 315405
