1653W0A 05 – BODY

Products

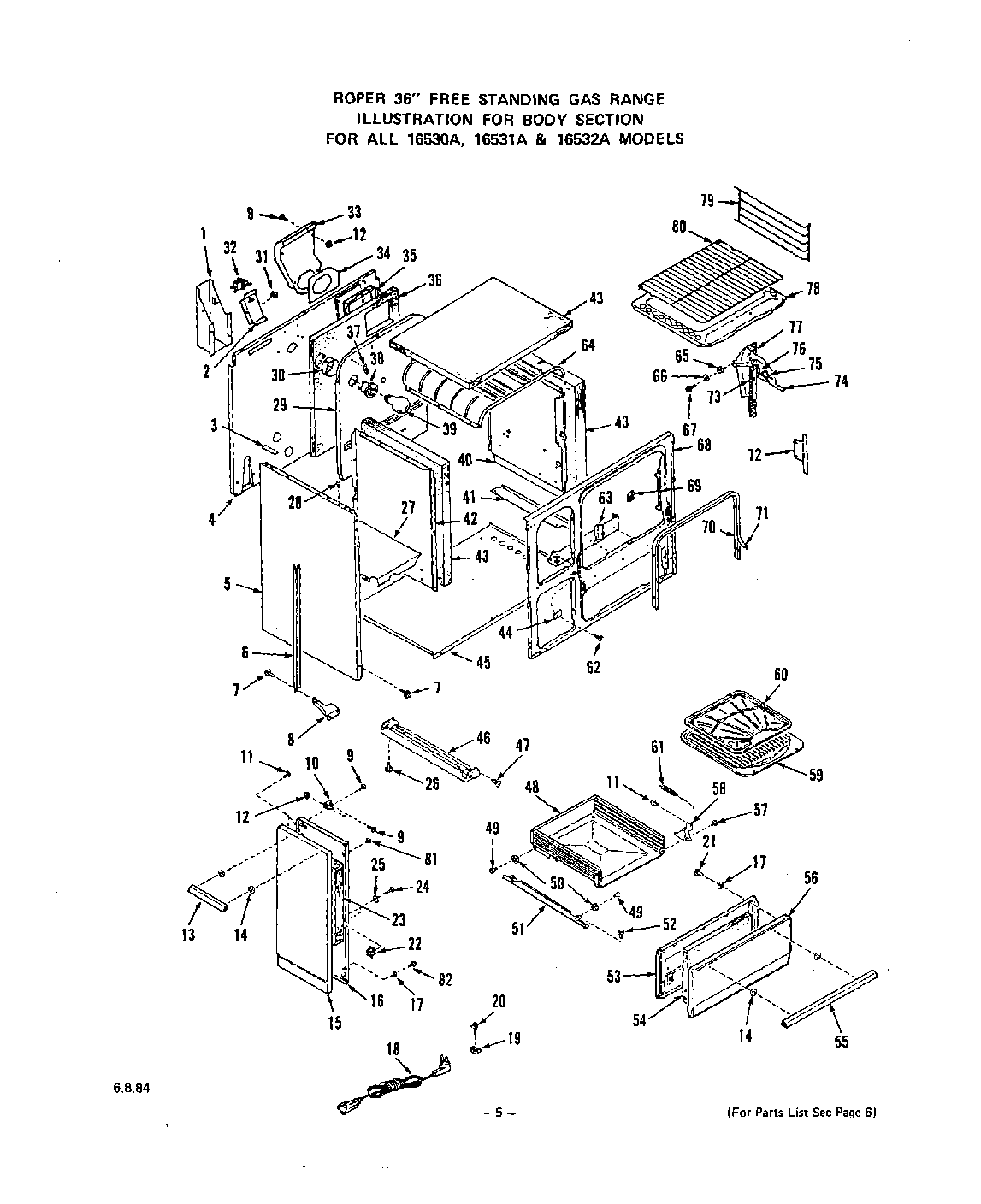

Position	Product
1	Wire Cover
2	Wire Cover Front
3	Spacer-Main Top
4	Main Back
5	Body Side -Lt. or Rt. (White)
5	Body Side -Lt. or Rt. (Coffee)
5	Body Side -Lt. or Rt. (Avocado)
5	Body Side -Lt. or Rt. (Golden Wheat)
5	Body Side -Lt. or Rt. (Almond)
6	Stiffener – Body Side (Lt. or Rt.)
7	Screw 10-32×17/32“
8	Lower Support – Body Side (Left)
8	Lower Support – Body Side (Right)
9	Screw 10-24×1/2“
10	Hinge-Compartment Door (2 Req)
11	Screw 10 – 32 x 1/2“
12	Keps Nut 10-24
13	Handle-Compartment Door
14	Spacer
15	Front Panel-Compartment Door (White 1633W1A, W2A)
15	Front Panel-Compartment Door (Avocado 1633A1A, A2A)
15	Front Panel-Compartment Door (Golden Wheat 1633H1A, H2A)
15	Front Panel-Compartment Door (Golden Wheat 1633H0A)
15	Front Panel-Compartment Door (Coffee 1633C1A, C2A)
15	Front Panel-Compartment Door (Almond 1633L1A, L2A)
15	Front Panel-Compartment Door (Avocado 1633A0A)
15	Front Panel-Compartment Door (White 1633W0A)
15	Front Panel-Compartment Door (Coffee 1633C0A)
15	Front Panel-Compartment Door (Almond 1633L0A)
16	Lining-Compartment Door (16330A Models)
16	Lining-Compartment Door (16331A,2A
17	WPL 21067
18	Range Service Cord
19	Clip
20	WPL 295850
22	WPL 88465
23	WPL 325710
24	Screw 6-32 x 5/16“
25	WPL 25741
26	Leg Leveler (4 Required)
27	WPL 325246
28	WPL 301769
29	WPL 325076
30	WPL 233361
31	Clip
32	Disconnect
33	WPL 300987
34	WPL 102007
35	WPL 102015
36	WPL 102202
37	Thermostat Bulb Clip (2 Required)
38	Holder-Oven Lamp Bulb
39	Oven Lamp Bulb
40	WPL 293657
40	WPL 293658
41	WPL 68654
42	WPL 327109
43	WPL 102199
44	WPL 88462
45	WPL 328514
46	WPL 312908
47	WPL 71206
48	Broiler Drawer (Inc`s. 136 & 140)
49	Shoulder Rivet
50	Roller
51	WPL 97820
51	WPL 97819
52	WP112432 Whirlpool Nut Assembly
53	WPL 325072
54	WPL 87579
55	WPL 309872
56	WPL 325068
56	WPL 325069
56	WPL 325066
56	WPL 328500
56	WPL 328501
56	WPL 325065
56	WPL 328504
56	WPL 328503
56	WPL 328502
56	WPL 325067
57	Shoulder Rivet
58	Left
58	Right
59	Broiler Pan
60	Broiler Pan Grid
61	Spring – Broiler Door (Rt or Lt)
62	WPL 88463
63	WPL 325197
64	WPL 293659
65	WPL 69459
66	WPL 323451
67	WPL 69457
68	WPL 325142
69	WPL 112938
70	WPL 87936
71	WPL 294564
72	WPL 87820
73	WPL 327300
74	WPL 230980
74	WPL 230981
75	WPL 97697
75	WPL 97696
76	WPL 324047
76	WPL 324048
77	WPL 68629
77	WPL 69925
78	WPL 300767
79	WPL 306148
80	WPL 305751
81	WPL 286683
82	Screw 10-32 x 1/2“
