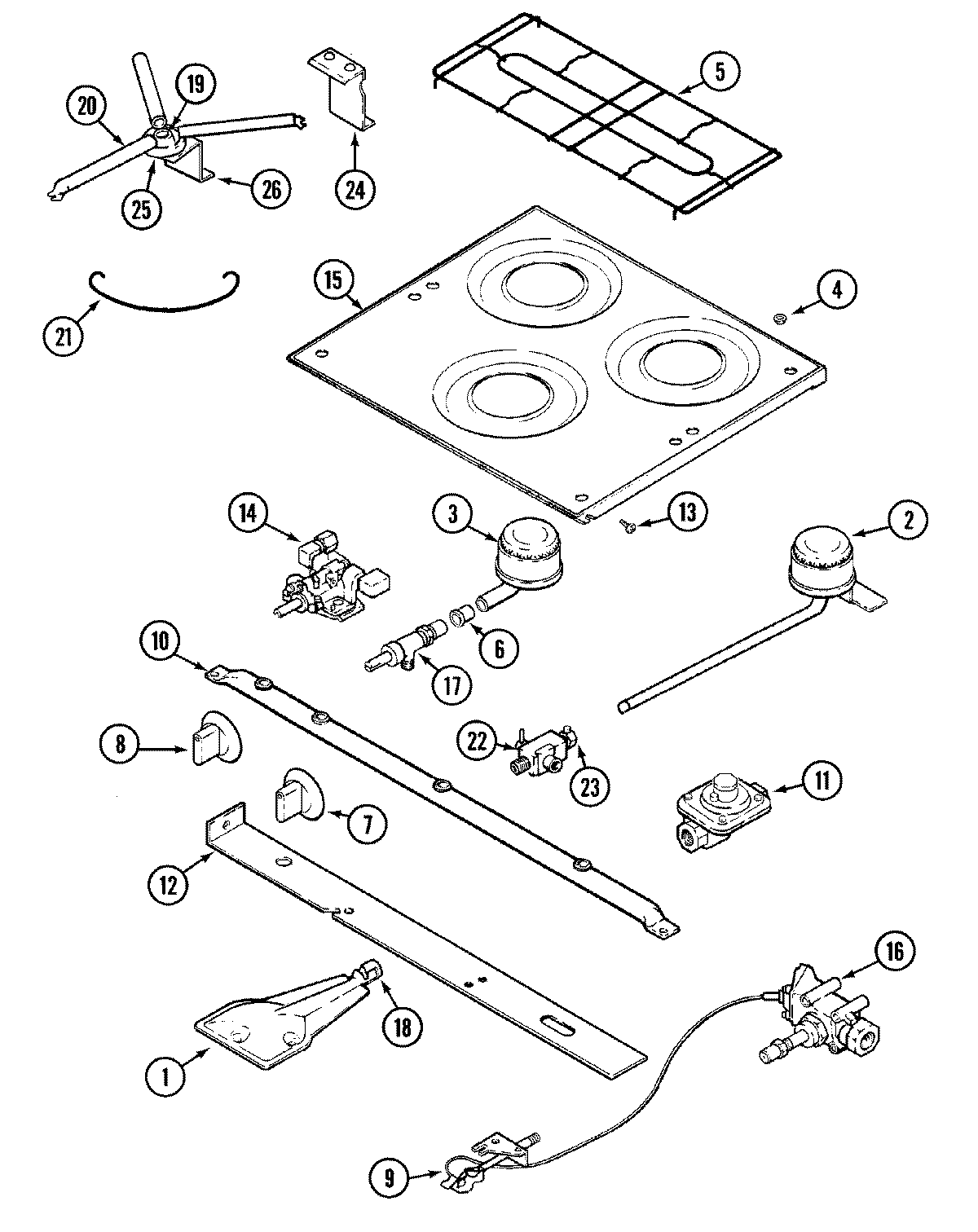

16RA-4T 02 – MAIN TOP & BURNER ASSEMBLY
Written by
in
16RA-4T 02 – MAIN TOP & BURNER ASSEMBLY
Products
Position
Product
1
MAY 3403W025-45
2
MAY 7505P153-60
2
MAY 7505P154-60
3
MAY 7505P152-60
3
MAY 7505P151-60
4
MAY Y8007P02060
5
MAY 7518P012-60
6
MAY 7214P015-60
7
MAY 7733P072-60
8
MAY 7731P067-60
8
MAY 7731P107-60
9
MAY 7505P202-60
10
MAY 7513P095-60
11
MAY 7510P043-60
11
MAY 7507P083-60
12
MAY 3807F320-45
12
MAY 74001834
13
MAY 8003P008-60
14
MAY 7515P031-60
14
MAY 7515P037-60
14
MAY 1555280K
14
MAY 3414F080-44
14
MAY 1555222
14
MAY 3414F078-44
15
MAY 2001F108-84
16
MAY 1555261K
16
MAY 1555279
16
MAY 7501P121-60
17
MAY 7502P181-60
18
MAY 3411F003-34
19
MAY 8030P002-60
19
MAY 7506P066-60
20
MAY 7506P067-60
21
MAY 7112P068-60
22
MAY 7506P096-60
23
MAY 7507P046-60
24
MAY 3604F127-44
25
MAY 7505P179-60
26
MAY 3807F322-80
27
MAY 8112P107-60
←
